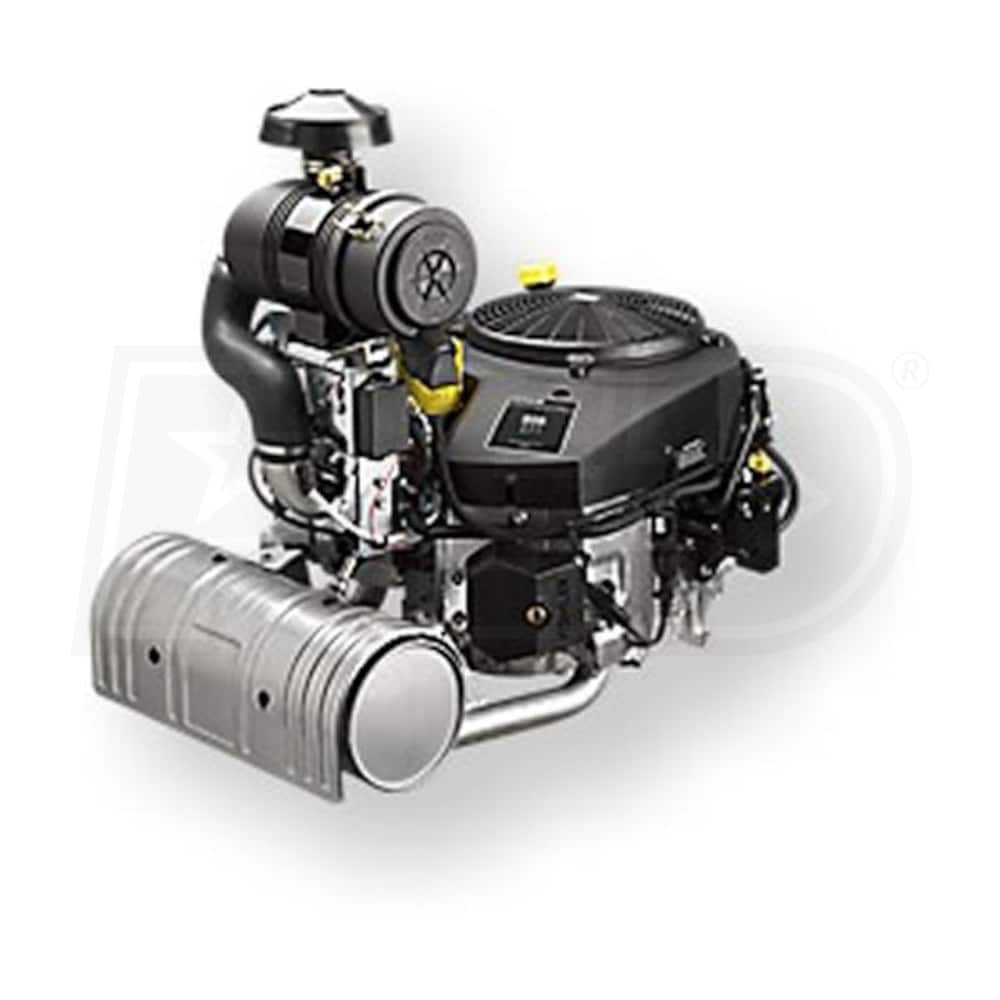

Kohler Command Pro EFI ECV940 999cc 35 Gross HP Electric Start Vertical Engine, 1-1/8" x 4.36" Crankshaft
Model: PA-ECV940-3015
+
Share This Product
-
Product Description
-
Reviews
-
How-To Articles
-
Manuals
Product Description
+−
Features
Features
- Model# ECV940-3015, 1-1/8" x 4.36" Crankshaft
- For use on Exmark, Superceded by PA-ECV940-3011
- KOHLER Command PRO EFI ECV940 V-Twin Cylinder Air-Cooled 4-Cycle Vertical Gas Engine
- Produces 50.9 lbs./ft. peak torque- Power levels are stated gross torque per SAE J2014
- EFI (Electronic Fuel Injected) For Increased Efficiency
- Capable of saving up to 25% in fuel over similar-size carbureted engines
- Advanced oxygen sensor analyzes the exhaust's air/fuel mixture and will adjust as needed
- On top of the savings, you'll also refuel less, increasing your overall efficiency
- Easy Dependable Starts
- Optimized fuel injector placement and intelligent sensor pack deliver fuel when there is a demand for power
- No-choke starting even in cold weather, when engine is hot or after long periods of storage
- Less downtime and less maintenance for the life of the engine
- No messy, gummed-up carburetor to clean or adjust
- Top Mounted, Quick Change Oil Filter
- Easy to reach- access to entire cylinder for thorough cleaning
- Less mess- most of oil is drained before removal
- Only one tool needed to remove cylinder cover
- Overhead Valve Technology
- Produces more power, improved fuel economy/cooling, and reduces oil consumption
- Provides greater volumetric efficiency and higher compression ratio
- Virtually no carbon buildup, reducing overall maintenance costs
- Fully Oil Pressurized Hydraulic Valve Lifters
- Push rods stay in constant contact with rocker arms
- Valve train is maintenance free- no adjustments needed
- KOHLER Command PRO® Electronic Ignition System
- Generates a stronger spark at low cranking speed
- Variable Speed, Mechanical Governor
- Smooth performance, regardless of application or fluctuating demands for power
Specifications
Engine
Engine Series
Command Pro EFI
Engine Style
Vertical
Engine Type
4-Cycle OHV
Cylinders
2
Cooling System
Air
Dry Weight
127 Lbs
CC
999 CCs
HP
35 HP
Max Torque
50.9 Lbs
Cylinder Bore Type
Cast Iron
Bore
3.5 Inches
Stroke
3.1 Inches
Compression Ratio
8.8:1
Systems
Starting System
12-Volt Key Start
Ignition System
Electronic Spark
Lubrication
Lubrication
Pressurized
Oil Capacity
67.2 oz
Intake/Exhaust
Fuel
Gas
Carburetor
None, EFI (Electronic Fuel Injection)
Muffler
Not Included
Air Cleaner
Mult-Stage Canister
Fuel Tank
Not Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
1-1/8 x 4.36 Inch
Crankshaft Type
Straight
Crankshaft Diameter
1-1/8"
Crankshaft Length
4.36"
Crankshaft End Tapped Size
7/16"-20
Crankshaft Keyway Width
1/4 Inch
Overview
Weight
127 Pounds
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Length
25.2 Inches
Product Width
19 Inches
Product Height
18.5 Inches
Dimensions
25.2 x 19 x 18.5
Features
Features
- Model# ECV940-3015, 1-1/8" x 4.36" Crankshaft
- For use on Exmark, Superceded by PA-ECV940-3011
- KOHLER Command PRO EFI ECV940 V-Twin Cylinder Air-Cooled 4-Cycle Vertical Gas Engine
- Produces 50.9 lbs./ft. peak torque- Power levels are stated gross torque per SAE J2014
- EFI (Electronic Fuel Injected) For Increased Efficiency
- Capable of saving up to 25% in fuel over similar-size carbureted engines
- Advanced oxygen sensor analyzes the exhaust's air/fuel mixture and will adjust as needed
- On top of the savings, you'll also refuel less, increasing your overall efficiency
- Easy Dependable Starts
- Optimized fuel injector placement and intelligent sensor pack deliver fuel when there is a demand for power
- No-choke starting even in cold weather, when engine is hot or after long periods of storage
- Less downtime and less maintenance for the life of the engine
- No messy, gummed-up carburetor to clean or adjust
- Top Mounted, Quick Change Oil Filter
- Easy to reach- access to entire cylinder for thorough cleaning
- Less mess- most of oil is drained before removal
- Only one tool needed to remove cylinder cover
- Overhead Valve Technology
- Produces more power, improved fuel economy/cooling, and reduces oil consumption
- Provides greater volumetric efficiency and higher compression ratio
- Virtually no carbon buildup, reducing overall maintenance costs
- Fully Oil Pressurized Hydraulic Valve Lifters
- Push rods stay in constant contact with rocker arms
- Valve train is maintenance free- no adjustments needed
- KOHLER Command PRO® Electronic Ignition System
- Generates a stronger spark at low cranking speed
- Variable Speed, Mechanical Governor
- Smooth performance, regardless of application or fluctuating demands for power
Specifications
Engine
Engine Series
Command Pro EFI
Engine Style
Vertical
Engine Type
4-Cycle OHV
Cylinders
2
Cooling System
Air
Dry Weight
127 Lbs
CC
999 CCs
HP
35 HP
Max Torque
50.9 Lbs
Cylinder Bore Type
Cast Iron
Bore
3.5 Inches
Stroke
3.1 Inches
Compression Ratio
8.8:1
Systems
Starting System
12-Volt Key Start
Ignition System
Electronic Spark
Lubrication
Lubrication
Pressurized
Oil Capacity
67.2 oz
Intake/Exhaust
Fuel
Gas
Carburetor
None, EFI (Electronic Fuel Injection)
Muffler
Not Included
Air Cleaner
Mult-Stage Canister
Fuel Tank
Not Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
1-1/8 x 4.36 Inch
Crankshaft Type
Straight
Crankshaft Diameter
1-1/8"
Crankshaft Length
4.36"
Crankshaft End Tapped Size
7/16"-20
Crankshaft Keyway Width
1/4 Inch
Overview
Weight
127 Pounds
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Length
25.2 Inches
Product Width
19 Inches
Product Height
18.5 Inches
Dimensions
25.2 x 19 x 18.5
Product Specs
+−
Specifications
Engine
Engine Series
Command Pro EFI
Engine Style
Vertical
Engine Type
4-Cycle OHV
Cylinders
2
Cooling System
Air
Dry Weight
127 Lbs
CC
999 CCs
HP
35 HP
Max Torque
50.9 Lbs
Cylinder Bore Type
Cast Iron
Bore
3.5 Inches
Stroke
3.1 Inches
Compression Ratio
8.8:1
Systems
Starting System
12-Volt Key Start
Ignition System
Electronic Spark
Lubrication
Lubrication
Pressurized
Oil Capacity
67.2 oz
Intake/Exhaust
Fuel
Gas
Carburetor
None, EFI (Electronic Fuel Injection)
Muffler
Not Included
Air Cleaner
Mult-Stage Canister
Fuel Tank
Not Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
1-1/8 x 4.36 Inch
Crankshaft Type
Straight
Crankshaft Diameter
1-1/8"
Crankshaft Length
4.36"
Crankshaft End Tapped Size
7/16"-20
Crankshaft Keyway Width
1/4 Inch
Overview
Weight
127 Pounds
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Length
25.2 Inches
Product Width
19 Inches
Product Height
18.5 Inches
Dimensions
25.2 x 19 x 18.5
