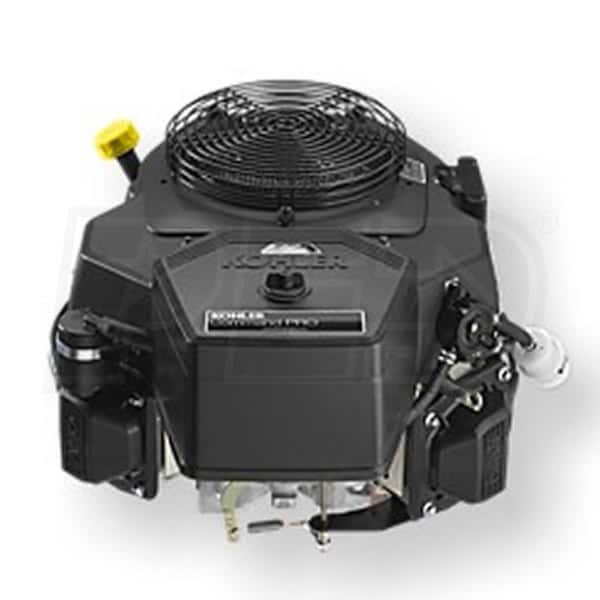

Kohler Command Pro CV740 725cc 25 Gross HP Electric Start Vertical Engine, 1-1/8" x 4-5/16" Crankshaft, Tapped 7/16"-20

Model:

PA-CV740-0035

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Kohler Command Pro CV740 725cc 25 Gross HP Electric Start Vertical Engine, 1-1/8
Kohler Command Pro CV740 725cc 25 Gross HP Electric Start Vertical Engine, 1-1/8" x 4-5/16" Crankshaft, Tapped 7/16"-20
Model: PA-CV740-0035
Product Discontinued
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Features

  • Model# CV740-0035, 1-1/8" x 4-5/16" Crankshaft, Tapped 7/16"-20
  • For use on Ferris
  • KOHLER Command PRO CV740 V-Twin Cylinder Air-Cooled 4-Cycle Vertical Gas Engine
  • Produces 39.2 lbs./ft. peak torque- Power levels are stated gross torque per SAE J2011
  • Top Mounted, Quick Change Oil Filter
  • Easy to reach- access to entire cylinder for thorough cleaning
  • Only one tool needed to remove cylinder cover
  • Less mess- most of oil is drained before removal
  • Overhead Valve Technology
  • Provides greater volumetric efficiency and higher compression ratio
  • Produces more power, improved fuel economy/cooling, and reduces oil consumption
  • Virtually no carbon buildup, reducing overall maintenance costs
  • Fully Oil Pressurized Hydraulic Valve Lifters
  • Push rods stay in constant contact with rocker arms
  • Valve train is maintenance free- no adjustments needed
  • Variable Speed, Mechanical Governor
  • Smooth performance, regardless of application or fluctuating demands for power
  • KOHLER Command PRO® Electronic Ignition System
  • Generates a stronger spark at low cranking speed
  • High-Efficiency Fan and Screen
  • Modulated cooling fan keeps engine cooler
  • Integrated Oil Cooler
  • Spin on, full-flow oil filter keeps debris and particles out of engine
  • 12V Electric Starter & 15A Regulated Charging System
  • **Engine May Differ From Appearance Of Photo**
California residents see
WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm..
For more information go to: www.p65Warnings.ca.gov

Specifications

PA-CV740-0035
specs product image PID-68853
Engine
Engine Series
Command Pro
Engine Style
Vertical
Engine Type
4-Cycle OHV
Cylinders
2
Cooling System
Air
Dry Weight
94 Lbs
CC
725 CCs
HP
25 HP
Max Torque
39.2 Lbs
Cylinder Bore Type
Cast Iron
Bore
3.3 Inches
Stroke
2.6 Inches
Compression Ratio
9.0:1
CARB
Yes
Systems
Charging System
15 Amps
Starting System
12-Volt Key Start
Ignition System
Electronic Spark
Lubrication
Lubrication
Pressurized
Oil Filter
Yes
Oil Capacity
64 oz
Intake/Exhaust
Fuel
Gas
Muffler
Not Included
Air Cleaner
Mult-Stage Canister
Fuel Tank
Not Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
1-1/8 x 4-5/16 Inch
Crankshaft Type
Straight
Crankshaft Diameter
1-1/8"
Crankshaft Length
4-5/16"
Crankshaft End Tapped Size
7/16"-20
Crankshaft Keyway Width
1/4 Inch
Overview
Weight
94 Pounds
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Length
17.8 Inches
Product Width
17.7 Inches
Product Height
14.1 Inches
Dimensions
17.8 x 17.7 x 14.1
