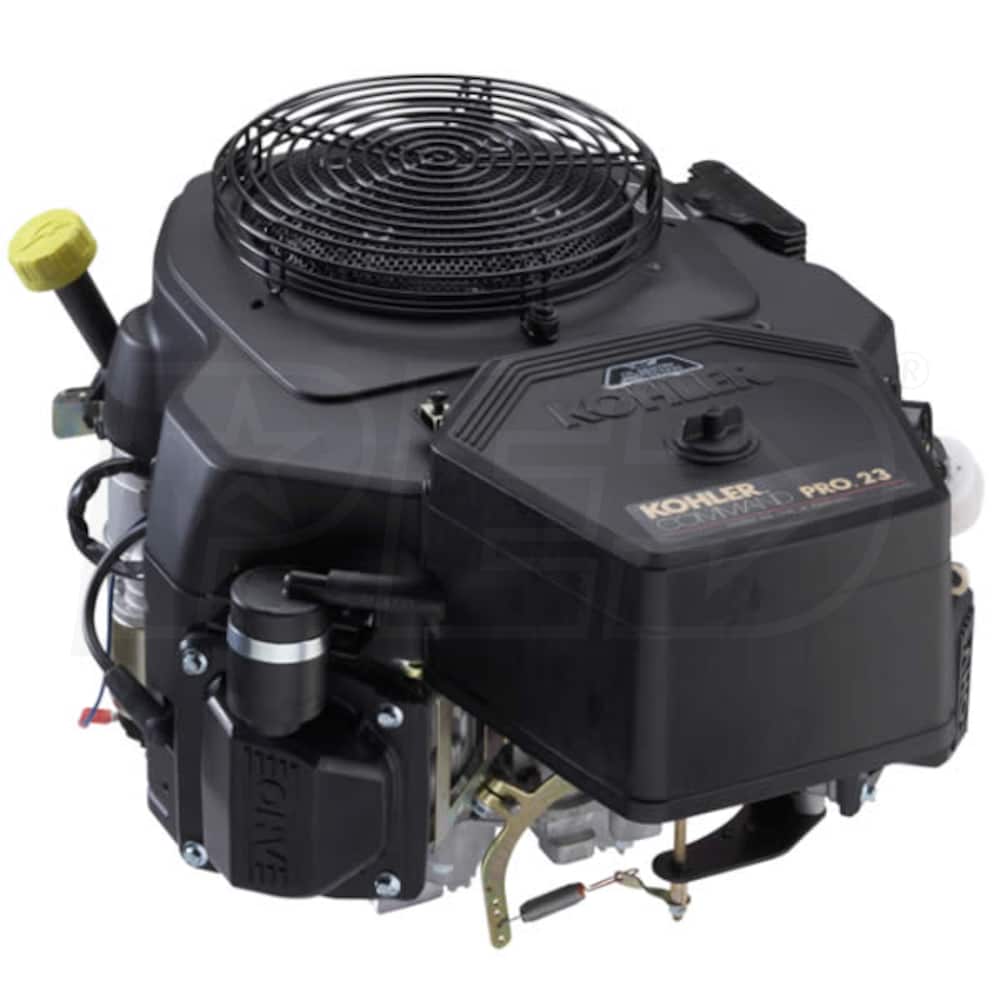

Kohler Command Pro CV680 674cc Electric Start Vertical Engine, 1" x 4" Crankshaft, Tapped 7/16"-20

Kohler Command Pro CV680 674cc Electric Start Vertical Engine, 1" x 4" Crankshaft, Tapped 7/16"-20
Our Price
Compare Prices
Shipping Info
Model: PA-CV680-3036
$1,759.99
Factory-Direct
Ships in 2-5 Business Days
Factory items ship direct from the manufacturer.
Shipping times vary.
Free Shipping
Free Shipping$1,759.99Buy Now
$1,759.99Visit Site
Factory-Direct
Ships in 2-5 Business Days
Free Shipping
Free Shipping
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Product Q&A
  • How-To Articles
  • Manuals
Product Description
+

Features
Features
  • Model# CV680-3036, 1" x 3.84" Crankshaft, Tapped 7/16"-20
  • For use on Scag
  • KOHLER Command PRO CV680 V-Twin Cylinder Air-Cooled 4-Cycle Vertical Gas Engine
  • Produces 35.8 lbs./ft. peak torque- Power levels are stated gross torque per SAE J2002
  • Fully Oil Pressurized Hydraulic Valve Lifters
  • Push rods stay in constant contact with rocker arms
  • Valve train is maintenance free- no adjustments needed
  • Overhead Valve Technology
  • Provides greater volumetric efficiency and higher compression ratio
  • Produces more power, improved fuel economy/cooling, and reduces oil consumption
  • Virtually no carbon buildup, reducing overall maintenance costs
  • Variable Speed, Mechanical Governor
  • Smooth performance, regardless of application or fluctuating demands for power
  • Large Capacity In-Line Fuel Filter And Dual Element Air Filter
  • Extra protection against dirt particles that can clog fuel lines
  • Maximizes engine power and life
  • Smart-Choke™ Carburetor
  • Eliminates need to choke and prime engine
  • KOHLER Command PRO® Electronic Ignition System
  • Generates a stronger spark at low cranking speed
  • Automatic Compression Release (ACR)
  • Allows compression to escape during cranking to reduce pull force
  • High-Efficiency Fan and Screen
  • Modulated cooling fan keeps engine cooler
  • Integrated Oil Cooler
  • Spin on, full-flow oil filter keeps debris and particles out of engine
  • 12V Electric Starter & 15A Regulated Charging System
  • Pulse Fuel Pump- Gas Tank Not Included
  • Muffler With Heat Shield Included
Specifications
Engine
Engine Series
Command Pro
Engine Style
Vertical
Cylinders
2
Engine Type
4-Cycle OHV
Cooling System
Air
Dry Weight
107 Lbs
CC
674 CCs
Max Torque
35.8 Lbs
Cylinder Bore Type
Cast Iron
Bore
3.03 Inches
Stroke
2.64 Inches
Compression Ratio
8.5:1
CARB
Yes
Systems
Charging System
15 Amps
Starting System
12-Volt Key Start
Ignition System
Electronic Spark
Lubrication
Lubrication
Pressurized
Oil Filter
Yes
Oil Capacity
64 oz
Intake/Exhaust
Fuel
Gas
Muffler
Included
Air Cleaner
Dual Element
Fuel Tank
Not Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
1" x 3.84" Inch
Crankshaft Type
Straight
Crankshaft Diameter
1"
Crankshaft Length
3.84"
Crankshaft End Tapped Size
7/16"-20
Crankshaft Keyway Width
1/4 Inch
Overview
Weight
107 Pounds
Product Length
21.2 Inches
Product Width
17.7 Inches
Product Height
14.3 Inches
Dimensions
21.2 x 17.7 x 14.3
Consumer Warranty
3 Years
Commercial Warranty
3 Years
