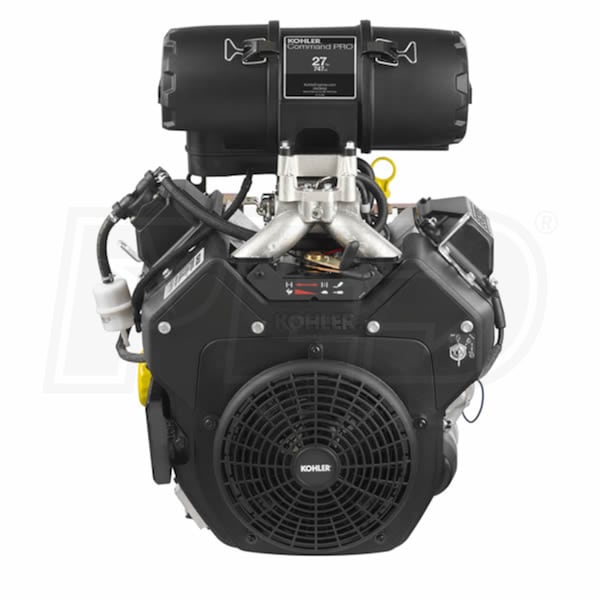

Kohler Command Pro CH752 747cc 27 Gross HP Electric Start Horizontal Engine w/ Control Box, 1-7/16" x 4.453" Crankshaft, Tapped 5/8"-18
Model:
PA-CH752-3102
+
Share This Product
Features
- Model# CH752-3102, 1-7/16" x 4.453" Crankshaft, Tapped 5/8"-18
- Utility / General applications like mowers, compressors & grain augers
- KOHLER Command PRO CH752 V-Twin Cylinder Air-Cooled 4-Cycle Horizontal Gas Engine
- Produces 42.2 lbs./ft. peak torque- Power levels are stated gross torque per SAE J2007
- Top Mounted, Quick Change Oil Filter
- Easy to reach- access to entire cylinder for thorough cleaning
- Only one tool needed to remove cylinder cover
- Less mess- most of oil is drained before removal
- Overhead Valve Technology
- Provides greater volumetric efficiency and higher compression ratio
- Produces more power, improved fuel economy/cooling, and reduces oil consumption
- Virtually no carbon buildup, reducing overall maintenance costs
- Fully Oil Pressurized Hydraulic Valve Lifters
- Push rods stay in constant contact with rocker arms
- Valve train is maintenance free- no adjustments needed
- Variable Speed, Mechanical Governor
- Smooth performance, regardless of application or fluctuating demands for power
- KOHLER Command PRO
- Generates a stronger spark at low cranking speed
- High-Efficiency Fan and Screen
- Modulated cooling fan keeps engine cooler
- Integrated Oil Cooler
- Spin on, full-flow oil filter keeps debris and particles out of engine
- 12V Electric Starter & 15A Regulated Charging System
- Mechanical Fuel Pump- Gas Tank Not Included
- Control Box Included
California residents see
WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm..
For more information go to: www.p65Warnings.ca.gov
Specifications
PA-CH752-3102
Engine
Engine Series
Command Pro
Engine Style
Horizontal
Engine Type
4-Cycle OHV
Cylinders
2
Cooling System
Air
Dry Weight
105 Lbs
CC
747 CCs
HP
27 HP
Max Torque
42.2 Lbs
Cylinder Bore Type
Cast Iron
Bore
3.3 Inches
Stroke
2.7 Inches
Compression Ratio
9.1:1
CARB
Yes
Systems
Charging System
15 Amps
Starting System
12-Volt Key Start
Ignition System
Electronic Spark
Lubrication
Lubrication
Pressurized
Oil Capacity
64 oz
Intake/Exhaust
Fuel
Gas
Muffler
Not Included
Air Cleaner
Mult-Stage Canister
Fuel Tank
Not Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
1-7/16 x 4.453 Inch
Crankshaft Type
Straight
Crankshaft Diameter
1-7/16"
Crankshaft Length
4.453"
Crankshaft End Tapped Size
5/8"-18
Crankshaft Keyway Width
3/8 Inches
PTO Height
6-1/8 Inches
Overview
Weight
105 Pounds
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Length
14.6 Inches
Product Width
17.7 Inches
Product Height
24.5 Inches
Dimensions
14.6 x 17.7 x 24.5
