Kohler Engines PA-CH640-3005
Kohler Engines PA-CH640-3005
Hover to zoom
1 Of 5

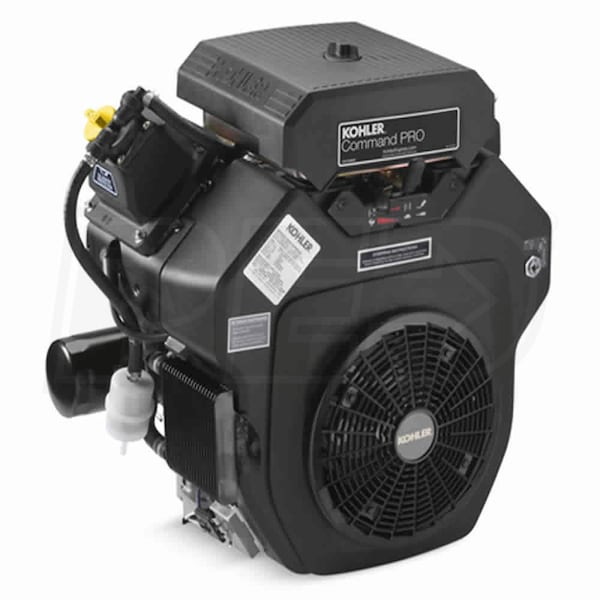

Kohler Command Pro CH640 674cc 20.5 Gross HP Electric Start Horizontal Engine, 1-1/8" x 4" Crankshaft, Tapped 7/16"-20

Model:

PA-CH640-3005

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Try this product instead
Kohler Command Pro CH640 674cc 20.5 Gross HP Electric Start Horizontal Engine, 1-1/8
Kohler Command Pro CH640 674cc 20.5 Gross HP Electric Start Horizontal Engine, 1-1/8" x 4" Crankshaft, Tapped 7/16"-20
Model: PA-CH640-3005
Product Discontinued
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Features

  • Model# CH640-3005, 1-1/8" x 4" Crankshaft, Tapped 7/16"-20
  • Utility / General applications like mowers, compressors & grain augers
  • KOHLER Command PRO™ CH640 V-Twin Cylinder Air-Cooled 4-Cycle Horizontal Gas Engine
  • Produces 35 lbs./ft. peak torque- Power levels are stated gross torque per SAE J1941
  • Fully Oil Pressurized Hydraulic Valve Lifters
  • Push rods stay in constant contact with rocker arms
  • Valve train is maintenance free- no adjustments needed
  • Large Capacity In-Line Fuel Filter And Dual Element Air Filter
  • Extra protection against dirt particles that can clog fuel lines
  • Maximizes engine power and life
  • Overhead Valve Technology
  • Provides greater volumetric efficiency and higher compression ratio
  • Produces more power, improved fuel economy/cooling, and reduces oil consumption
  • Virtually no carbon buildup, reducing overall maintenance costs
  • Variable Speed, Mechanical Governor
  • Smooth performance, regardless of application or fluctuating demands for power
  • KOHLER Command PRO
  • Generates a stronger spark at low cranking speed
  • Automatic Compression Release (ACR)
  • Allows compression to escape during cranking to reduce pull force
  • 12V Electric Starter & 20A Regulated Charging System
  • Mechanical Fuel Pump- Gas Tank Not Included

Specifications

PA-CH640-3005
specs product image PID-68809
Engine
Engine Series
Command Pro
Engine Style
Horizontal
Engine Type
4-Cycle OHV
Cylinders
2
Cooling System
Air
Dry Weight
90 Lbs
CC
674 CCs
HP
20.5 HP
Max Torque
35.7 Lbs
Cylinder Bore Type
Cast Iron
Bore
3.1 Inches
Compression Ratio
8.5:1
Stroke
2.6 Inches
CARB
Yes
Systems
Charging System
20 Amps
Starting System
12-Volt Key Start
Ignition System
Electronic Spark
Lubrication
Lubrication
Pressurized
Oil Capacity
64 oz
Intake/Exhaust
Fuel
Gas
Muffler
Not Included
Air Cleaner
Dual Element
Fuel Tank
Not Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
1-1/8 x 4 Inch
Crankshaft Type
Straight
Crankshaft Diameter
1-1/8"
Crankshaft Length
4"
Crankshaft End Tapped Size
7/16"-20
Crankshaft Keyway Width
1/4 Inch
Overview
Weight
90 Pounds
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Length
14 Inches
Product Width
17.7 Inches
Product Height
19 Inches
Dimensions
14 x 17.7 x 19.0
