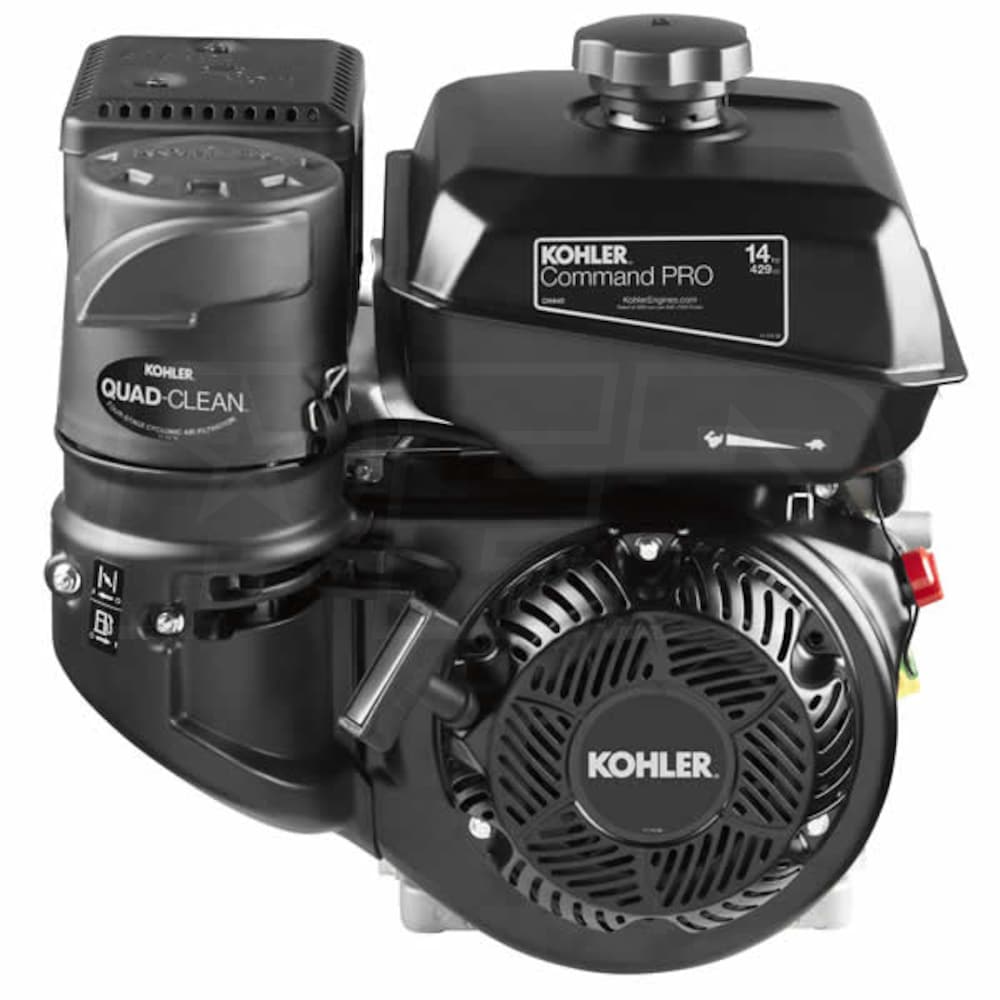

Kohler Command Pro CH440 429cc 14 Gross HP Horizontal Engine, 1" x 3.49" Crankshaft, Tapped 3/8"-24
Model: PA-CH440-3302
+
Share This Product
-
Product Description
-
Reviews
-
Product Q&A
-
How-To Articles
-
Manuals
Product Description
+−
Features
Features
- Model# CH440-3149, 1" x 3.49" Straight Crankshaft, Tapped 3/8"-24
- Utility / General applications like log splitters, pressure washers, compressors & tillers
- Supercedes CH440-3011
- KOHLER Command PRO™ CH440 Single Cylinder Air-Cooled 4-Cycle Horizontal Gas Engine
- Produces 22.7 lbs./ft. peak torque- Power levels are stated gross torque per SAE J1940
- Maximum Side Load Characteristics
- Steel-forged crankshaft and cast iron cylinder bore
- Stellite® faced exhaust valve with Tuftride® coated stems and dual ball bearings
- Quad-Clean™ All-Season Four-Stage Cyclonic Air Filtration System
- Only the cleanest air is entering the engine- maximizing engine power and life
- Recycle engine heat for effortless starts in all weather and conditions
- Longer Run Time Between Fill-Ups
- Advanced ignition system reduces fuel consumption
- Large 1.925 gallon fuel tank
- Smoother, Quieter Performance
- Large capacity oversized muffler with heat shield and spark arrestor
- Sound-deadening alloy crankcase and silenced air intake
- Oil Sentry Automatic Low Oil Engine Shutdown System
- Added engine protection- no light
Specifications
Engine
Engine Series
Command Pro
Engine Style
Horizontal
Engine Type
4-Cycle OHV
Cylinders
1
Cooling System
Air
Dry Weight
72.8 Lbs
CC
429 CCs
HP
14 HP
Max Torque
22.7 Lbs
Cylinder Bore Type
Cast Iron
Bore
3.5 Inches
Stroke
2.7 Inches
Compression Ratio
8.0:1
CARB
Yes
Systems
Starting System
Recoil Only
Ignition System
Electronic Spark
Lubrication
Lubrication
Splash
Oil Filter
No
Oil Capacity
44.8 oz
Intake/Exhaust
Fuel
Gas
Muffler
Included
Air Cleaner
Integrated Cyclonic Air Cleaner
Fuel Tank Size
1.925 Gallons
Fuel Tank
Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
1 x 3.49 Inch
Crankshaft Type
Straight
Crankshaft Diameter
1"
Crankshaft Length
3.49"
Crankshaft End Tapped Size
3/8"-24
Crankshaft Keyway Width
1/4 Inch
PTO Height
5.25 Inches
Overview
Weight
73 Pounds
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Length
16.2 Inches
Product Width
17.8 Inches
Product Height
17.4 Inches
Dimensions
16.2 x 17.8 x 17.4
Additional Model Numbers
PA-CH440-3149, PA-CH440-3302
Features
Features
- Model# CH440-3149, 1" x 3.49" Straight Crankshaft, Tapped 3/8"-24
- Utility / General applications like log splitters, pressure washers, compressors & tillers
- Supercedes CH440-3011
- KOHLER Command PRO™ CH440 Single Cylinder Air-Cooled 4-Cycle Horizontal Gas Engine
- Produces 22.7 lbs./ft. peak torque- Power levels are stated gross torque per SAE J1940
- Maximum Side Load Characteristics
- Steel-forged crankshaft and cast iron cylinder bore
- Stellite® faced exhaust valve with Tuftride® coated stems and dual ball bearings
- Quad-Clean™ All-Season Four-Stage Cyclonic Air Filtration System
- Only the cleanest air is entering the engine- maximizing engine power and life
- Recycle engine heat for effortless starts in all weather and conditions
- Longer Run Time Between Fill-Ups
- Advanced ignition system reduces fuel consumption
- Large 1.925 gallon fuel tank
- Smoother, Quieter Performance
- Large capacity oversized muffler with heat shield and spark arrestor
- Sound-deadening alloy crankcase and silenced air intake
- Oil Sentry Automatic Low Oil Engine Shutdown System
- Added engine protection- no light
Specifications
Engine
Engine Series
Command Pro
Engine Style
Horizontal
Engine Type
4-Cycle OHV
Cylinders
1
Cooling System
Air
Dry Weight
72.8 Lbs
CC
429 CCs
HP
14 HP
Max Torque
22.7 Lbs
Cylinder Bore Type
Cast Iron
Bore
3.5 Inches
Stroke
2.7 Inches
Compression Ratio
8.0:1
CARB
Yes
Systems
Starting System
Recoil Only
Ignition System
Electronic Spark
Lubrication
Lubrication
Splash
Oil Filter
No
Oil Capacity
44.8 oz
Intake/Exhaust
Fuel
Gas
Muffler
Included
Air Cleaner
Integrated Cyclonic Air Cleaner
Fuel Tank Size
1.925 Gallons
Fuel Tank
Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
1 x 3.49 Inch
Crankshaft Type
Straight
Crankshaft Diameter
1"
Crankshaft Length
3.49"
Crankshaft End Tapped Size
3/8"-24
Crankshaft Keyway Width
1/4 Inch
PTO Height
5.25 Inches
Overview
Weight
73 Pounds
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Length
16.2 Inches
Product Width
17.8 Inches
Product Height
17.4 Inches
Dimensions
16.2 x 17.8 x 17.4
Additional Model Numbers
PA-CH440-3149, PA-CH440-3302
Product Specs
+−
Specifications
Engine
Engine Series
Command Pro
Engine Style
Horizontal
Engine Type
4-Cycle OHV
Cylinders
1
Cooling System
Air
Dry Weight
72.8 Lbs
CC
429 CCs
HP
14 HP
Max Torque
22.7 Lbs
Cylinder Bore Type
Cast Iron
Bore
3.5 Inches
Stroke
2.7 Inches
Compression Ratio
8.0:1
CARB
Yes
Systems
Starting System
Recoil Only
Ignition System
Electronic Spark
Lubrication
Lubrication
Splash
Oil Filter
No
Oil Capacity
44.8 oz
Intake/Exhaust
Fuel
Gas
Muffler
Included
Air Cleaner
Integrated Cyclonic Air Cleaner
Fuel Tank Size
1.925 Gallons
Fuel Tank
Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
1 x 3.49 Inch
Crankshaft Type
Straight
Crankshaft Diameter
1"
Crankshaft Length
3.49"
Crankshaft End Tapped Size
3/8"-24
Crankshaft Keyway Width
1/4 Inch
PTO Height
5.25 Inches
Overview
Weight
73 Pounds
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Length
16.2 Inches
Product Width
17.8 Inches
Product Height
17.4 Inches
Dimensions
16.2 x 17.8 x 17.4
Additional Model Numbers
PA-CH440-3149, PA-CH440-3302
