The kohler command pro ch440 429cc 14 gross hp electric start horizontal engine, 1" x 3.49" crankshaft, tapped 3/8"-24 (scratch & dent) has been discontinued and is not available for purchase at this time.

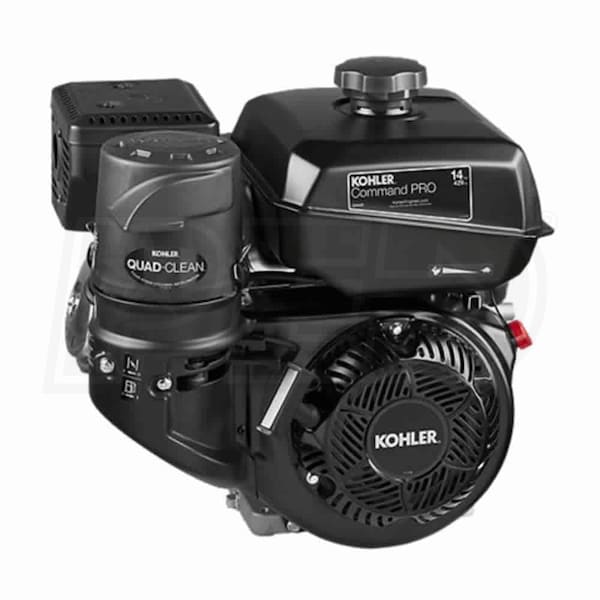

Kohler Command Pro CH440 429cc 14 Gross HP Electric Start Horizontal Engine, 1" x 3.49" Crankshaft, Tapped 3/8"-24 (Scratch & Dent)

Close
Kohler Engines Power Equipment and Accessories
Model: PA-CH440-3113-SD
(Based on expert analysis, manufacturer ratings and customer reviews)
Write a Review
Share This Product
Plus 1 This Product
Tweet This Product
Pin It!



Product Discontinued Product Discontinued
  • Features
  • Specs
  • Q&A
  • Reviews
  • Articles

Scratch & Dent Model
This unit was returned by a customer, it has a dented fuel tank that won't affect performance

Model# CH440-3113, 1" x 3.49" Straight Crankshaft, Tapped 3/8"-24
Utility / General applications like log splitters, pressure washers, compressors & tillers

KOHLER Command PRO™ CH440 Single Cylinder Air-Cooled 4-Cycle Horizontal Gas Engine
Produces 22.7 lbs./ft. peak torque- Power levels are stated gross torque per SAE J1940

Maximum Side Load Characteristics
Steel-forged crankshaft and cast iron cylinder bore
Stellite« faced exhaust valve with Tuftride« coated stems and dual ball bearings

Quad-Clean™ All-Season Four-Stage Cyclonic Air Filtration System
Only the cleanest air is entering the engine- maximizing engine power and life
Recycle engine heat for effortless starts in all weather and conditions

Longer Run Time Between Fill-Ups
Advanced ignition system reduces fuel consumption
Large 1.925 gallon fuel tank

Smoother, Quieter Performance
Large capacity oversized muffler with heat shield and spark arrestor
Sound-deadening alloy crankcase and silenced air intake

Oil Sentry Automatic Low Oil Engine Shutdown System
Added engine protection- no light


Engine
Engine Series
Command Pro
Engine Style
Horizontal
Cylinders
1
Engine Type
4-Cycle OHV
Cooling System
Air
Dry Weight
72.8 Lbs
CC
429 CCs
HP
14 HP
Max Torque
22.7 Lbs
Cylinder Bore Type
Cast Iron
Bore
3.5 Inches
Stroke
2.7 Inches
Compression Ratio
8.0:1
CARB
Yes
Systems
Charging System
10 Amps
Starting System
12-Volt w/ Recoil Backup
Ignition System
Electronic Spark
Lubrication
Lubrication
Splash
Oil Filter
No
Oil Capacity
44.8 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Float
Muffler
Included
Air Cleaner
Integrated Cyclonic Air Cleaner
Fuel Tank Size
1.925 Gallons
Fuel Tank
Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
1 x 3.49 Inch
Crankshaft Type
Straight
Crankshaft Diameter
1"
Crankshaft Length
3.5"
Crankshaft End Tapped Size
3/8"-24
Crankshaft Keyway Width
1/4 Inch
PTO Height
6.5 Inches
Overview
Weight
93 Pounds
Product Length
16.2 Inches
Product Width
17.8 Inches
Product Height
17.4 Inches
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Model
PA-CH440-3113-SD
