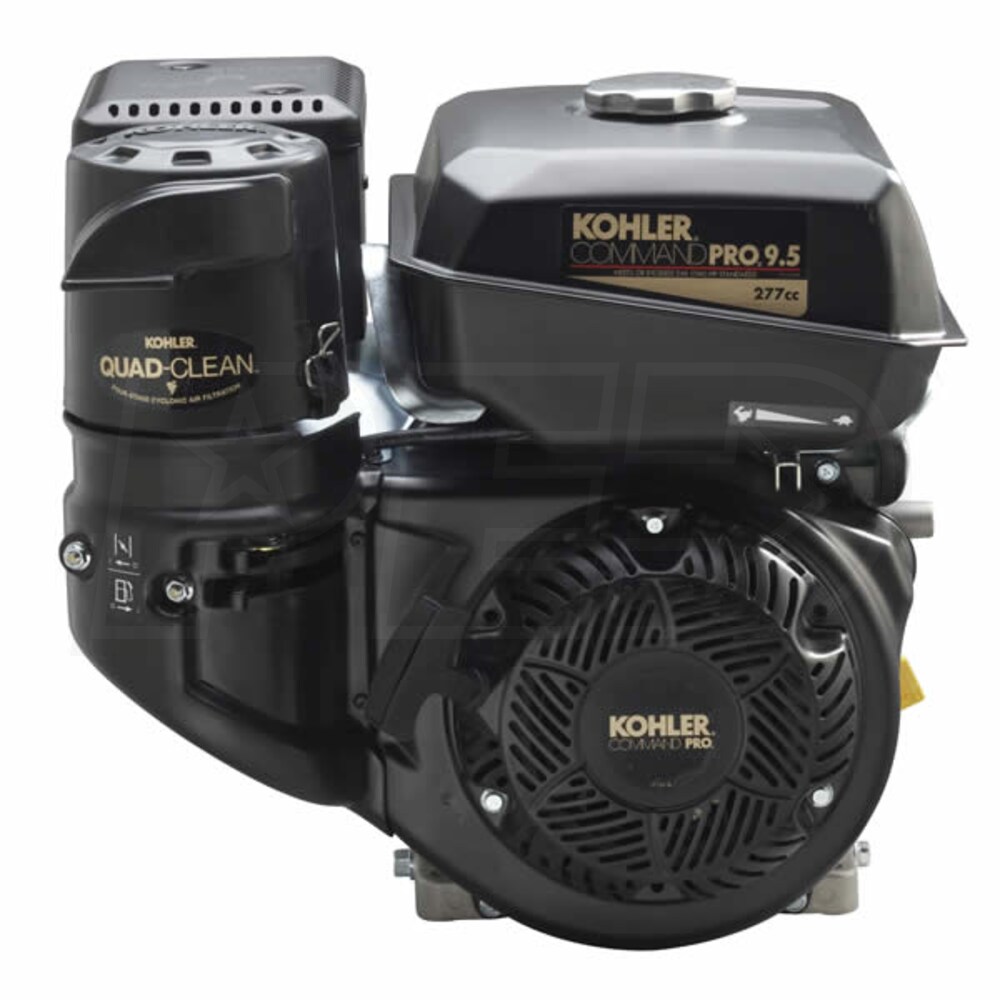

Kohler Command Pro™ CH395 277cc 9.5 Gross HP Horizontal Engine, 1" x 3.49" Crankshaft, Tapped 7/16"-20

Model:

PA-CH395-3149

Write a Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Kohler Command Pro™ CH395 277cc 9.5 Gross HP Horizontal Engine, 1
Kohler Command Pro™ CH395 277cc 9.5 Gross HP Horizontal Engine, 1" x 3.49" Crankshaft, Tapped 7/16"-20
Model: PA-CH395-3149
Product Discontinued
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Features

  • Model# CH395-3011, 1" x 3.49" Straight Crankshaft, Tapped 7/16"-20
  • Utility / General applications like mowers, compressors & grain augers
  • KOHLER Command PRO
  • Produces 13.9 lbs./ft. peak torque- Power levels are stated gross torque per SAE J1940
  • Maximum Side Load Characteristics
  • Steel-forged crankshaft and cast iron cylinder bore
  • StelliteŽ faced exhaust valve with TuftrideŽ coated stems and dual ball bearings
  • Quad-Clean
  • Only the cleanest air is entering the engine- maximizing engine power and life
  • Recycle engine heat for effortless starts in all weather and conditions
  • Longer Run Time Between Fill-Ups
  • Advanced ignition system reduces fuel consumption
  • Large 1.925 gallon fuel tank
  • Smoother, Quieter Performance
  • Large capacity oversized muffler with heat shield and spark arrestor
  • Sound-deadening alloy crankcase and silenced air intake
  • Oil Sentry Automatic Low Oil Engine Shutdown System
  • Added engine protection- no light
California residents see
WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm..
For more information go to: www.p65Warnings.ca.gov

Specifications

PA-CH395-3149
Engine
Engine Series
Command Pro
Engine Style
Horizontal
Engine Type
4-Cycle OHV
Cylinders
1
Cooling System
Air
Dry Weight
61.5 Lbs
CC
277 CCs
HP
9.5 HP
Max Torque
13.9 Lbs
Cylinder Bore Type
Cast Iron
Bore
3.1 Inches
Stroke
2.3 Inches
Compression Ratio
8.5:1
CARB
Yes
Systems
Starting System
Recoil Only
Lubrication
Lubrication
Splash
Oil Filter
No
Oil Capacity
44.8 oz
Intake/Exhaust
Fuel
Gas
Muffler
Included
Air Cleaner
Integrated Cyclonic Air Cleaner
Fuel Tank Size
1.925 Gallons
Fuel Tank
Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
1 x 3.49 Inch
Crankshaft Type
Straight
Crankshaft Diameter
1"
Crankshaft Length
3.49"
Crankshaft End Tapped Size
7/16"-20
Crankshaft Keyway Width
1/4 Inch
PTO Height
5.25 Inches
Overview
Weight
62 Pounds
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Length
15.9 Inches
Product Width
16.8 Inches
Product Height
16.7 Inches
Dimensions
15.9 x 16.8 x 16.7
UPC
PA-CH395-3149
