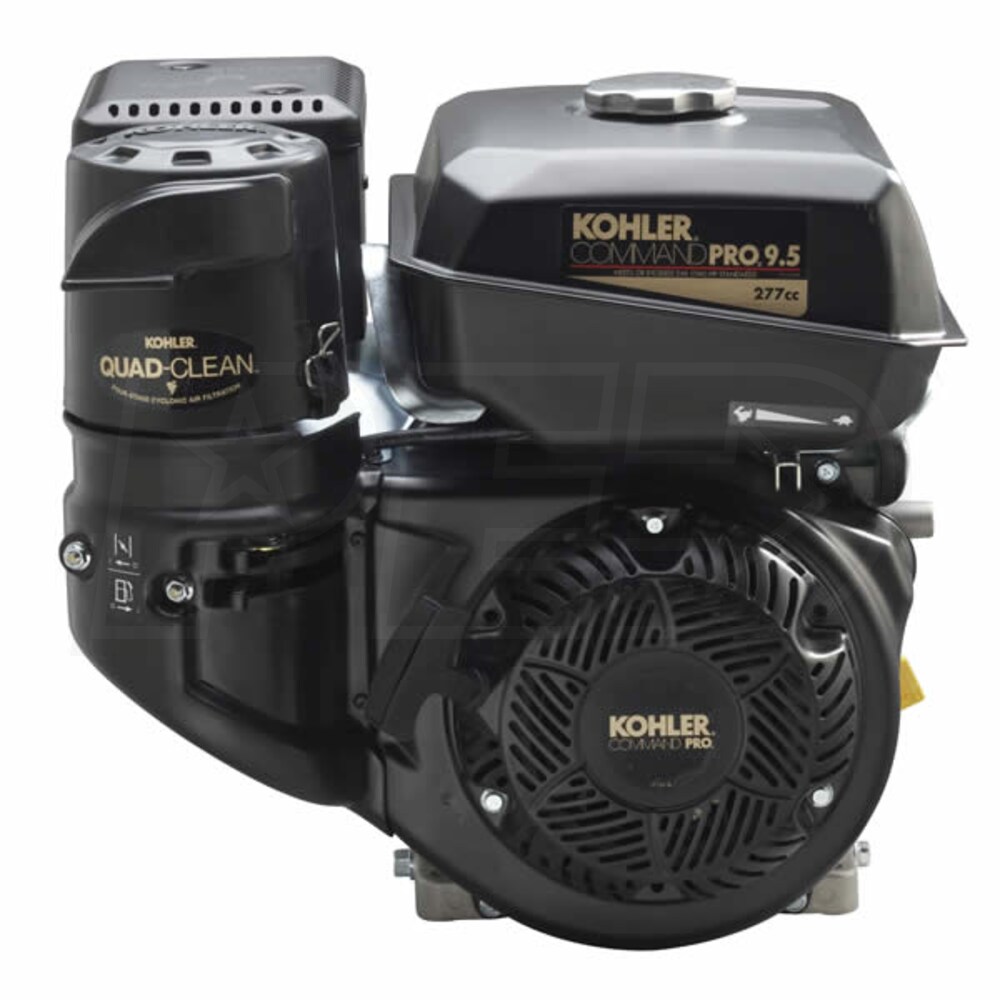

Kohler Command Pro CH395 277cc 9.5 Gross HP Electric Start Horizontal Engine, 1" x 3.49" Crankshaft, Tapped 7/16"-20

Kohler Command Pro CH395 277cc 9.5 Gross HP Electric Start Horizontal Engine, 1" x 3.49" Crankshaft, Tapped 7/16"-20
Model: PA-CH395-3031
$619.99
Factory-Direct
Ships in 2-5 Business Days
Factory items ship direct from the manufacturer.
Shipping times vary.
Free Shipping &
Tax-Free (Except IL)
Free ShippingNo Sales Tax* (Except IL)$619.99Buy Now
No Sales Tax* (Except IL)$594.99Visit Site
Factory-Direct
Ships in 2-5 Business Days
Free Shipping
Free Shipping
*We currently CANNOT ship this product to Alaska, California, Hawaii or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Product Q&A
  • How-To Articles
  • Manuals
Product Description
+

Features
Features
  • Model# CH395-3031, 1" x 3.49" Straight Crankshaft, Tapped 7/16"-20
  • Utility / General applications like log splitters, pressure washers, compressors & tillers
  • KOHLER Command PRO™ CH395 Single Cylinder Air-Cooled 4-Cycle Horizontal Electric Start Gas Engine
  • Produces 13.9 lbs./ft. peak torque- Power levels are stated gross torque per SAE J1940
  • Maximum Side Load Characteristics
  • Steel-forged crankshaft and cast iron cylinder bore
  • Stellite« faced exhaust valve with Tuftride« coated stems and dual ball bearings
  • Quad-Clean™ All-Season Four-Stage Cyclonic Air Filtration System
  • Only the cleanest air is entering the engine- maximizing engine power and life
  • Recycles engine heat for effortless starts in all weather and conditions
  • Longer Run Time Between Fill-Ups
  • Advanced ignition system reduces fuel consumption
  • Large 1.925 gallon fuel tank
  • Smoother, Quieter Performance
  • Large capacity oversized muffler with heat shield and spark arrestor
  • Sound-deadening alloy crankcase and silenced air intake
  • Oil Sentry Automatic Low Oil Engine Shutdown System
  • Added engine protection- no light
  • 12V Electric Starter & 10A Regulated Charging System
  • Saves your shoulder (recoil backup included)
Specifications
Engine
Engine Series
Command Pro
Engine Style
Horizontal
Cylinders
1
Engine Type
4-Cycle OHV
Cooling System
Air
Dry Weight
61.5 Lbs
CC
277 CCs
HP
9.5 HP
Max Torque
13.9 Lbs
Cylinder Bore Type
Cast Iron
Bore
3.1 Inches
Stroke
2.3 Inches
Compression Ratio
8.5:1
CARB
No
Systems
Charging System
10 Amps
Starting System
12-Volt w/ Recoil Backup
Ignition System
Electronic Spark
Lubrication
Lubrication
Splash
Oil Filter
No
Oil Capacity
44.8 oz
Intake/Exhaust
Fuel
Gas
Muffler
Included
Air Cleaner
Integrated Cyclonic Air Cleaner
Fuel Tank Size
1.925 Gallons
Fuel Tank
Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
1 x 3.49 Inch
Crankshaft Type
Straight
Crankshaft Diameter
1"
Crankshaft Length
3.49"
Crankshaft End Tapped Size
7/16"- 20
Crankshaft Keyway Width
1/4 Inch
Overview
Weight
61.5 Pounds
Product Length
15.9 Inches
Product Width
16.8 Inches
Product Height
16.7 Inches
Dimensions
15.9 x 16.8 x 16.7
Consumer Warranty
3 Years
Commercial Warranty
3 Years

Features
Features
  • Model# CH395-3031, 1" x 3.49" Straight Crankshaft, Tapped 7/16"-20
  • Utility / General applications like log splitters, pressure washers, compressors & tillers
  • KOHLER Command PRO™ CH395 Single Cylinder Air-Cooled 4-Cycle Horizontal Electric Start Gas Engine
  • Produces 13.9 lbs./ft. peak torque- Power levels are stated gross torque per SAE J1940
  • Maximum Side Load Characteristics
  • Steel-forged crankshaft and cast iron cylinder bore
  • Stellite« faced exhaust valve with Tuftride« coated stems and dual ball bearings
  • Quad-Clean™ All-Season Four-Stage Cyclonic Air Filtration System
  • Only the cleanest air is entering the engine- maximizing engine power and life
  • Recycles engine heat for effortless starts in all weather and conditions
  • Longer Run Time Between Fill-Ups
  • Advanced ignition system reduces fuel consumption
  • Large 1.925 gallon fuel tank
  • Smoother, Quieter Performance
  • Large capacity oversized muffler with heat shield and spark arrestor
  • Sound-deadening alloy crankcase and silenced air intake
  • Oil Sentry Automatic Low Oil Engine Shutdown System
  • Added engine protection- no light
  • 12V Electric Starter & 10A Regulated Charging System
  • Saves your shoulder (recoil backup included)
Specifications
Engine
Engine Series
Command Pro
Engine Style
Horizontal
Cylinders
1
Engine Type
4-Cycle OHV
Cooling System
Air
Dry Weight
61.5 Lbs
CC
277 CCs
HP
9.5 HP
Max Torque
13.9 Lbs
Cylinder Bore Type
Cast Iron
Bore
3.1 Inches
Stroke
2.3 Inches
Compression Ratio
8.5:1
CARB
No
Systems
Charging System
10 Amps
Starting System
12-Volt w/ Recoil Backup
Ignition System
Electronic Spark
Lubrication
Lubrication
Splash
Oil Filter
No
Oil Capacity
44.8 oz
Intake/Exhaust
Fuel
Gas
Muffler
Included
Air Cleaner
Integrated Cyclonic Air Cleaner
Fuel Tank Size
1.925 Gallons
Fuel Tank
Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
1 x 3.49 Inch
Crankshaft Type
Straight
Crankshaft Diameter
1"
Crankshaft Length
3.49"
Crankshaft End Tapped Size
7/16"- 20
Crankshaft Keyway Width
1/4 Inch
Overview
Weight
61.5 Pounds
Product Length
15.9 Inches
Product Width
16.8 Inches
Product Height
16.7 Inches
Dimensions
15.9 x 16.8 x 16.7
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Specs
+
Specifications
Engine
Engine Series
Command Pro
Engine Style
Horizontal
Cylinders
1
Engine Type
4-Cycle OHV
Cooling System
Air
Dry Weight
61.5 Lbs
CC
277 CCs
HP
9.5 HP
Max Torque
13.9 Lbs
Cylinder Bore Type
Cast Iron
Bore
3.1 Inches
Stroke
2.3 Inches
Compression Ratio
8.5:1
CARB
No
Systems
Charging System
10 Amps
Starting System
12-Volt w/ Recoil Backup
Ignition System
Electronic Spark
Lubrication
Lubrication
Splash
Oil Filter
No
Oil Capacity
44.8 oz
Intake/Exhaust
Fuel
Gas
Muffler
Included
Air Cleaner
Integrated Cyclonic Air Cleaner
Fuel Tank Size
1.925 Gallons
Fuel Tank
Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
1 x 3.49 Inch
Crankshaft Type
Straight
Crankshaft Diameter
1"
Crankshaft Length
3.49"
Crankshaft End Tapped Size
7/16"- 20
Crankshaft Keyway Width
1/4 Inch
Overview
Weight
61.5 Pounds
Product Length
15.9 Inches
Product Width
16.8 Inches
Product Height
16.7 Inches
Dimensions
15.9 x 16.8 x 16.7
Consumer Warranty
3 Years
Commercial Warranty
3 Years
