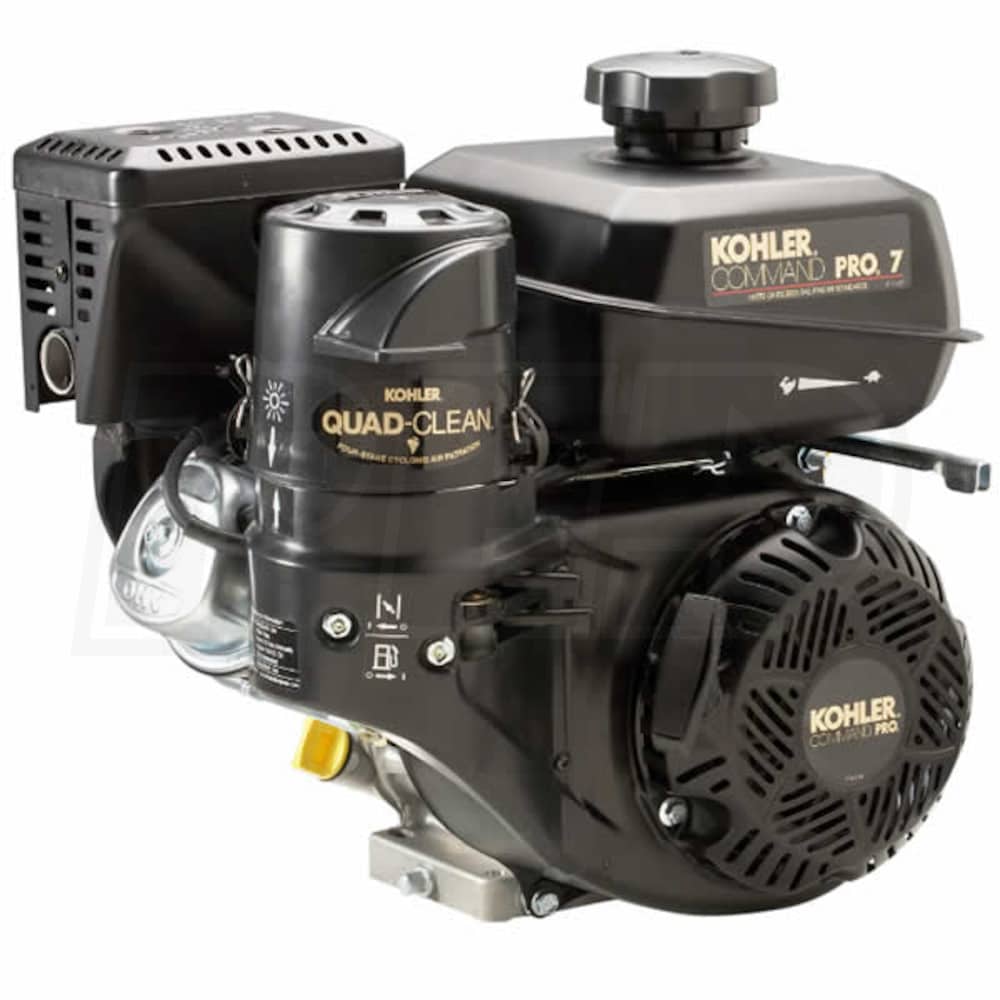

Kohler Command Pro CH270 208cc 7 Gross HP Electric Strart Horizontal Engine, 3/4" x 2.42" Crankshaft, Tapped 5/16"-24

Kohler Command Pro CH270 208cc 7 Gross HP Electric Strart Horizontal Engine, 3/4" x 2.42" Crankshaft, Tapped 5/16"-24
Our Price
Compare Prices
Shipping Info
Model: PA-CH270-3031
(Based on expert analysis, manufacturer ratings and customer reviews)
5.0 out of 55.0 out of 55.0 out of 55.0 out of 55.0 out of 5
Number of Reviews (1)
Write A Review
$529.99

Factory-Direct
Ships in 2-5 Business Days
Factory items ship direct from the manufacturer.
Shipping times vary.
Shipping Crate Icon
Free Shipping
Free Shipping$529.99Buy Now
$529.99Visit Site
Factory-Direct
Ships in 2-5 Business Days
Free Shipping
Free Shipping
*We currently CANNOT ship this product to Alaska, California, Hawaii or any destination outside of the United States
Share
  • Product Description
  • 1
    Reviews
  • Product Q&A
  • How-To Articles
  • Manuals
Product Description
+

Features
Features
  • Model# CH270-3031, 3/4" x 2.42" Straight Crankshaft, Tapped 5/16"-24
  • Utility / General applications like log splitters, pressure washers, compressors & tillers
  • KOHLER Command PRO™ E3 CH270 Single Cylinder Air-Cooled 4-Cycle Horizontal Electric Start Gas Engine
  • Produces 10.5 lbs./ft. peak torque- Power levels are stated gross torque per SAE J1940
  • Maximum Side Load Characteristics
  • Steel-forged crankshaft and cast iron cylinder bore
  • Stellite« faced exhaust valve with Tuftride« coated stems and dual ball bearings
  • Quad-Clean™ All-Season Four-Stage Cyclonic Air Filtration System
  • Only the cleanest air is entering the engine- maximizing engine power and life
  • Recycles engine heat for effortless starts in all weather and conditions
  • Longer Run Time Between Fill-Ups
  • Advanced ignition system reduces fuel consumption
  • Large 1 gallon fuel tank
  • Smoother, Quieter Performance
  • Large capacity oversized muffler with heat shield and spark arrestor
  • Sound-deadening alloy crankcase and silenced air intake
  • Oil Sentry Automatic Low Oil Engine Shutdown System
  • Added engine protection- no light
  • 12V Electric Starter & 10A Regulated Charging System
  • Saves your shoulder (recoil backup included)
Specifications
Engine
Engine Series
Command Pro
Engine Style
Horizontal
Engine Type
4-Cycle OHV
Cylinders
1
Cooling System
Air
Dry Weight
38.7 Lbs
CC
208 CCs
HP
7 HP
Max Torque
10.5 Lbs
Cylinder Bore Type
Cast Iron
Bore
2.8 Inches
Stroke
2.1 Inches
Compression Ratio
8.5:1
CARB
No
Systems
Charging System
10 Amps
Starting System
12-Volt w/ Recoil Backup
Ignition System
Electronic Spark
Lubrication
Lubrication
Splash
Oil Filter
No
Oil Capacity
20 oz
Intake/Exhaust
Fuel
Gas
Muffler
Included
Air Cleaner
Integrated Cyclonic Air Cleaner
Fuel Tank Size
1.08 Gallons
Fuel Tank
Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
3/4 x 2.42 Inches
Crankshaft Type
Straight
Crankshaft Diameter
3/4"
Crankshaft Length
2.42"
Crankshaft End Tapped Size
5/16"-24
Crankshaft Keyway Width
3/16 Inches
PTO Height
4.173 Inches
Overview
Weight
39 Pounds
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Length
12.7 Inches
Product Width
15.2 Inches
Product Height
14.2 Inches
Dimensions
12.7 x 15.2 x 14.2
