Kohler 24RCLA - 23kW Emergency Standby Power Generator (120/240V Three-Phase)

Model:

24RCLA-QS3

Write A Review
$13,320.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
This Item Is Built To Order
synchrony card logo
$234 / Month
With our 82 months 10.99% APR*
82 fixed monthly payments required.
Kohler 24RCLA - 23kW Emergency Standby Power Generator (120/240V Three-Phase)
Kohler 24RCLA - 23kW Emergency Standby Power Generator (120/240V Three-Phase)
Model: 24RCLA-QS3
$13,320.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Emergency

Style

Standby (Liquid Cooled)

Run Watts

23,000 Rated Watts

Voltage

120/240 Three-Phase

Fuel

LP/Natural Gas

Engine

Kohler

    ^Please Note - Requires Loading Dock or Forklift For Delivery^
  • 23kW (LPG) / 21kW (NG) Liquid-Cooled Standby Generator
  • For commercial buildings with 120/240V 3-Phase service
  • Premium 5-Year / 2000 Hour Limited Warranty
  • Backed by Kohler's extraordinary reliability & performance
  • Brushless-Alternator For High Quality, Cleaner Generator Power
  • Advanced voltage / Hz regulation prevents unstable power
  • Protects sophisticated electronics with ultra-low distortion (THD)
  • RDC2 Digital Controller - Controls Generator & RXT Transfer Switch*
  • Provides advanced control, system monitoring & diagnostics
  • Electronic speed control and digital voltage regulation (DVR)
  • Built-in 2.5 amp battery charger
  • 2-Line Backlit LCD Digital Display
  • Easy to read local data access in all lighting conditions
  • Programmable exerciser for weekly or bi-weekly self-testing
  • 2.2L Liquid-Cooled Engine (1800 RPM)
  • Runs on clean burning Natural Gas or LP fuel
  • Simple field conversion while maintaining emission certification
  • Sound-Attenuating Aluminum Enclosure
  • Fade, scratch, & corrosion-resistant powder-baked finish
  • Meets 181 MPH wind load rating
  • "Quieter" Cooling System
  • Electronic fan, internal silencer & acoustic insulation
  • Keeps dB under 61 @ 7M (23') during normal operation

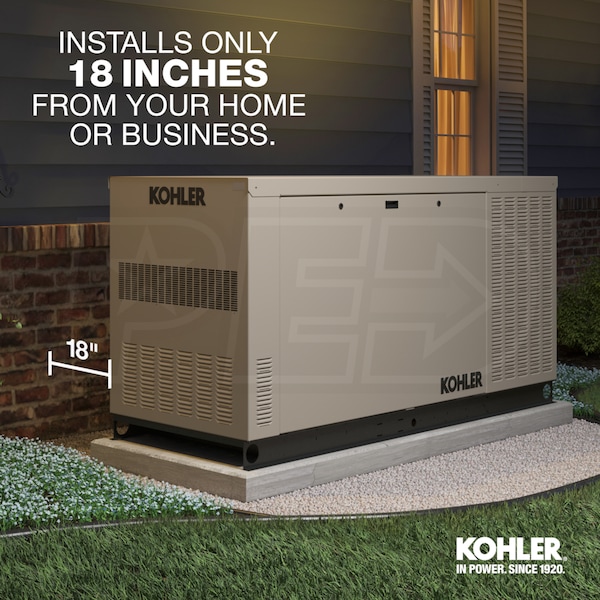

  • Meets NFPA 37 4.1.4 Requirements For Reduced Setback
  • Can be installed within 18" of structure
  • GFCI Service Outlet
  • Ideal for powering heater kits or for powering service tools
  • Standard OnCue® Plus Generator Management Systems
  • Real-time power status and the ability to manage your entire backup system
  • ***Not Compatible For Off-Grid Applications***
  • Approved for stationary standby applications in locations served by a reliable utility source
  • *Requires Automatic Transfer Switch (Sold Separately)
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

Plug Types
NEMA 5-20R (GFCI)
24RCLA-QS3
specs product image PID-114823
General Information
Product Category
Generator - Standby
Overview
Product Category
Generator - Standby
Weight
1260 Pounds
CARB Compliant
No
Made in USA
Yes
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Style
Standby Generator
Product Length
74 Inches
Product Width
32.9 Inches
Product Height
45.1 Inches
Product Specs
Voltage
120/240 Three-Phase
Frequency
60 Hertz
Alternator
Brushless
Rated Watts
23000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
21000 Watts
LP Power Capacity
23000 Watts
NG Fuel Consumption @ 50% Load
199 ft³/hr
NG Fuel Consumption @ 100% Load
301 ft³/hr
LP Fuel Consumption @ 50% Load
2.4 gallons/hr
LP Fuel Consumption @ 100% Load
3.2 gallons/hr
Rated Amps
70 Amps
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
53 Test (61 Run) dbA
Transfer Switch
Automatic (Not Included)
Battery
Not Included (630 CCA)
Enclosure
Aluminum
Mounting Pad
Concrete (Not Included)
Cooling System
Liquid Cooled
Grade Type
Emergency
Wi-Fi Remote Monitoring
Sold Separately
Engine
Engine Brand
Kohler
Starting System
12v Auto Start
CC
2200 CC
Consumer Engine Warranty
5 Years
Commercial Engine Warranty
5 Years
Engine RPM
1800 RPM
Low Oil Alert/Shutdown
Yes
Plugs
NEMA 5-20R - GFCI
1
