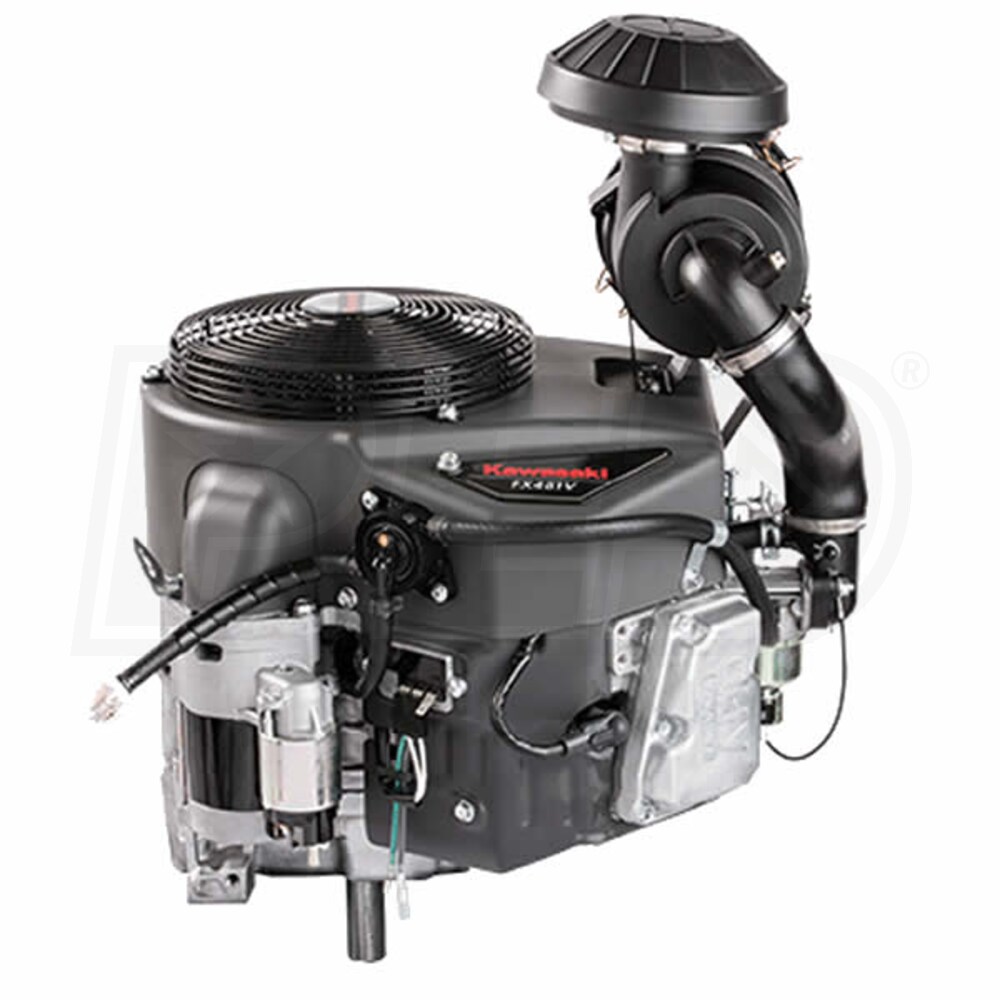

Kawasaki FX481V - 603cc 15.5HP V-Twin Electric Start Vertical Engine, 1" x 3-5/32" Crankshaft

Kawasaki FX481V - 603cc 15.5HP V-Twin Electric Start Vertical Engine, 1" x 3-5/32" Crankshaft
Our Price
Compare Prices
Shipping Info
Model: FX481V-ES00S
Product Discontinued
Sorry, this product is no longer available.
Discontinued
Sorry, this product is no longer available
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to Alaska, Hawaii, California or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • How-To Articles
  • Manuals
Product Description
+

Features
Features
  • FX481V-ES00S - HD Can Air Filter, 15-Amp Coil, Oil Filter Side Muffler
  • Supersedes FX481V-S00S
  • 3-Year Commercial & 3-Year Residental Warranty
  • 1" x 3-5/32" (80mm) Crankshaft for commercial mowers & HD industrial/construction equipment
  • Top Of The Line Kawasaki FX481 Series Air-Cooled V-Twin Critical Power Engine
  • SAE Certified for consistent, accurate horsepower; Produces 15.5HP @3600 RPM
  • 90 V-Twin Cylinder Engineering & Overhead V-Valve (OHV) Technology
  • Smooth, well-balanced power output in a compact package
  • For maximum power, quiet operation & ensures low emissions
  • Pressurized Lubrication System w/ Spin-On Oil Filter
  • Cast Iron cyclinder liners provide increased protection & longevity
  • FX-Series Multi-Stage Dual-Element Canister Air Filtration System
  • Never fear day-long continuous operation again
  • Two-Channel Forced Air-Cooling Design
  • Prevents overheating while boosting efficiency on even those HOT days
  • 15-AMP Electric Shift Starter w/ Auto-Compression Release
  • Requires less force, makes it easier to start, for less work fatigue
  • Internally-Vented Carbuerator & Flywheel Magneto Ignition System
  • More percise air/fuel mix for efficient operation in a wide range of temps.
  • Metal Engine Cover w/ Integrated Clean-Out Ports
  • Rotating metal grass chopper screen keeps the engine breathing "freely"
  • Clutch Coil, Separate Choke/Throttle Cables & High Capacity Fuel Pump
  • Designed to easily integrate with your current mower
  • Note - FX V-Twin Series Engines - Fuel Tank NOT Included
  • 50-State CARB Compliant
Specifications
Engine
Engine Series
Kawy FX
Engine Style
Vertical
Cylinders
2
Engine Type
4-Cycle OHV
Cooling System
Air
Dry Weight
89.7 Lbs
CC
603 CCs
HP
15.5 HP
Max Torque
31.4 Lbs
Cylinder Bore Type
Cast Iron
Bore
2.90 Inches
Stroke
2.80 Inches
Compression Ratio
8.1:1
Systems
Charging System
15 Amps
Starting System
12-Volt Key Start
Ignition System
Flywheel Magneto
Lubrication
Lubrication
Pressurized
Oil Filter
Yes
Oil Capacity
57.6 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Twin Barrel
Muffler
Not Included
Air Cleaner
Dual Element
Fuel Tank
Not Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
1 x 3-5/32 Inch
Crankshaft Type
Straight
Crankshaft Diameter
1"
Crankshaft Length
3-5/32"
Overview
Made in USA
Yes
Weight
89.7 Pounds
Consumer Warranty
3 Years
Commercial Warranty
3 Years

Features
Features
  • FX481V-ES00S - HD Can Air Filter, 15-Amp Coil, Oil Filter Side Muffler
  • Supersedes FX481V-S00S
  • 3-Year Commercial & 3-Year Residental Warranty
  • 1" x 3-5/32" (80mm) Crankshaft for commercial mowers & HD industrial/construction equipment
  • Top Of The Line Kawasaki FX481 Series Air-Cooled V-Twin Critical Power Engine
  • SAE Certified for consistent, accurate horsepower; Produces 15.5HP @3600 RPM
  • 90 V-Twin Cylinder Engineering & Overhead V-Valve (OHV) Technology
  • Smooth, well-balanced power output in a compact package
  • For maximum power, quiet operation & ensures low emissions
  • Pressurized Lubrication System w/ Spin-On Oil Filter
  • Cast Iron cyclinder liners provide increased protection & longevity
  • FX-Series Multi-Stage Dual-Element Canister Air Filtration System
  • Never fear day-long continuous operation again
  • Two-Channel Forced Air-Cooling Design
  • Prevents overheating while boosting efficiency on even those HOT days
  • 15-AMP Electric Shift Starter w/ Auto-Compression Release
  • Requires less force, makes it easier to start, for less work fatigue
  • Internally-Vented Carbuerator & Flywheel Magneto Ignition System
  • More percise air/fuel mix for efficient operation in a wide range of temps.
  • Metal Engine Cover w/ Integrated Clean-Out Ports
  • Rotating metal grass chopper screen keeps the engine breathing "freely"
  • Clutch Coil, Separate Choke/Throttle Cables & High Capacity Fuel Pump
  • Designed to easily integrate with your current mower
  • Note - FX V-Twin Series Engines - Fuel Tank NOT Included
  • 50-State CARB Compliant
Specifications
Engine
Engine Series
Kawy FX
Engine Style
Vertical
Cylinders
2
Engine Type
4-Cycle OHV
Cooling System
Air
Dry Weight
89.7 Lbs
CC
603 CCs
HP
15.5 HP
Max Torque
31.4 Lbs
Cylinder Bore Type
Cast Iron
Bore
2.90 Inches
Stroke
2.80 Inches
Compression Ratio
8.1:1
Systems
Charging System
15 Amps
Starting System
12-Volt Key Start
Ignition System
Flywheel Magneto
Lubrication
Lubrication
Pressurized
Oil Filter
Yes
Oil Capacity
57.6 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Twin Barrel
Muffler
Not Included
Air Cleaner
Dual Element
Fuel Tank
Not Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
1 x 3-5/32 Inch
Crankshaft Type
Straight
Crankshaft Diameter
1"
Crankshaft Length
3-5/32"
Overview
Made in USA
Yes
Weight
89.7 Pounds
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Specs
+
Specifications
Engine
Engine Series
Kawy FX
Engine Style
Vertical
Cylinders
2
Engine Type
4-Cycle OHV
Cooling System
Air
Dry Weight
89.7 Lbs
CC
603 CCs
HP
15.5 HP
Max Torque
31.4 Lbs
Cylinder Bore Type
Cast Iron
Bore
2.90 Inches
Stroke
2.80 Inches
Compression Ratio
8.1:1
Systems
Charging System
15 Amps
Starting System
12-Volt Key Start
Ignition System
Flywheel Magneto
Lubrication
Lubrication
Pressurized
Oil Filter
Yes
Oil Capacity
57.6 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Twin Barrel
Muffler
Not Included
Air Cleaner
Dual Element
Fuel Tank
Not Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
1 x 3-5/32 Inch
Crankshaft Type
Straight
Crankshaft Diameter
1"
Crankshaft Length
3-5/32"
Overview
Made in USA
Yes
Weight
89.7 Pounds
Consumer Warranty
3 Years
Commercial Warranty
3 Years
