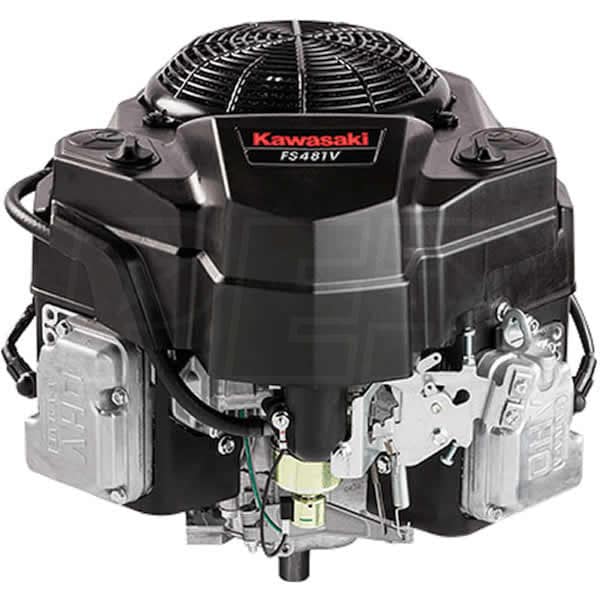

Kawasaki FS481V - 603cc 14.5HP OHV V-Twin Vertical Engine, No Muffler, Clutch Coil, 1" x 3-5/32" Crankshaft

Kawasaki FS481V - 603cc 14.5HP OHV V-Twin Vertical Engine, No Muffler, Clutch Coil, 1" x 3-5/32" Crankshaft
Our Price
Compare Prices
Shipping Info
Model: FS481V-S01S
$1,299.99

Ships in 4-7 Business Days
Shipping Crate Icon
Free Shipping
Holiday Shipping Schedule
Holiday Schedule -
Ships in 4-7 Business Days
Free Freight
Free Freight
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+

Features
Features
  • FS481V-ES01S - 1" x 3-5/32"Crankshaft, Clutch Coil, No Muffler, Separate C & T Controls
  • 3-Year Consumer & 3-Year Commercial Warranty
  • 1" x 80mm Crankshaft For Zero-turn riders, lawn tractors & wide-area walk behind mowers
  • Kawasaki FS481V Series Air-Cooled OHV V-Twin Critical Power Engine
  • SAE Certified for consistent, accurate horsepower; Produces 14.5 HP @3600 RPM
  • 90° V-Twin Cylinder Engineering
  • Smooth, well-balanced power output in a compact package
  • Cast Iron cyclinder liners provide increased protection & longevity
  • Overhead V-Valve (OHV) Technology
  • For maximum power, quiet operation & ensures low emissions
  • Pressurized Lubrication System w/ Spin-On Oil Filter
  • 100-Hour Oil & 200-hour filter change intervals for less maintenance
  • Dual-Element Air Filtration System
  • Foam pre-cleaner element and paper primary filter for more air-particle removal
  • Two-Channel Forced Air-Cooling & Rotating Grass Screen
  • Prevents overheating while boosting efficiency on even those HOT days
  • Recoil Starter & Electronic Spark Ignition
  • Auto-Compression realease plus an Internally-vented carbuerator for reliable, consistent starting
  • Also Includes Separate Choke & Throttle Control; Clutch Coil
  • Designed to easily integrate with your current mower
  • Model Notes - Includes Engine Mounted Fuel Pump - No Fuel Tank or Muffler Included
  • 50-State CARB Compliant
Specifications
Engine
Engine Series
Kawy FS
Engine Style
Vertical
Engine Type
4-Cycle OHV
Cylinders
2
Cooling System
Air
Dry Weight
80.9 Lbs
CC
603 CCs
HP
14.5 HP
Max Torque
30.9 Lbs
Cylinder Bore Type
Cast Iron
Bore
2.88 Inches
Stroke
2.84 Inches
Compression Ratio
8.1:1
Systems
Starting System
Recoil Only
Ignition System
Electronic Spark
Lubrication
Lubrication
Pressurized
Oil Filter
Yes
Oil Capacity
57.6 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Float
Muffler
Not Included
Air Cleaner
Dual Element
Fuel Tank
Not Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
1 x 3-5/32 Inch
Crankshaft Type
Straight
Crankshaft Diameter
1"
Crankshaft Length
3-5/32"
Overview
Made in USA
Yes
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Additional Model Numbers
FS481V-ES01S, FS481V-S01S

Features
Features
  • FS481V-ES01S - 1" x 3-5/32"Crankshaft, Clutch Coil, No Muffler, Separate C & T Controls
  • 3-Year Consumer & 3-Year Commercial Warranty
  • 1" x 80mm Crankshaft For Zero-turn riders, lawn tractors & wide-area walk behind mowers
  • Kawasaki FS481V Series Air-Cooled OHV V-Twin Critical Power Engine
  • SAE Certified for consistent, accurate horsepower; Produces 14.5 HP @3600 RPM
  • 90° V-Twin Cylinder Engineering
  • Smooth, well-balanced power output in a compact package
  • Cast Iron cyclinder liners provide increased protection & longevity
  • Overhead V-Valve (OHV) Technology
  • For maximum power, quiet operation & ensures low emissions
  • Pressurized Lubrication System w/ Spin-On Oil Filter
  • 100-Hour Oil & 200-hour filter change intervals for less maintenance
  • Dual-Element Air Filtration System
  • Foam pre-cleaner element and paper primary filter for more air-particle removal
  • Two-Channel Forced Air-Cooling & Rotating Grass Screen
  • Prevents overheating while boosting efficiency on even those HOT days
  • Recoil Starter & Electronic Spark Ignition
  • Auto-Compression realease plus an Internally-vented carbuerator for reliable, consistent starting
  • Also Includes Separate Choke & Throttle Control; Clutch Coil
  • Designed to easily integrate with your current mower
  • Model Notes - Includes Engine Mounted Fuel Pump - No Fuel Tank or Muffler Included
  • 50-State CARB Compliant
Specifications
Engine
Engine Series
Kawy FS
Engine Style
Vertical
Engine Type
4-Cycle OHV
Cylinders
2
Cooling System
Air
Dry Weight
80.9 Lbs
CC
603 CCs
HP
14.5 HP
Max Torque
30.9 Lbs
Cylinder Bore Type
Cast Iron
Bore
2.88 Inches
Stroke
2.84 Inches
Compression Ratio
8.1:1
Systems
Starting System
Recoil Only
Ignition System
Electronic Spark
Lubrication
Lubrication
Pressurized
Oil Filter
Yes
Oil Capacity
57.6 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Float
Muffler
Not Included
Air Cleaner
Dual Element
Fuel Tank
Not Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
1 x 3-5/32 Inch
Crankshaft Type
Straight
Crankshaft Diameter
1"
Crankshaft Length
3-5/32"
Overview
Made in USA
Yes
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Additional Model Numbers
FS481V-ES01S, FS481V-S01S
Product Specs
+
Specifications
Engine
Engine Series
Kawy FS
Engine Style
Vertical
Engine Type
4-Cycle OHV
Cylinders
2
Cooling System
Air
Dry Weight
80.9 Lbs
CC
603 CCs
HP
14.5 HP
Max Torque
30.9 Lbs
Cylinder Bore Type
Cast Iron
Bore
2.88 Inches
Stroke
2.84 Inches
Compression Ratio
8.1:1
Systems
Starting System
Recoil Only
Ignition System
Electronic Spark
Lubrication
Lubrication
Pressurized
Oil Filter
Yes
Oil Capacity
57.6 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Float
Muffler
Not Included
Air Cleaner
Dual Element
Fuel Tank
Not Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
1 x 3-5/32 Inch
Crankshaft Type
Straight
Crankshaft Diameter
1"
Crankshaft Length
3-5/32"
Overview
Made in USA
Yes
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Additional Model Numbers
FS481V-ES01S, FS481V-S01S
