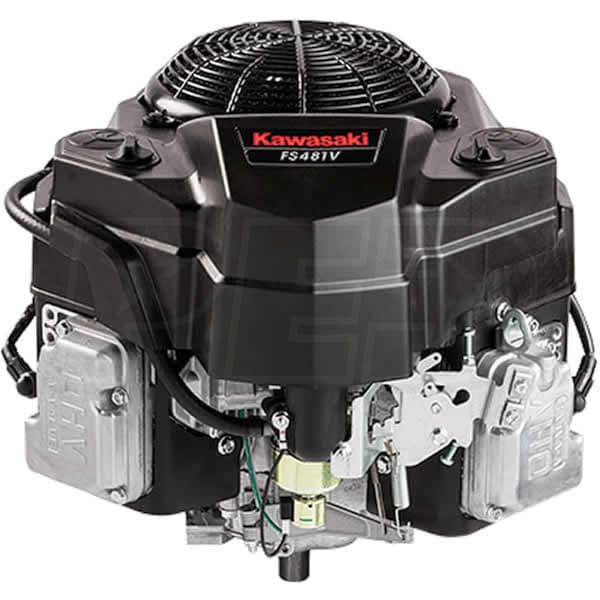

Kawasaki FS481V - 603cc 14.5HP OHV V-Twin Vertical Engine, OFS Muffler, Clutch Coil, 1" x 3-5/32" Crankshaft

Kawasaki FS481V - 603cc 14.5HP OHV V-Twin Vertical Engine, OFS Muffler, Clutch Coil, 1" x 3-5/32" Crankshaft
Our Price
Compare Prices
Shipping Info
Model: FS481V-S26S
$1,349.99

Only 1 In-Stock
Ships Thursday, Oct 24th
Shipping Crate Icon
Free Shipping
Only 1 In-Stock
Ships Thursday, Oct 24th
Free Freight
Free Freight
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+

Features
Features
  • FS481V-BS26S - 1" x 3-5/32-inch Crankshaft, Oil Filter Side Muffler, Clutch Coil, Separate Choke & Throttle
  • 3-Year Consumer & 3-Year Commercial Warranty
  • 1" x 80mm Crankshaft For Zero-turn riders, lawn tractors & wide-area walk behind mowers
  • Kawasaki FS481V Series Air-Cooled OHV V-Twin Critical Power Engine
  • SAE Certified for consistent, accurate horsepower; Produces 14.5 HP @3600 RPM
  • 90° V-Twin Cylinder Engineering
  • Smooth, well-balanced power output in a compact package
  • Cast Iron cyclinder liners provide increased protection & longevity
  • Overhead V-Valve (OHV) Technology
  • For maximum power, quiet operation & ensures low emissions
  • Pressurized Lubrication System w/ Spin-On Oil Filter
  • 100-Hour Oil & 200-hour filter change intervals for less maintenance
  • Dual-Element Air Filtration System
  • Foam pre-cleaner element and paper primary filter for more air-particle removal
  • Two-Channel Forced Air-Cooling & Rotating Grass Screen
  • Prevents overheating while boosting efficiency on even those HOT days
  • Recoil-Starter w/ Automatic Compression Release
  • Internally-vented carbuerator & Electronic spark ignition for reliable consistent starting
  • Oil Filter Side Muffler
  • For applications where muffler is optimal on oil-filter side of engine
  • Model Notes - No Fuel Tank Included
  • Includes separate choke & throttle controls and engine-mounted fuel pump
  • 50-State CARB Compliant
Specifications
Engine
Engine Series
Kawy FS
Engine Style
Vertical
Engine Type
4-Cycle OHV
Cylinders
2
Cooling System
Air
Dry Weight
80.9 Lbs
CC
603 CCs
HP
14.5 HP
Max Torque
30.9 Lbs
Cylinder Bore Type
Cast Iron
Bore
2.88 Inches
Stroke
2.84 Inches
Compression Ratio
8.1
Systems
Starting System
Recoil Only
Ignition System
Electronic Spark
Lubrication
Lubrication
Pressurized
Oil Filter
Yes
Oil Capacity
57.6 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Float
Muffler
Included
Air Cleaner
Dual Element
Fuel Tank
Not Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
1 x 3-5/32 Inch
Crankshaft Type
Straight
Crankshaft Diameter
1"
Crankshaft Length
3-5/32"
Overview
Made in USA
Yes
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Additional Model Numbers
FS481V-BS26S, FS481V-S26S
