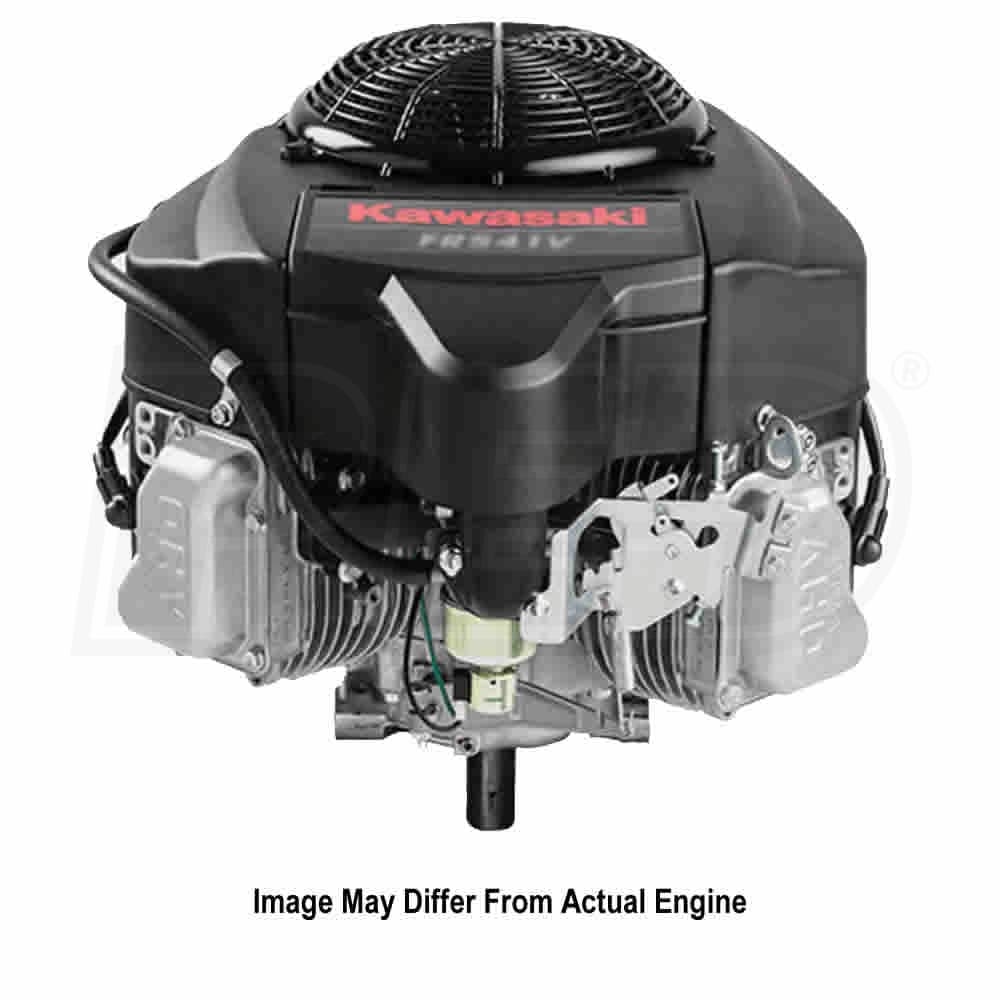

Kawasaki FR541V 603cc 15 HP OHV V-Twin Electric Start Vertical Engine, 1" x 80mm Crankshaft

Kawasaki FR541V 603cc 15 HP OHV V-Twin Electric Start Vertical Engine, 1" x 80mm Crankshaft
Model: FR541V-BS00S
Coming Soon
Ships in 2-5 Business Days
Free Shipping
Free Shipping
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Product Q&A
  • How-To Articles
  • Manuals
Product Description
+



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • FR541V-BS00S - 603cc 15 HP OHV V-Twin Electric Start Vertical Engine, 1" x 3-5/32" (80mm) Crankshaft
  • Drilled & Tapped 7/16"-20 ; 3-Year Consumer Warranty
  • For Zero-turn riders, lawn tractors & wide-area walk behind mowers
  • Kawasaki FR541V Series Air-Cooled OHV V-Twin Critical Power Engine
  • SAE Certified for consistent, accurate horsepower; Produces 15 HP @ 3600 RPM
  • 90 V-Twin Cylinder Engineering
  • Smooth, well-balanced power output in a compact package
  • Cast Iron cyclinder liners provide increased protection & longevity
  • Overhead V-Valve (OHV) Technology
  • For maximum power, quiet operation & ensures low emissions
  • Pressurized Lubrication System w/ Spin-On Oil Filter
  • 100-Hour Oil & 200-hour filter change intervals for less maintenance
  • Single-Element Air Filtration System
  • Primary paper filter for more air-particle removal
  • Two-Channel Forced Air-Cooling & Rotating Grass Screen
  • Prevents overheating while boosting efficiency on even those HOT days
  • Recoil Starter & Electronic Spark Ignition
  • For reliable, consistent starting and years of dependable usage
  • Auto-Compression Release
  • Internally vented carburetor with fuel shut-off solenoid
  • 15-Amp charging system instead of the clutch coil
  • There Is No Muffler Or Fuel Tank On This Engine
  • 50-State CARB Compliant
Specifications
Engine
Engine Series
Kawy FR
Engine Style
Vertical
Cylinders
2
Engine Type
4-Cycle OHV
Cooling System
Air
Dry Weight
80.9 Lbs
CC
603 CCs
HP
15 HP
Max Torque
31.7 Lbs
Cylinder Bore Type
Cast Iron
Bore
2.9 Inches
Stroke
2.8 Inches
Compression Ratio
8.1:1
CARB
Yes
Systems
Charging System
15 Amps
Starting System
12-Volt Key Start
Ignition System
Electronic Spark
Lubrication
Lubrication
Pressurized
Oil Filter
Yes
Oil Capacity
57.6 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Float
Muffler
Not Included
Air Cleaner
Dry (Paper)
Fuel Tank
Not Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
1 x 3-5/32 Inch
Crankshaft Type
Straight
Crankshaft Diameter
1"
Crankshaft Length
3-5/32" (80mm)
Crankshaft End Tapped Size
7/16"-20
PTO Height
4.69 Inches
Overview
Weight
80.9 Pounds
Product Length
18.98 Inches
Product Width
16.89 Inches
Product Height
14.61 Inches
Consumer Warranty
3 Years
