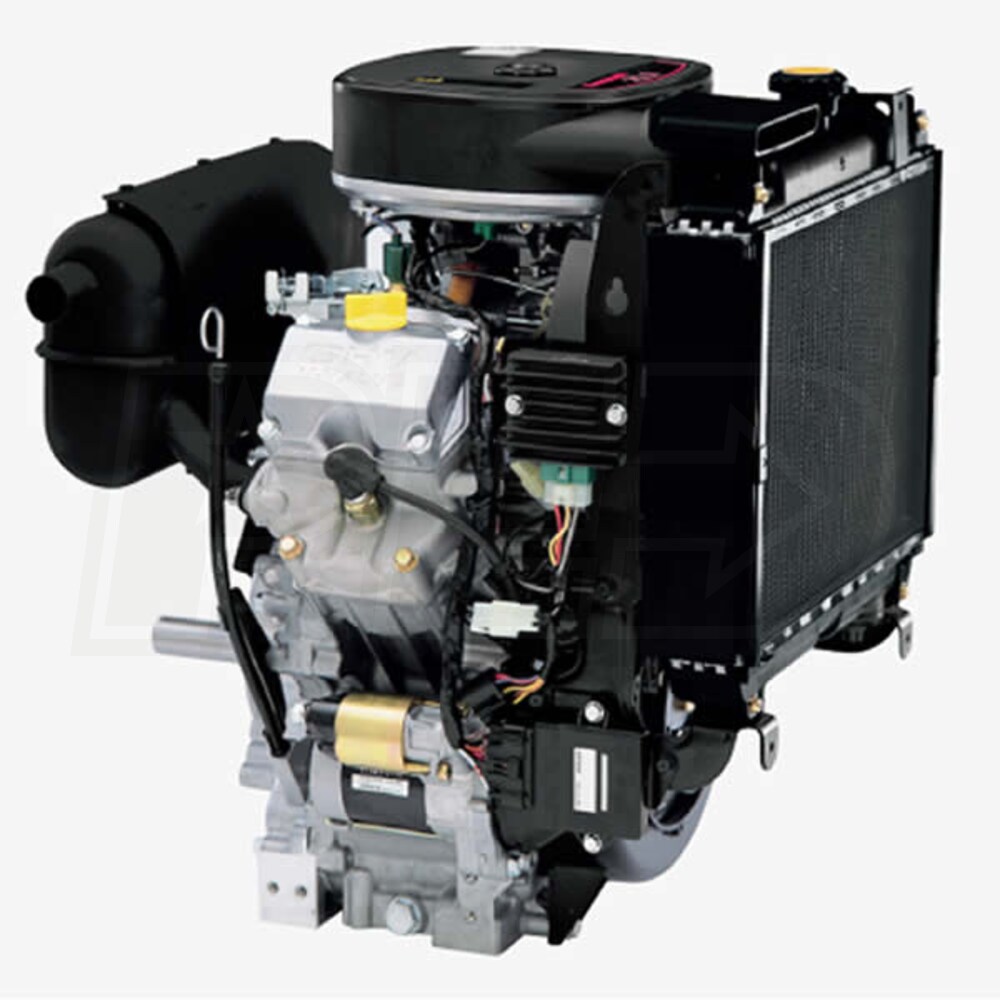

Kawasaki FD851D DFI 824cc 31HP Liquid-Cooled Electric Start Horizontal Engine, 1-1/8" x 3-3/4" Crankshaft

Kawasaki FD851D DFI 824cc 31HP Liquid-Cooled Electric Start Horizontal Engine, 1-1/8" x 3-3/4" Crankshaft
Our Price
Compare Prices
Shipping Info
Model: FD851D-S00S
$3,029.99

Only 2 In-Stock
Ships Monday, Oct 21st
Shipping Crate Icon
Free Shipping
Add-Ons
+$50.00
Only 2 In-Stock
Ships Monday, Oct 21st
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+

Features
Features
  • Kawasaki FD851D-NS00S DFI 745cc 26HP Horizontal Engine, 1-1/8" x 3-3/4" Crankshaft
  • Small space power from a digital fuel injected, liquid-cooled 90° V-Twin
  • For use on lawn tractors and scissor lifts, trenchers, and trash pumps
  • Overhead Valve (OHV) Technology & Mechanical Governor
  • For maximum power, quiet operation & ensures low emissions
  • Produces maximum 47.1 ft./lbs torque @ 3,200 RPM; 31 HP @ 3,600 RPM
  • Multi-Port Digital Fuel Injection
  • Precision-designed for power at the ready
  • High Pressure Electric Fuel Pump
  • Provides greater fuel efficiency and cleaner emissions
  • Pressurized Lubrication System
  • Cast-iron cylinder liner & chrome plated piston rings for increased longevity
  • Liquid Cooled Engine
  • High mount radiator & water temperature switch
  • Easy Choke Free Operation & Electronic Altitude Compensation
  • Takes out the guess work; eliminates need to choke and prime engine
  • Electronic Cold Operation Enrichment
  • Electronic ignition with spark advancement
  • 20-AMP Electric Bendix Starter
  • Magneto spark ignition for consistant ease in starting
  • Heavy Duty Canister Air Filter
  • Prevents dirt and debris from clogging essentials and causing decreased performance
  • Low Tone Muffler
  • Oil filter side mounted, provides quieter operation for more operator comfort
  • Note - Fuel-Tank Not Included
  • 3-Year Warranty
Specifications
Engine
Engine Series
Kawy FD
Engine Style
Horizontal
Engine Type
4-Cycle OHV
Cylinders
2
Cooling System
Liquid
Dry Weight
126.8 Lbs
CC
824 CCs
HP
31 HP
Max Torque
47.1 Lbs
Cylinder Bore Type
Cast Iron
Bore
3.2 Inches
Stroke
3.1 Inches
Compression Ratio
9.0:1
Systems
Charging System
20 Amps
Starting System
12-Volt (No Key)
Ignition System
Transistorized Magneto
Lubrication
Lubrication
Pressurized
Oil Filter
No
Oil Capacity
67.2 oz
Intake/Exhaust
Fuel
Gas
Muffler
Included
Air Cleaner
Mult-Stage Canister
Fuel Tank
Not Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
1-1/8 x 3-3/4 Inch
Crankshaft Type
Straight
Crankshaft Diameter
1-1/8"
Crankshaft Length
3-3/4"
Overview
Weight
126.8 Pounds
Made in USA
Yes
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Additional Model Numbers
FD851D-NS00S, FD851D-S00S

Features
Features
  • Kawasaki FD851D-NS00S DFI 745cc 26HP Horizontal Engine, 1-1/8" x 3-3/4" Crankshaft
  • Small space power from a digital fuel injected, liquid-cooled 90° V-Twin
  • For use on lawn tractors and scissor lifts, trenchers, and trash pumps
  • Overhead Valve (OHV) Technology & Mechanical Governor
  • For maximum power, quiet operation & ensures low emissions
  • Produces maximum 47.1 ft./lbs torque @ 3,200 RPM; 31 HP @ 3,600 RPM
  • Multi-Port Digital Fuel Injection
  • Precision-designed for power at the ready
  • High Pressure Electric Fuel Pump
  • Provides greater fuel efficiency and cleaner emissions
  • Pressurized Lubrication System
  • Cast-iron cylinder liner & chrome plated piston rings for increased longevity
  • Liquid Cooled Engine
  • High mount radiator & water temperature switch
  • Easy Choke Free Operation & Electronic Altitude Compensation
  • Takes out the guess work; eliminates need to choke and prime engine
  • Electronic Cold Operation Enrichment
  • Electronic ignition with spark advancement
  • 20-AMP Electric Bendix Starter
  • Magneto spark ignition for consistant ease in starting
  • Heavy Duty Canister Air Filter
  • Prevents dirt and debris from clogging essentials and causing decreased performance
  • Low Tone Muffler
  • Oil filter side mounted, provides quieter operation for more operator comfort
  • Note - Fuel-Tank Not Included
  • 3-Year Warranty
Specifications
Engine
Engine Series
Kawy FD
Engine Style
Horizontal
Engine Type
4-Cycle OHV
Cylinders
2
Cooling System
Liquid
Dry Weight
126.8 Lbs
CC
824 CCs
HP
31 HP
Max Torque
47.1 Lbs
Cylinder Bore Type
Cast Iron
Bore
3.2 Inches
Stroke
3.1 Inches
Compression Ratio
9.0:1
Systems
Charging System
20 Amps
Starting System
12-Volt (No Key)
Ignition System
Transistorized Magneto
Lubrication
Lubrication
Pressurized
Oil Filter
No
Oil Capacity
67.2 oz
Intake/Exhaust
Fuel
Gas
Muffler
Included
Air Cleaner
Mult-Stage Canister
Fuel Tank
Not Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
1-1/8 x 3-3/4 Inch
Crankshaft Type
Straight
Crankshaft Diameter
1-1/8"
Crankshaft Length
3-3/4"
Overview
Weight
126.8 Pounds
Made in USA
Yes
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Additional Model Numbers
FD851D-NS00S, FD851D-S00S
Product Specs
+
Specifications
Engine
Engine Series
Kawy FD
Engine Style
Horizontal
Engine Type
4-Cycle OHV
Cylinders
2
Cooling System
Liquid
Dry Weight
126.8 Lbs
CC
824 CCs
HP
31 HP
Max Torque
47.1 Lbs
Cylinder Bore Type
Cast Iron
Bore
3.2 Inches
Stroke
3.1 Inches
Compression Ratio
9.0:1
Systems
Charging System
20 Amps
Starting System
12-Volt (No Key)
Ignition System
Transistorized Magneto
Lubrication
Lubrication
Pressurized
Oil Filter
No
Oil Capacity
67.2 oz
Intake/Exhaust
Fuel
Gas
Muffler
Included
Air Cleaner
Mult-Stage Canister
Fuel Tank
Not Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
1-1/8 x 3-3/4 Inch
Crankshaft Type
Straight
Crankshaft Diameter
1-1/8"
Crankshaft Length
3-3/4"
Overview
Weight
126.8 Pounds
Made in USA
Yes
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Additional Model Numbers
FD851D-NS00S, FD851D-S00S
