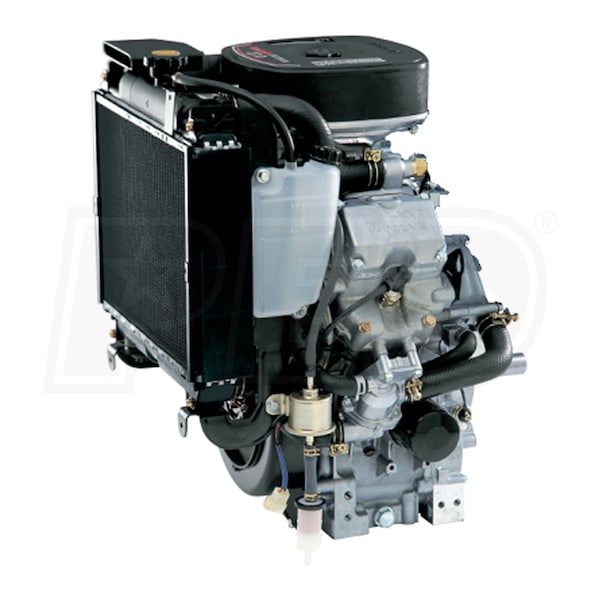

Kawasaki FD750D 745cc 25HP Liquid-Cooled Electric Start Horizontal Engine, 1-1/8" x 3-15/16" Crankshaft (Exmark)

Kawasaki FD750D 745cc 25HP Liquid-Cooled Electric Start Horizontal Engine, 1-1/8" x 3-15/16" Crankshaft (Exmark)
Our Price
Compare Prices
Shipping Info
Model: FD750D-S03S
$2,129.99

Only 2 In-Stock
Ships Thursday, Oct 24th
Shipping Crate Icon
Free Shipping
Add-Ons
+$50.00
Only 2 In-Stock
Ships Thursday, Oct 24th
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+

Features
Features
  • Kawasaki FD750D-NS03S 745cc 25HP Horizontal Engine, 1-1/8" x 3-15/16" Crankshaft
  • Delivering power through a precision-engineered liquid-cooled horizontal shaft OHV 90° V-Twin
  • For use on Exmark
  • Overhead Valve (OHV) Technology & Mechanical Governor
  • For maximum power, quiet operation & ensures low emissions
  • Produces maximum 41.0 ft./lbs torque @ 2,600 RPM; 25 HP @ 3,600 RPM
  • Pressurized Lubrication System
  • Cast-iron cylinder liner & chrome plated piston rings for increased longevity
  • Liquid Cooled Engine
  • Belt driven cooling fan keeps optimal temperature
  • 20-AMP Electric Bendix Starter
  • Magneto spark ignition for consistant ease in starting
  • Twin Barrel Carburetor
  • Fuel shut-off solenoid and oil pressure switch
  • Note - Fuel-Tank, Radiator, Air Filter, & Muffler Not Included (Exmark Supplied)
  • 3-Year Warranty
Specifications
Engine
Engine Series
Kawy FD
Engine Style
Horizontal
Engine Type
4-Cycle OHV
Cylinders
2
Cooling System
Liquid
Dry Weight
122 Lbs
CC
745 CCs
HP
25 HP
Max Torque
41 Lbs
Cylinder Bore Type
Cast Iron
Bore
3.07 Inches
Stroke
3.07 Inches
Compression Ratio
8.6:1
Systems
Charging System
30 Amps
Starting System
12-Volt (No Key)
Ignition System
Transistorized Magneto
Lubrication
Lubrication
Pressurized
Oil Filter
Yes
Oil Capacity
67.2 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Twin Barrel
Muffler
Not Included
Air Cleaner
None
Fuel Tank
Not Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
1-1/8 x 3-15/16 Inch
Crankshaft Type
Straight
Crankshaft Diameter
1-1/8"
Crankshaft Length
3-15/16"
Overview
Weight
122 Pounds
Made in USA
Yes
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Additional Model Numbers
FD750D-NS03S, FD750D-S03S

Features
Features
  • Kawasaki FD750D-NS03S 745cc 25HP Horizontal Engine, 1-1/8" x 3-15/16" Crankshaft
  • Delivering power through a precision-engineered liquid-cooled horizontal shaft OHV 90° V-Twin
  • For use on Exmark
  • Overhead Valve (OHV) Technology & Mechanical Governor
  • For maximum power, quiet operation & ensures low emissions
  • Produces maximum 41.0 ft./lbs torque @ 2,600 RPM; 25 HP @ 3,600 RPM
  • Pressurized Lubrication System
  • Cast-iron cylinder liner & chrome plated piston rings for increased longevity
  • Liquid Cooled Engine
  • Belt driven cooling fan keeps optimal temperature
  • 20-AMP Electric Bendix Starter
  • Magneto spark ignition for consistant ease in starting
  • Twin Barrel Carburetor
  • Fuel shut-off solenoid and oil pressure switch
  • Note - Fuel-Tank, Radiator, Air Filter, & Muffler Not Included (Exmark Supplied)
  • 3-Year Warranty
Specifications
Engine
Engine Series
Kawy FD
Engine Style
Horizontal
Engine Type
4-Cycle OHV
Cylinders
2
Cooling System
Liquid
Dry Weight
122 Lbs
CC
745 CCs
HP
25 HP
Max Torque
41 Lbs
Cylinder Bore Type
Cast Iron
Bore
3.07 Inches
Stroke
3.07 Inches
Compression Ratio
8.6:1
Systems
Charging System
30 Amps
Starting System
12-Volt (No Key)
Ignition System
Transistorized Magneto
Lubrication
Lubrication
Pressurized
Oil Filter
Yes
Oil Capacity
67.2 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Twin Barrel
Muffler
Not Included
Air Cleaner
None
Fuel Tank
Not Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
1-1/8 x 3-15/16 Inch
Crankshaft Type
Straight
Crankshaft Diameter
1-1/8"
Crankshaft Length
3-15/16"
Overview
Weight
122 Pounds
Made in USA
Yes
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Additional Model Numbers
FD750D-NS03S, FD750D-S03S
Product Specs
+
Specifications
Engine
Engine Series
Kawy FD
Engine Style
Horizontal
Engine Type
4-Cycle OHV
Cylinders
2
Cooling System
Liquid
Dry Weight
122 Lbs
CC
745 CCs
HP
25 HP
Max Torque
41 Lbs
Cylinder Bore Type
Cast Iron
Bore
3.07 Inches
Stroke
3.07 Inches
Compression Ratio
8.6:1
Systems
Charging System
30 Amps
Starting System
12-Volt (No Key)
Ignition System
Transistorized Magneto
Lubrication
Lubrication
Pressurized
Oil Filter
Yes
Oil Capacity
67.2 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Twin Barrel
Muffler
Not Included
Air Cleaner
None
Fuel Tank
Not Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
1-1/8 x 3-15/16 Inch
Crankshaft Type
Straight
Crankshaft Diameter
1-1/8"
Crankshaft Length
3-15/16"
Overview
Weight
122 Pounds
Made in USA
Yes
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Additional Model Numbers
FD750D-NS03S, FD750D-S03S
