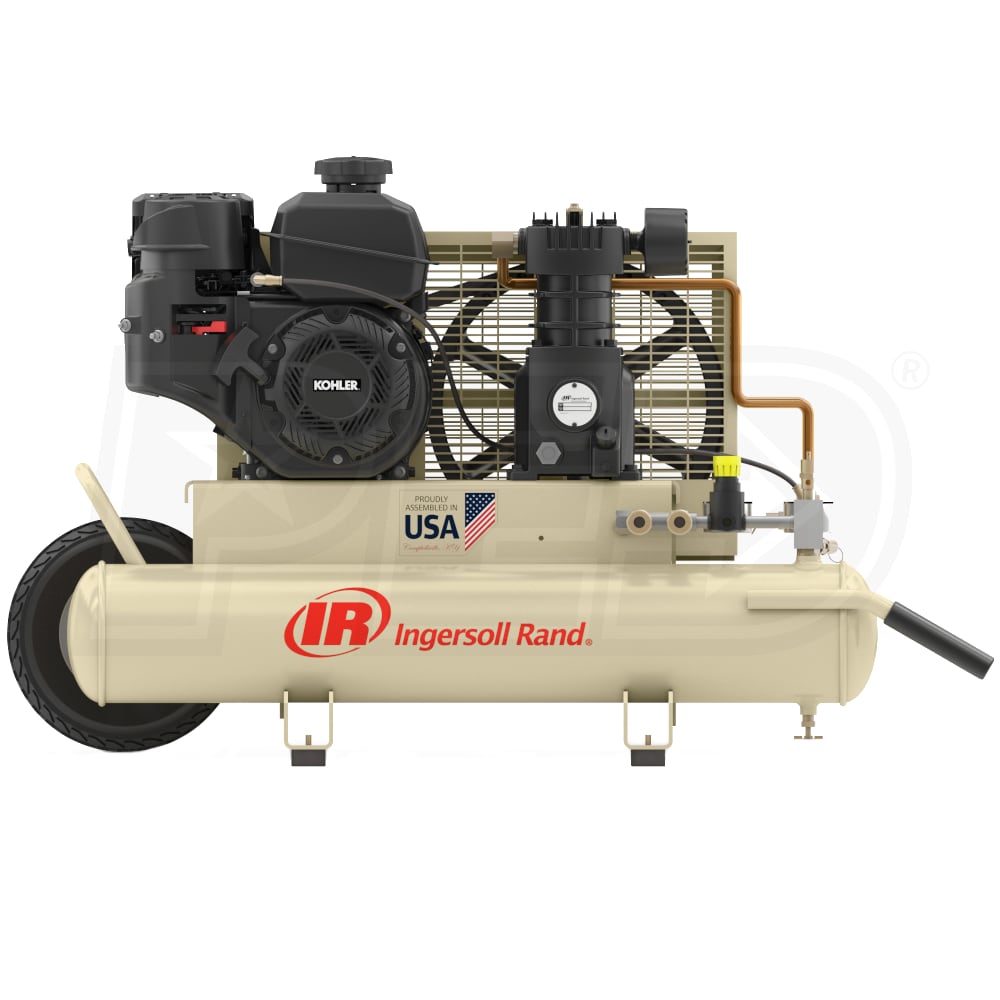

Ingersoll Rand 5.5-HP 8-Gallon Gas Wheelbarrow Air Compressor w/ Kohler Engine
Model:
SS3J5.5GK-WB
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Contractor
Style
Wheel Barrow
Engine Brand
Kohler
CFM
11.8
Tank Size
8
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
- Kohler 5.5-HP OHV Engine
- Performance-drive design for professional grade power
- Forged-steel crankshaft and cast-iron cylinder liner
- Single-Stage Pump
- 11.8 CFM @ 90 PSI; 10.7 CFM @ 135 PSI (Max)
- 100% Cast-Iron Cylinders & Frame
- 100% continuous duty rated
- Designed for 5,000 hours of trouble-free use
- Wheel Barrow Style w/ 8-Gallon (Total) Twin-Tank
- Lightweight, low-profile design allows maximum maneuverability
- Built-In Pressure Gauge
- Easily see current pressure
- Discharge Regulator w/ Pressure Gauge
- Adjust pressure based on your application
- Dual Quick Connects
- Allows you to run more tools at the same time
- Idle Control
- Saves fuel and allows for a quieter operation
- Manual Drain
- Makes it easy to maintain air compressor
- Assembled In The USA
- 1-Year Warranty (Unit Ships Dry)
- 1 or 2-year extended warranty available with purchase of IR Start Up Kit at time of purchase (See Accessories)
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
SS3J5.5GK-WB
General Information
Product Category
Air Compressor - Portable
Engine
HP
5.5
CC
177
Auto Idle
Yes
Engine Brand
Kohler
Starting System
Recoil Start
Engine Low Oil Shut-off
No
Fuel Tank Size
.75
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
11.8
CFM Rated @
90 PSI
Pump Material
Solid Cast Iron
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
135 PSI
Oil Sight Glass
No
Pump Type
Single-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
8 Gallons
Tank Included
Yes
Tank Outlet
1/4 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Portable
Weight
195 Pounds
Certification
UL/CSA/ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
43 Inches
Product Width
18 Inches
Product Height
24 Inches
Power Type
Gas
UPC
678384680011
