How to Pick the Perfect Contractor Twin Stack Compressor
There is your typical consumer-grade twin stack air compressor.And then, there'...
Hover to zoom
1 Of 5
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Joshua, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Contractor
Style
Twin Stack
CFM
4.4
Tank Size
4.5
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
- Cast-Iron Construction
- Designed for the toughest 100% continuous duty applications
- Oil-Lube Pump
- Has double the life of similar oil-free pumps
- Job Site Uses
- Great for trim, roofing, decking, framing, sheathing, etc
- 4-Gallon Twin Stack Tank
- Convenient and efficient air storage system
- Cold Season Ready
- All season select lubricant and low amp draw
- Lightweight and Compact
- Easily transport this unit from job site to job site
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
P1IU-A9
General Information
Product Category
Air Compressor - Portable
Motor
Voltage
120 Volt AC
Phase
1-Phase
dBA
dBA
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
79
Magnetic Starter
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Amp Draw
15
Engine
HP
2
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
4.4
CFM Rated @
90 PSI
Pump Material
Aluminum w/ Cast Iron Sleeve
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
135 PSI
Oil Sight Glass
No
Pump Type
Single-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Direct Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
4.5 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Portable
Weight
77 Pounds
Certification
CSA
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
19 Inches
Product Width
19 Inches
Product Height
19 Inches
Power Type
Electric
UPC
678384729499
Reviews
(30)
Ingersoll Rand P1IU-A9 Reviews & Ratings
Product Q&A
(2)
Product Questions
Answered by Joshua, the Air Compressor Expert
How many amps does this pull?
Grady C.
from Texas
February 26, 2020
I'm looking to replace my Ingersoll Rand model #DD2T2 but can't find that model anywhere. Does Ingersoll make the same compressor with a different model number?
from
April 26, 2011
How-To Articles
Electric Generators Direct Contest
Thank you so much to everyone who entered the Powered For Anything Contest Give...
How to Pick the Perfect Twin-Stack Compressor
You don't have to be Tim "The Tool Man" Taylor to take on home improvement task...
Power Equipment How-To Library
Articles, Tips and Buying Guides from Our Experts
Manuals
P1IU-A9
Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery

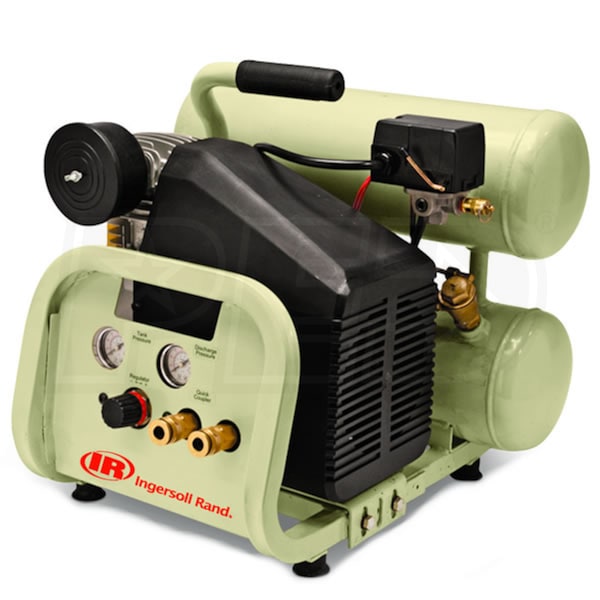

Ingersoll Rand 2-HP 4-Gallon Contractor Twin Stack Air Compressor
