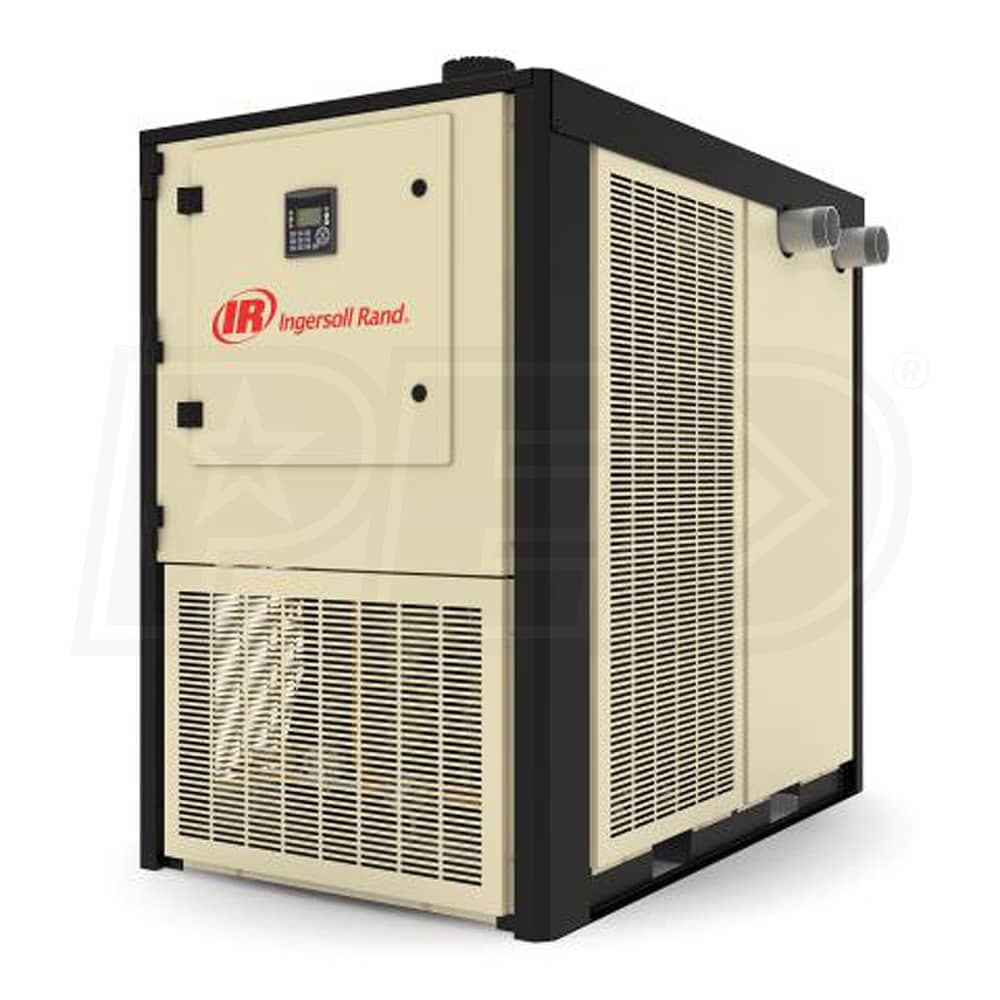

Ingersoll Rand 500 CFM Cycling Refrigerated Dryer w/ Integrated Filters

Model:

DA850NVCA40G000

Write A Review
$16,639.99
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days
Ingersoll Rand 500 CFM Cycling Refrigerated Dryer w/ Integrated Filters
Ingersoll Rand 500 CFM Cycling Refrigerated Dryer w/ Integrated Filters
Model: DA850NVCA40G000
$16,639.99
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Style

Refrigerated

Dryer Voltage

460V 3-Phase

Air Dryer CFM

500
    Ingersoll Rand introduces the next evolution in sustainable and reliable air treatment solutions with the High Efficiency Cycling Dryers, D-NVC Series. These dryers incorporate cutting-edge technology that utilizes R513A refrigerant with a low Global Warming Potential (GWP).

    Building on Ingersoll Rand’s legacy of innovation in air treatment, the D-NVC Series sets a new benchmark in dryer performance. Featuring integrated pre- and post-filtration, rugged construction, and intelligent microprocessor controls, these dryers are designed to deliver exceptional efficiency, reliability, and environmental stewardship. The D-NVC Series empowers operations to meet uptime demands and sustainability goals—without compromise.

  • Reduced Power Consumption
  • Significant energy savings, with up to 35.7% improvement
  • Meet Sustainability Goals
  • Reduces refrigerant charge volume by up to 45% and utilize low Global Warming Potential (GWP) R513A refrigerant
  • Steady Dew Point Performance
  • Delivers reliable pressure dew point (PDP) performance of 39°F for consistent moisture control
  • Pressure Drop Reduction
  • Up to 50.7% lower pressure drop for improved system efficiency
  • Innovative Design
  • Features patented heat exchanger with integral filtration for superior moisture and particulate removal
  • Safety Standards Compliance
  • Certified to UL60335-1, UL 60335-2-40, CSA 22.2 #60335-1, and CSA 22.2 #60335-2-40 for maximum safety and reliability
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

DA850NVCA40G000
specs product image PID-176116
General Information
Product Category
Air Compressor Accessories
Filter
High Efficiency
Yes
Air Dryer
Dryer Voltage
460V 3-Phase
Air Dryer CFM Learn More
Air Dryer CFM
All compressed air dryers have a maximum drying capacity expressed in Cubic Feet Per Minute (CFM)
500
Max Inlet Temp. Rating Learn More
Max Inlet Temp. Rating
The highest temperature the compressed air can be passing through the dryer for the dryer to operate properly and effectively
120
Max Ambient Temp. Rating Learn More
Max Ambient Temp. Rating
Ambient temperature is the air temperature of any object or environment where equipment is stored
113
Non-Cycling Learn More
Non-Cycling
Non-cycling refrigerated air dryers have refrigeration compressors that start as soon as you turn the dryer on ― and don't stop until you turn the dryer off. They are less expensive than cycling dryers and are a good choice for applications where they will constantly run at full capacity
No
Inlet Fittings
2"
Outlet Fittings
2"
Aftercooler
No
Pre-Filter
No
Post-Filter
No
Wall Mountable
No
Alarm Lights
Yes
Auto Drain Learn More
Auto Drain
Auto drain or drip leg drain used to drain air line of condensate and water
No
Regenerative
No
High Temp Learn More
High Temp
Dryers that are specifically designed to handle higher inlet temperatures than regular dryers. Typically paired with a piston or reciprocating air compressor
No
Overview
Product Category
Air Compressor Accessories
Weight
1341 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
41.4 Inches
Product Width
57.5 Inches
Product Height
59.8 Inches
Power Type
Electric
UPC
850079610019
