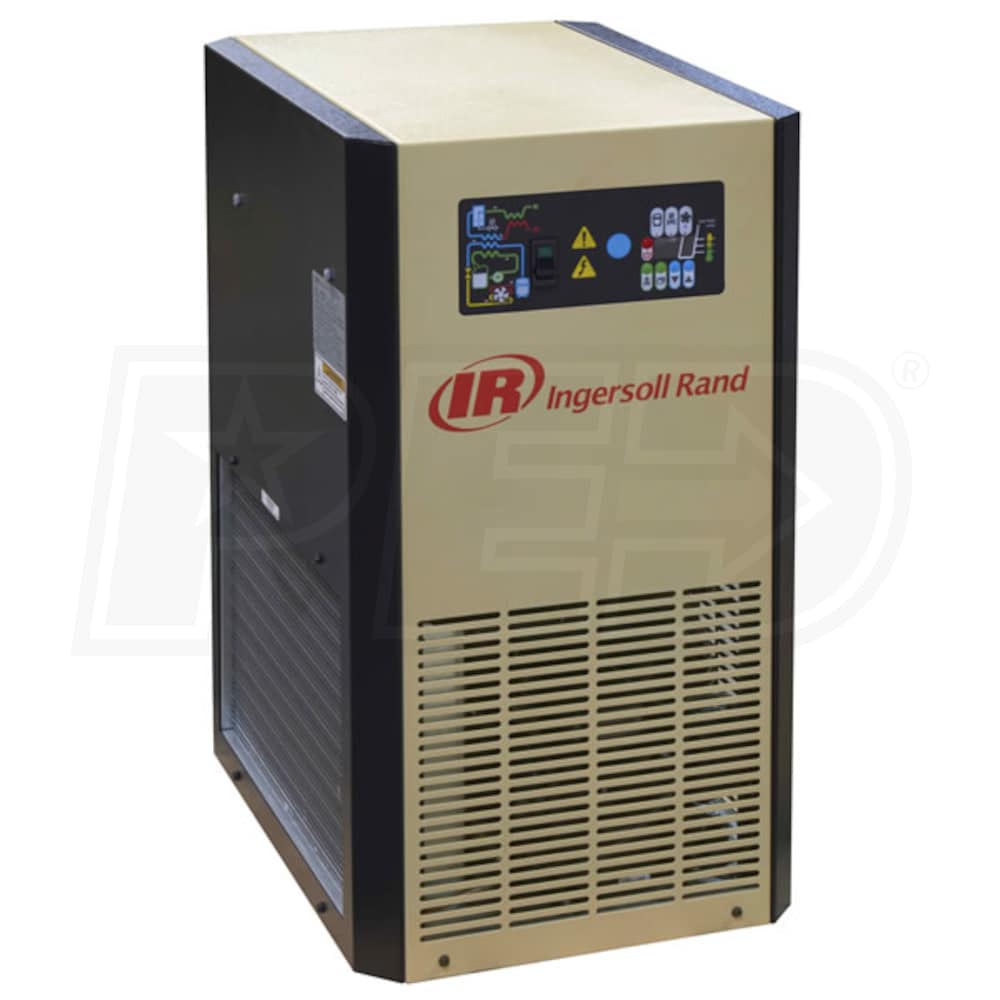

Ingersoll Rand D-EC High Efficiency Cycling Refrigerated Air Dryer 5HP (18 CFM)

Model:

D31ECA100

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Try this product instead
Ingersoll Rand D-EC High Efficiency Cycling Refrigerated Air Dryer 5HP (18 CFM)
Ingersoll Rand D-EC High Efficiency Cycling Refrigerated Air Dryer 5HP (18 CFM)
Model: D31ECA100
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Style

Refrigerated

Air Dryer CFM

18
  • Multi-Layer Heat Exchanger
  • Provides high heat transfer efficiency
  • Reduces compressor run time & energy costs
  • Thermal Mass Cold Energy Storage
  • Reduces dryer compressor run time
  • Compact Size
  • Premium components provide years of dependable operation
  • Digital Controller
  • Microprocessor automatically deactivates during low load times
  • Single point connections for plug-and-play installation
  • Efficient Refrigeration Condenser
  • Dry, high quality compressed air with maximum energy savings
  • R134a Refrigerant
  • Zero ozone depletion potential minimizes environmental impact
  • Drain Isolation Valve With Timed Solenoid Drain
  • Automatic maintenance for ease of operation
  • Perfect Match For Ingersoll Rand High Efficiency Compressors
  • Effectively treats air when demand fluctuates on a regular basis
  • Uses only .43 operating KW per hour at full capacity
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

D31ECA100
specs product image PID-11028
Engine
HP
5
Motor
Voltage
115 Volt AC
Phase
1-Phase
Amp Draw
5.77
Filter
High Efficiency
Yes
Air Dryer
Air Dryer CFM Learn More
Air Dryer CFM
All compressed air dryers have a maximum drying capacity expressed in Cubic Feet Per Minute (CFM)
18
Max Inlet Temp. Rating Learn More
Max Inlet Temp. Rating
The highest temperature the compressed air can be passing through the dryer for the dryer to operate properly and effectively
100
Max Ambient Temp. Rating Learn More
Max Ambient Temp. Rating
Ambient temperature is the air temperature of any object or environment where equipment is stored
100
Non-Cycling Learn More
Non-Cycling
Non-cycling refrigerated air dryers have refrigeration compressors that start as soon as you turn the dryer on ― and don't stop until you turn the dryer off. They are less expensive than cycling dryers and are a good choice for applications where they will constantly run at full capacity
No
Inlet Fittings
1/2"
Outlet Fittings
1/2"
Aftercooler
No
Pre-Filter
No
Post-Filter
No
Wall Mountable
Yes
Alarm Lights
Yes
Auto Drain Learn More
Auto Drain
Auto drain or drip leg drain used to drain air line of condensate and water
Yes
Regenerative
No
High Temp Learn More
High Temp
Dryers that are specifically designed to handle higher inlet temperatures than regular dryers. Typically paired with a piston or reciprocating air compressor
No
Overview
Weight
85 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
19.69 Inches
Product Width
15.59 Inches
Product Height
26.05 Inches
Power Type
Electric
