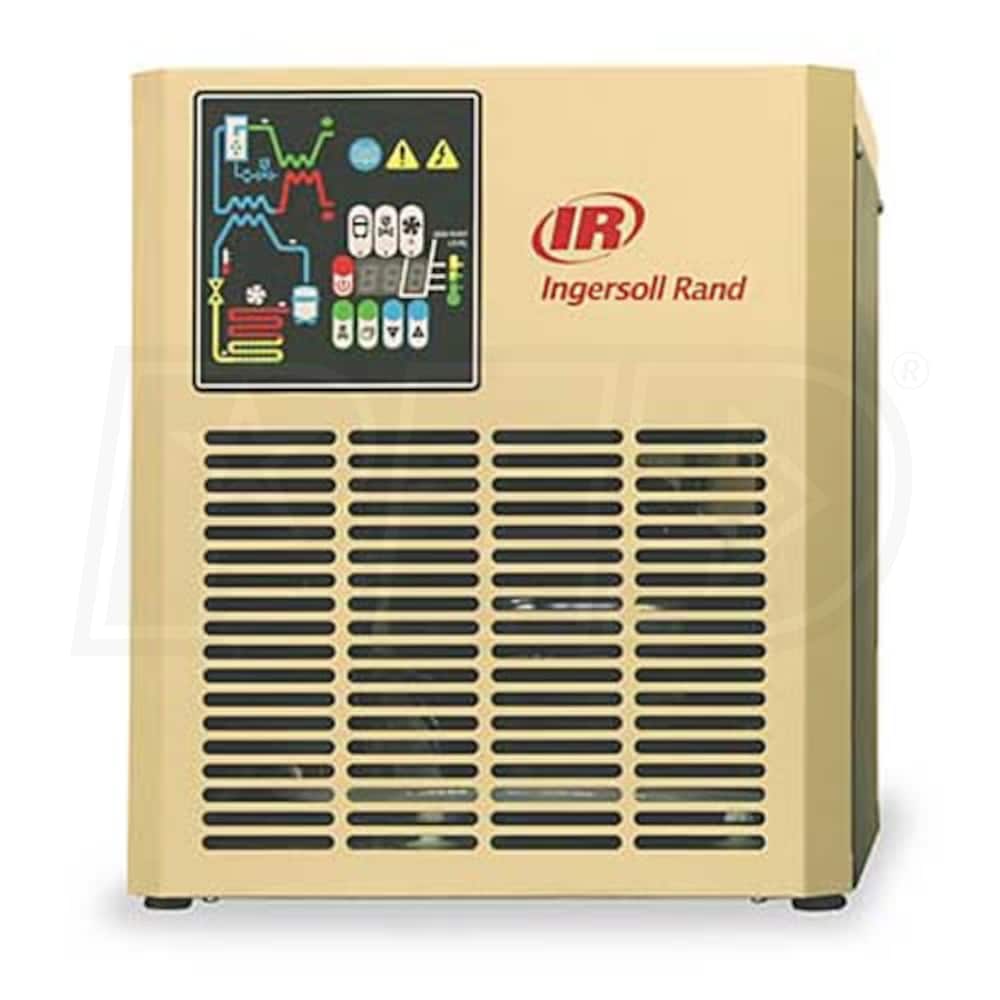

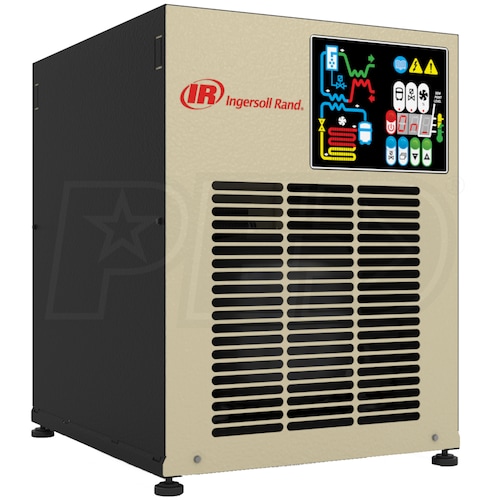

Ingersoll Rand Non-Cycling Refrigerated Air Dryer 3.5HP (7 CFM)

Model:

D12IN

Write A Review
$979.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships Wednesday, Oct 16th
Shipping to60601

Ingersoll Rand Non-Cycling Refrigerated Air Dryer 3.5HP (7 CFM)
Ingersoll Rand Non-Cycling Refrigerated Air Dryer 3.5HP (7 CFM)
Model: D12IN
$979.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Style

Refrigerated

Dryer Voltage

115V 1-Phase

Air Dryer CFM

7

Rated HP

3.5


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • General Purpose Filter Required In Front Of Dryer For Valid Warranty
  • For Use With Compressors With Aftercoolers
  • Keeps damp air from rusting tools & washing away lubricants
  • ISO Class 6 Dryer Is Reliable And Operationally Efficient
  • 7 CFM with exceptionally low pressure drop; 3-5 HP motor
  • Integral stainless steel moisture separation
  • Continuous Pressure Class H Dew Point Performance
  • Optimized pressure 50°F dew point
  • Temperature driven variable speed fan for continuous heat removal
  • Electronic solenoid drain valve for optimal performance
  • User Friendly Controls
  • Simple, easy to read control panel uses a color coded diagram
  • Environmentally Friendly
  • Uses 115V, 1 phase, 1.78 amp power and R134A refrigerant
  • Sturdy, powder coated finish
  • Aluminum braze plate heat exchanger
  • Professional Features
  • Maximum pressure of 203PSI
  • Maximum inlet temperature of 140°F; maximum ambient temp 122°F
  • 3/8" NPT inlet & outlet fittings
  • Installation of an upstream 1.0 micron prefilter is recommended
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

D12IN
specs product image PID-2424
General Information
Product Category
Air Compressor Accessories
Air Dryer
Dryer Voltage
115V 1-Phase
Air Dryer CFM Learn More
Air Dryer CFM
All compressed air dryers have a maximum drying capacity expressed in Cubic Feet Per Minute (CFM)
7
Max PSI Learn More
Max PSI
The most amount of PSI that be passed through a dryer
203
Max Inlet Temp. Rating Learn More
Max Inlet Temp. Rating
The highest temperature the compressed air can be passing through the dryer for the dryer to operate properly and effectively
140
Max Ambient Temp. Rating Learn More
Max Ambient Temp. Rating
Ambient temperature is the air temperature of any object or environment where equipment is stored
122
Inlet Fittings
3/8"
Outlet Fittings
3/8"
Aftercooler
No
Pre-Filter
No
Post-Filter
No
Wall Mountable
No
Alarm Lights
Yes
Auto Drain Learn More
Auto Drain
Auto drain or drip leg drain used to drain air line of condensate and water
Yes
Regenerative
No
High Temp Learn More
High Temp
Dryers that are specifically designed to handle higher inlet temperatures than regular dryers. Typically paired with a piston or reciprocating air compressor
No
Rated HP Learn More
Rated HP
Possible corresponding compressor HP
3.5
Overview
Product Category
Air Compressor Accessories
Weight
40 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
16 Inches
Product Width
12 Inches
Product Height
16 Inches
Power Type
Electric
UPC
678384317986
