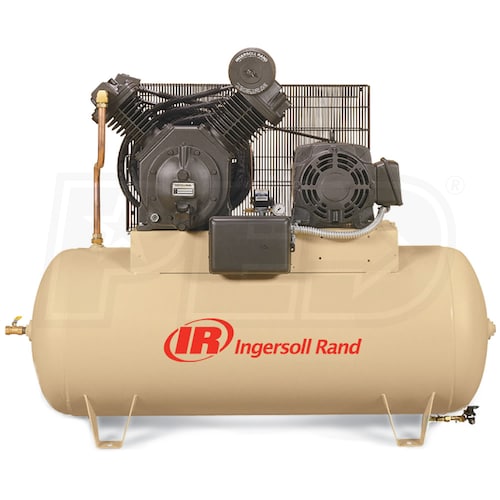

Ingersoll Rand 15-HP 120-Gallon Two-Stage Air Compressor (230V 3-Phase) Value Plus Package
Model:
7100E15VP-230
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Commercial
Voltage
230 Volt AC
Phase
3-Phase
CFM
50
Tank Size
120
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
- Unit Is Too Large For Liftgate Service, Must Have A Shipping Dock Or Forklift
- Durable Cast Iron Design
- Provides 100% duty operation
- Precision Engineered Components
- Deliver maximum performance & reliability

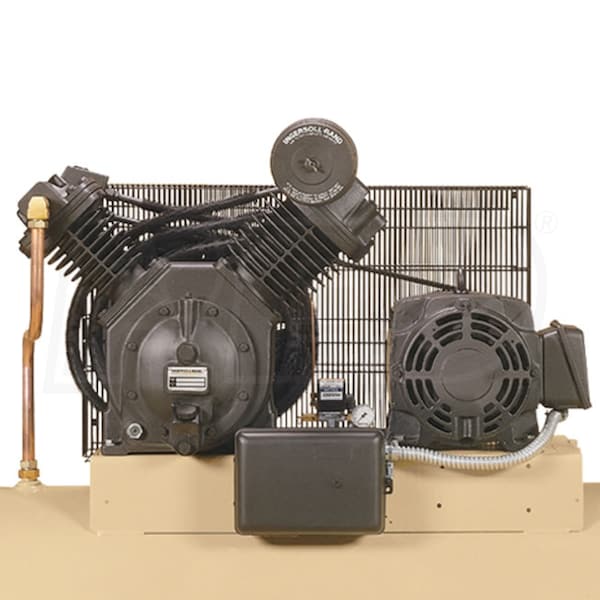

- Individually Cast Cylinders & Overhung Crankshaft
- One-piece connecting rod for easy maintenance & service
- High efficiency finger valves provide consistent air delivery
- Value Pro Package

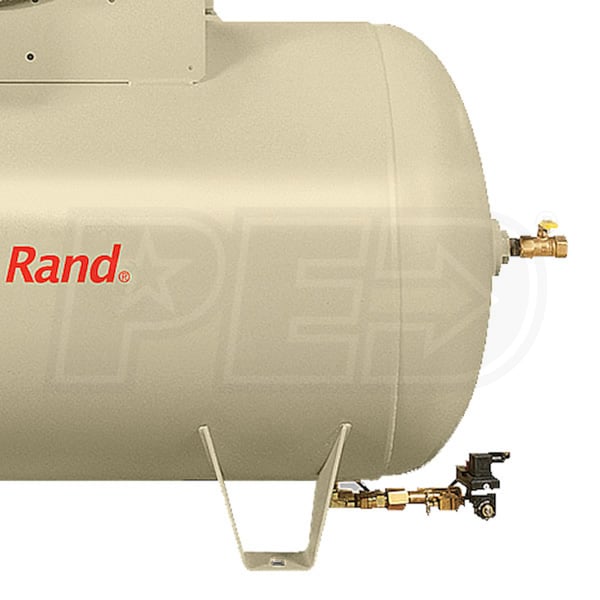

- Electric drain keeps condensation to a minimum
- Air cooled aftercooler for less line moisture
- 175 PSIG Maximum Operating Pressure
- Ideal for applications requiring high air capacity & pressure
- 1 Year Factory Warranty
- Extends to 2 years using IR All Season Select Synthetic lubricant
- IR Start Up Kit Model: 32305898 must be added at time of air compressor purchase
- Mounted Motor Starter Included
- No need to purchase an additional starter
- Vibration Isolators Sold Separately
- IR Installation Kit also includes foundation bolts & hose
- Extends tank warranty to 5 years when added at time of purchase
- Ingersoll Rand Reciprocating Compressors Ship Dry
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
7100E15VP-230
General Information
Product Category
Air Compressor - Stationary
Motor
Voltage
230 Volt AC
Phase
3-Phase
Magnetic Starter
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
Yes
Amp Draw
42
Recommended Breaker
Consult Certified Electrician
Engine
HP
15
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
50
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
120 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
Yes
Tank Orientation
Horizontal
Overview
Product Category
Air Compressor - Stationary
Weight
1297 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
83 Inches
Product Width
36 Inches
Product Height
65 Inches
Power Type
Electric
