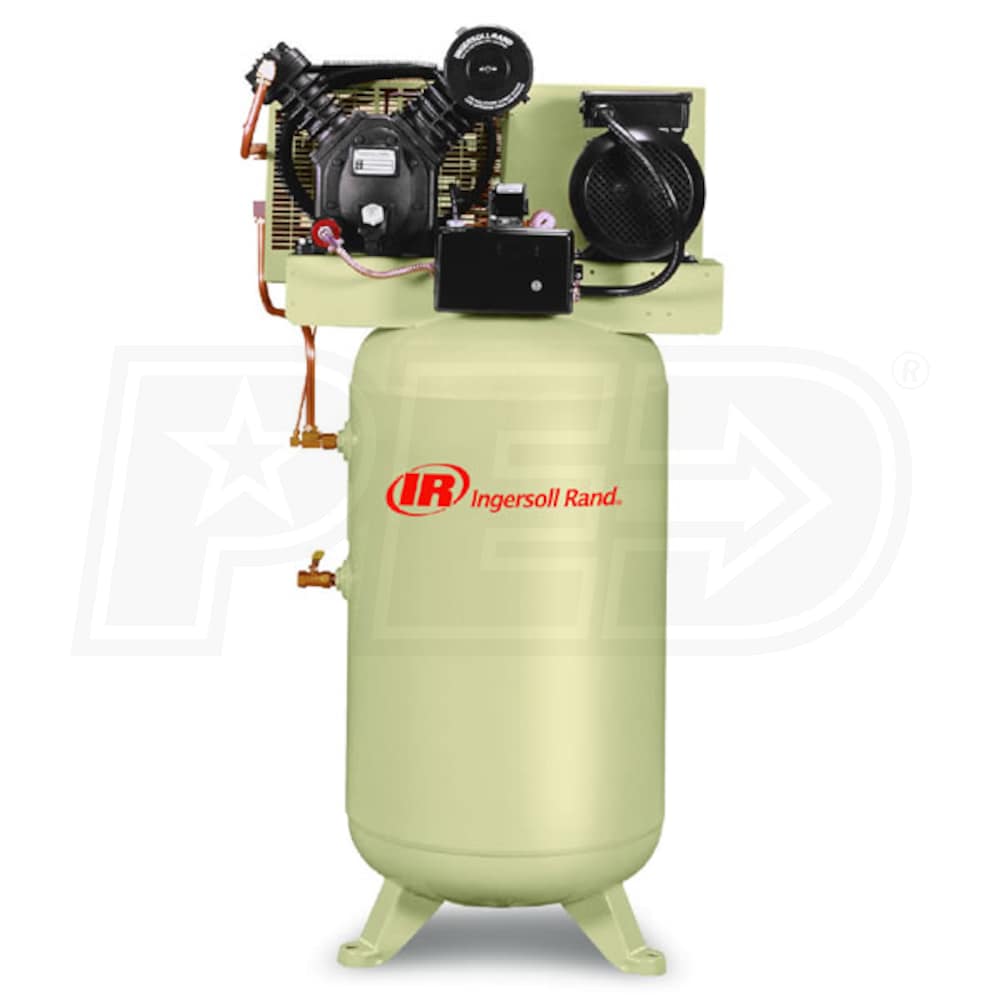

Ingersoll Rand Type 30 7.5-HP 80-Gallon Two-Stage Air Compressor (230V 1-Phase) Fully Packaged
Model: 2475N7.5-P
+
Share This Product
-
Product Description
-
37Reviews
-
6Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Grade
Style
CFM
24
CFM Rated @ 175 PSI
Tank Size
80
Gallons
Grade
Commercial
CFM
24 CFM Rated @ 175 PSI
Tank Size
80 Gallons
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- Fully Packaged 230V 1-Phase Power Air Compressor

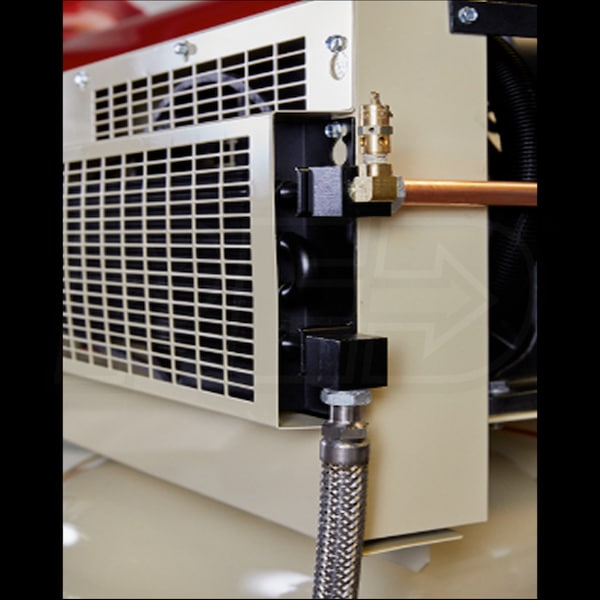

- Air cooled aftercooler (mounted & piped) reduces moisture

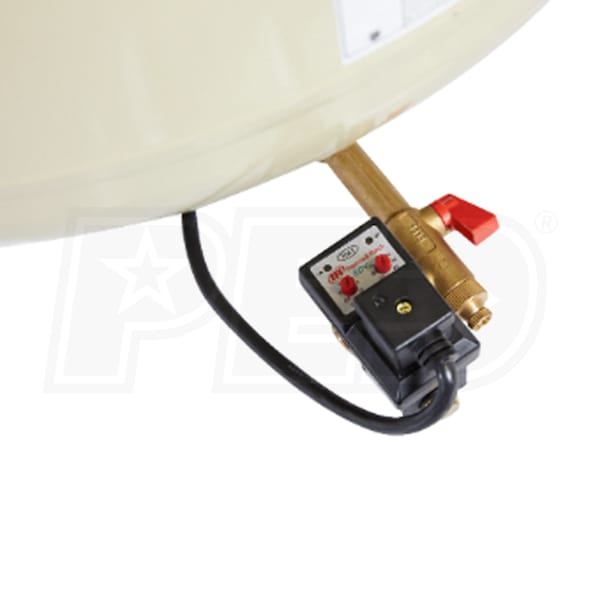

- Electric drain valve (mounted & piped) for easy maintenance

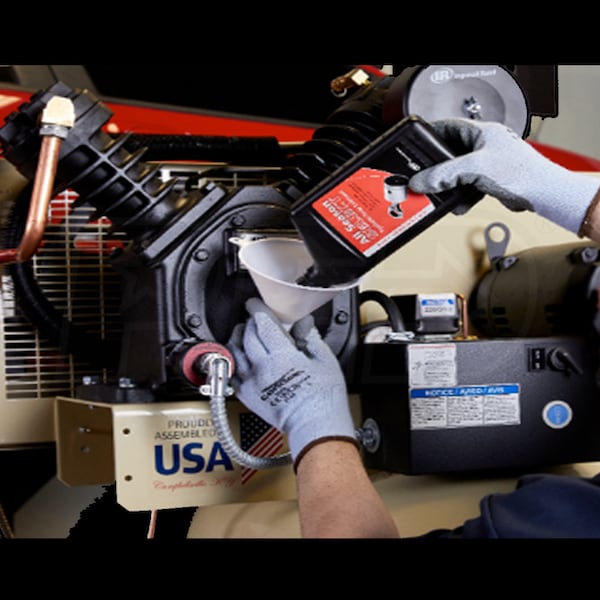

- Low oil level switch for pump protection

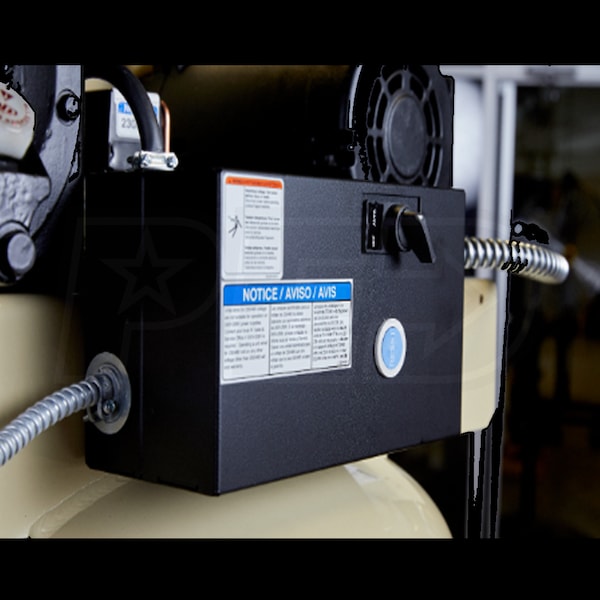

- E-Series Magnetic Motor Starter (3450 RPM)
- Already installed to protect the motor
- Cast Iron Cylinders & Pump
- Delivers 24 CFM at 175 PSI
- Continuous-Duty Operation

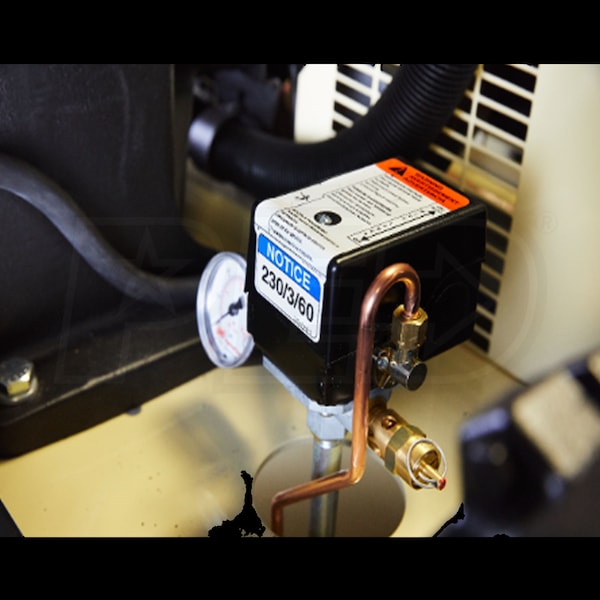

- Automatic start/stop control with pressure switch
- Reliable oversized bearings & cast-iron balanced belt wheel

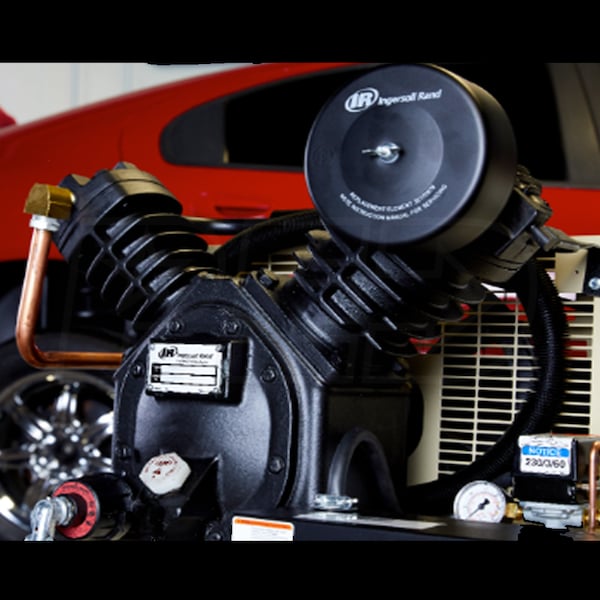

- V-Block Deep Finned Cylinders
- Provides 360° cooling for lower operating temperature
- Low oil level shutdown switch protects the pump
- Air cooled aftercooler produces drier air
- 80 Gallon ASME Receiver
- Electric drain valve reduces maintenance
- OSHA Compliant
- Fully enclosed flywheel, belt and motor sheave
- Fully tested & UL/CSA certified
- Ingersoll Rand Reciprocating Compressors Ship Dry
- Use of the Ingersoll Rand Maintenance Kit extends the Factory Warranty by 1 year
Specifications
Motor
Voltage
230 Volt AC
Phase
1-Phase
Magnetic Starter
Yes
Amp Draw
40
Recommended Breaker
Consult Certified Electrician
Engine
HP
7.5
Pump
CFM
24
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
No
Pump Type
Two-Stage
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Yes
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
Yes
Tank Orientation
Vertical
Overview
Weight
625 Pounds
Certification
UL/CSA/ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
26 Inches
Product Width
38 Inches
Product Height
70 Inches
Power Type
Electric
UPC
678384655569
Additional Model Numbers
2475N7.5-FP, 2475N7.5-P
Grade
Style
CFM
24
CFM Rated @ 175 PSI
Tank Size
80
Gallons
Grade
Commercial
CFM
24 CFM Rated @ 175 PSI
Tank Size
80 Gallons
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- Fully Packaged 230V 1-Phase Power Air Compressor
- Air cooled aftercooler (mounted & piped) reduces moisture
- Electric drain valve (mounted & piped) for easy maintenance
- Low oil level switch for pump protection
- E-Series Magnetic Motor Starter (3450 RPM)
- Already installed to protect the motor
- Cast Iron Cylinders & Pump
- Delivers 24 CFM at 175 PSI
- Continuous-Duty Operation
- Automatic start/stop control with pressure switch
- Reliable oversized bearings & cast-iron balanced belt wheel
- V-Block Deep Finned Cylinders
- Provides 360° cooling for lower operating temperature
- Low oil level shutdown switch protects the pump
- Air cooled aftercooler produces drier air
- 80 Gallon ASME Receiver
- Electric drain valve reduces maintenance
- OSHA Compliant
- Fully enclosed flywheel, belt and motor sheave
- Fully tested & UL/CSA certified
- Ingersoll Rand Reciprocating Compressors Ship Dry
- Use of the Ingersoll Rand Maintenance Kit extends the Factory Warranty by 1 year
Specifications
Motor
Voltage
230 Volt AC
Phase
1-Phase
Magnetic Starter
Yes
Amp Draw
40
Recommended Breaker
Consult Certified Electrician
Engine
HP
7.5
Pump
CFM
24
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
No
Pump Type
Two-Stage
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Yes
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
Yes
Tank Orientation
Vertical
Overview
Weight
625 Pounds
Certification
UL/CSA/ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
26 Inches
Product Width
38 Inches
Product Height
70 Inches
Power Type
Electric
UPC
678384655569
Additional Model Numbers
2475N7.5-FP, 2475N7.5-P
Product Specs
+−
Specifications
Motor
Voltage
230 Volt AC
Phase
1-Phase
Magnetic Starter
Yes
Amp Draw
40
Recommended Breaker
Consult Certified Electrician
Engine
HP
7.5
Pump
CFM
24
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
No
Pump Type
Two-Stage
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Yes
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
Yes
Tank Orientation
Vertical
Overview
Weight
625 Pounds
Certification
UL/CSA/ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
26 Inches
Product Width
38 Inches
Product Height
70 Inches
Power Type
Electric
UPC
678384655569
Additional Model Numbers
2475N7.5-FP, 2475N7.5-P
Product Q&A
(6)
+−
Search Product Q&A's
Answered by Joshua. the Air Compressor Expert
+−
What is the continuous run time on this unit?
Matthew M.
from New York
March 29, 2020
Answer
This unit is rated for 100% duty cycle with the OEM coolant and proper maintenance. The pump life is rated for 15,000 run hours.
Was this answer helpful?
Yes
0
No
0
+−
Will I need a water / particle air filter from the tank to my air hose?
Matthew M.
from New York
February 27, 2020
Answer
I'm a big fan of Ingersoll Rand's filters. A great one that would accompany this compressor is model FA75IG. We also carry the replacement elements for these filters.
Was this answer helpful?
Yes
0
No
0
+−
Which model is the quietest 80 gal 7.5 hp 120 psi compressor for an indoor shop?
John K.
from Texas
February 12, 2020
Answer
Model ESP07V080V1 will be the quietest option we offer. Its decibel rating ranges from 59-65 decibels (depending on its surroundings).
Was this answer helpful?
Yes
0
No
0
+−
What is the required amp draw that needs to be wired?
Johnny
from Washington
October 20, 2019
Answer
The amp draw for model 2475N7.5-FP is 40 amps.
Was this answer helpful?
Yes
1
No
0
+−
What's the electrical spec for an 80-gallon compressor?
Bill
from North Carolina
August 19, 2019
Answer
It varies from brand to brand, but for this particular compressor, it is a 230V 1-Phase air compressor with an amp draw of 40.
Was this answer helpful?
Yes
0
No
0
+−
What does the term "fully packaged" on this product, Model 2475N7.5-FP, mean?
John Schiavone
from New York
August 05, 2012
Answer
Fully Packaged models include:
•E-series motor starter (mounted & wired)
•Relief valve & discharge ball valve (mounted & piped)
•Air cooled aftercooler (mounted & piped)
•Low oil level shutdown switch (mounted & wired)
•Electric drain valve (mounted & piped)
•Automatic start/stop control with pressure switch
•E-series motor starter (mounted & wired)
•Relief valve & discharge ball valve (mounted & piped)
•Air cooled aftercooler (mounted & piped)
•Low oil level shutdown switch (mounted & wired)
•Electric drain valve (mounted & piped)
•Automatic start/stop control with pressure switch
Was this answer helpful?
Yes
2
No
0
