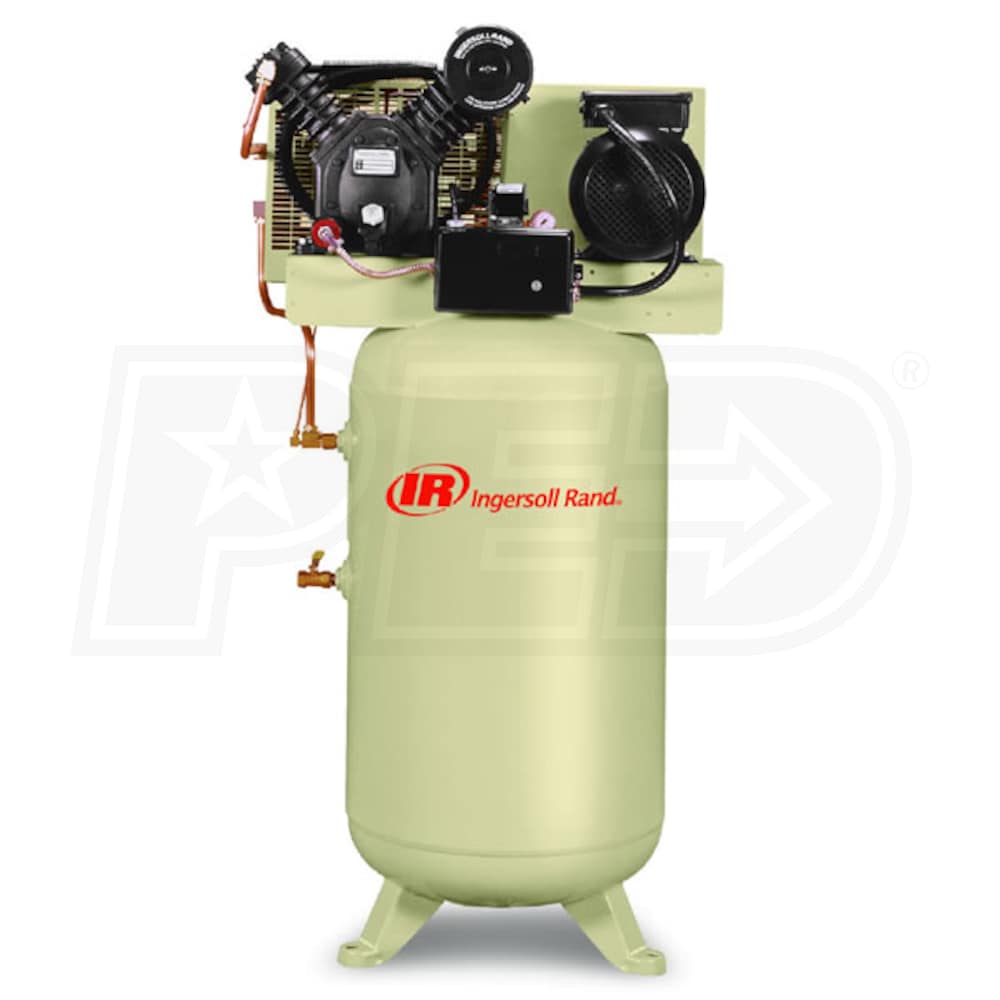

Ingersoll Rand Type 30 7.5-HP 80-Gallon Two-Stage Air Compressor (208V 3-Phase) Fully Packaged

Ingersoll Rand Type 30 7.5-HP 80-Gallon Two-Stage Air Compressor (208V 3-Phase) Fully Packaged
Our Price
Compare Prices
Shipping Info
Model: 2475N7.5-200.3-FP
(Based on expert analysis, manufacturer ratings and customer reviews)
4.8 out of 54.8 out of 54.8 out of 54.8 out of 54.8 out of 5
Number of Reviews (5)
Write A Review
$2,549.00

Only 2 In-Stock
Ships Friday, Nov 22nd
Shipping Crate Icon
Free Shipping
Phase
Volts
Add-Ons
+$75.00
In-Stock Free Shipping$2,549.00Buy Now
In-Stock Free Freight$2,549.00Visit Site
Only 2 In-Stock
Ships Friday, Nov 22nd
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to Alaska, Hawaii, or any destination outside of the United States
Share
  • Product Description
  • 5
    Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Commercial
Style
Two Stage 3-Phase (208 Volts)
CFM
24
CFM Rated @ 175 PSI
Tank Size
80
Gallons
Grade
Commercial
CFM
24 CFM Rated @ 175 PSI
Tank Size
80 Gallons


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • Fully Packaged
  • E-series motor starter (mounted & wired)
  • Relief valve & discharge ball valve (mounted & piped)
  • Air cooled aftercooler (mounted & piped)
  • Low oil level shutdown switch (mounted & wired)
  • Electric drain valve (mounted & piped)
  • Automatic start/stop control with pressure switch
  • Continuous-Duty Operation
  • 100% cast-iron cylinders and pump
  • Oversized cast-iron balanced belt wheel
  • Oversized industrial-grade bearings
  • V-Block Deep Finned Cylinders
  • Provides 360° cooling for lower operating temperature
  • OSHA Compliant
  • Fully enclosed flywheel, belt and motor sheave
  • Fully Tested
  • All units are prewired and throughly tested prior to shipment
  • Ingersoll Rand Reciprocating Compressors Ship Dry
  • Use of the Ingersoll Rand Maintenance Kit extends the Factory Warranty by 1 year
Specifications
Motor
Voltage
208 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
25.3
Recommended Breaker
Consult Certified Electrician
Engine
HP
7.5
Pump
CFM
24
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
No
Pump Type
Two-Stage
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Yes
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
Yes
Tank Orientation
Vertical
Overview
Weight
611 Pounds
Certification
UL/CSA/ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
26 Inches
Product Width
38 Inches
Product Height
70 Inches
Power Type
Electric
UPC
678384655569
Grade
Commercial
Style
Two Stage 3-Phase (208 Volts)
CFM
24
CFM Rated @ 175 PSI
Tank Size
80
Gallons
Grade
Commercial
CFM
24 CFM Rated @ 175 PSI
Tank Size
80 Gallons


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • Fully Packaged
  • E-series motor starter (mounted & wired)
  • Relief valve & discharge ball valve (mounted & piped)
  • Air cooled aftercooler (mounted & piped)
  • Low oil level shutdown switch (mounted & wired)
  • Electric drain valve (mounted & piped)
  • Automatic start/stop control with pressure switch
  • Continuous-Duty Operation
  • 100% cast-iron cylinders and pump
  • Oversized cast-iron balanced belt wheel
  • Oversized industrial-grade bearings
  • V-Block Deep Finned Cylinders
  • Provides 360° cooling for lower operating temperature
  • OSHA Compliant
  • Fully enclosed flywheel, belt and motor sheave
  • Fully Tested
  • All units are prewired and throughly tested prior to shipment
  • Ingersoll Rand Reciprocating Compressors Ship Dry
  • Use of the Ingersoll Rand Maintenance Kit extends the Factory Warranty by 1 year
Specifications
Motor
Voltage
208 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
25.3
Recommended Breaker
Consult Certified Electrician
Engine
HP
7.5
Pump
CFM
24
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
No
Pump Type
Two-Stage
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Yes
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
Yes
Tank Orientation
Vertical
Overview
Weight
611 Pounds
Certification
UL/CSA/ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
26 Inches
Product Width
38 Inches
Product Height
70 Inches
Power Type
Electric
UPC
678384655569
Product Specs
+
Specifications
Motor
Voltage
208 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
25.3
Recommended Breaker
Consult Certified Electrician
Engine
HP
7.5
Pump
CFM
24
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
No
Pump Type
Two-Stage
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Yes
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
Yes
Tank Orientation
Vertical
Overview
Weight
611 Pounds
Certification
UL/CSA/ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
26 Inches
Product Width
38 Inches
Product Height
70 Inches
Power Type
Electric
UPC
678384655569
