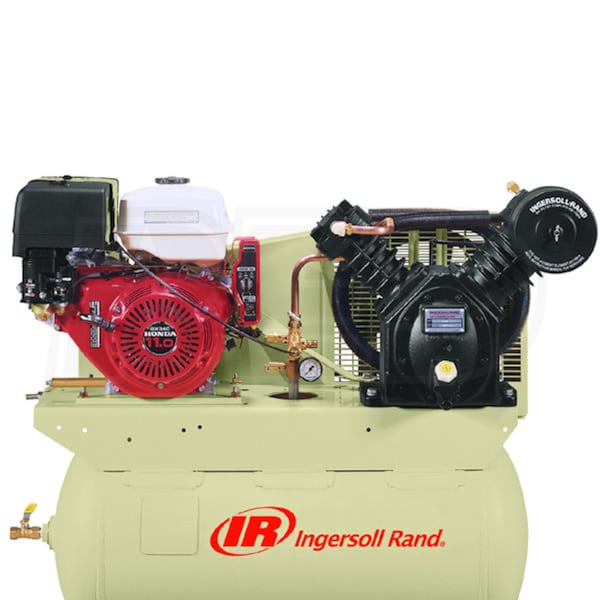

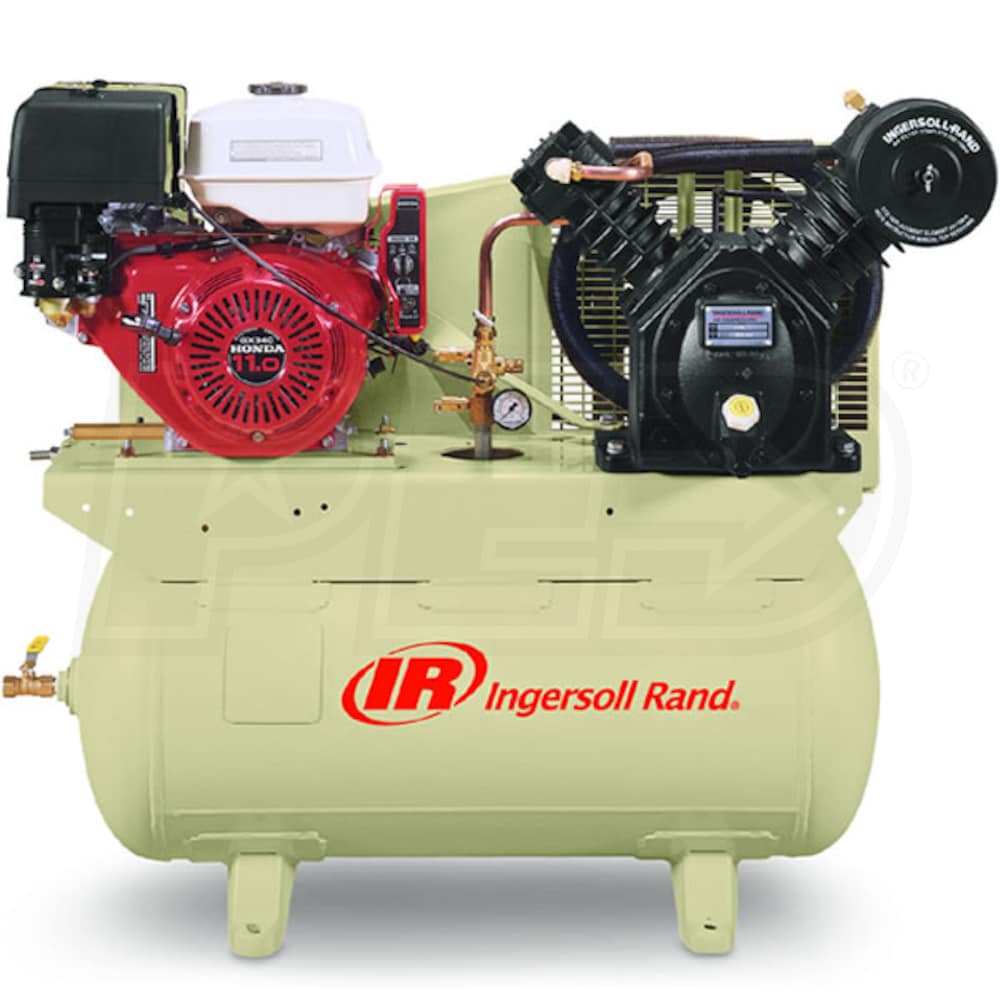

Ingersoll Rand 13-HP 30-Gallon Two-Stage Truck Mount Air Compressor w/ Honda Engine
Model:
2475F13GH
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Contractor
Style
Truck Mount
Engine Brand
Honda GX
CFM
24
Tank Size
30
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
- Honda 13-HP GX390 Series Engine
- Long life, proven durability, runs quiet
- Contractor recommended and approved
- Less maintenance than other engines
- Electric Start
- Easily start your air compressor with a turn of a key
- Battery and cables not included; must be purchased separately
- Built-In Alternator
- Recharges electric start battery
- No need to wire into service trucks electrical system
- Idle Control
- Saves fuel and allows for a quieter operation
- Cast-Iron Construction
- High quality, reliable performance that's built to last
- Recoil Start
- Extra backup starting system incase of a power failure
- Weather-Resistant Paint
- Powder coated finish is tough and stands up to the elements
- American Pride
- Proudly built in the U.S.A.
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
2475F13GH
General Information
Product Category
Air Compressor - Portable
Engine
HP
13
Auto Idle
Yes
Engine Brand
Honda GX
Starting System
12-Volt Key Start w/ Recoil
Engine Low Oil Shut-off
No
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
24
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Oil Sight Glass
No
Pump Type
Two-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
30 Gallons
Tank Outlet
1/2 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
No
Air Dryer
No
Overview
Product Category
Air Compressor - Portable
Weight
430 Pounds
Certification
ASME
Consumer Warranty
1 Year
Product Length
44 Inches
Product Width
22 Inches
Product Height
41 Inches
Power Type
Gas
UPC
738964563025
