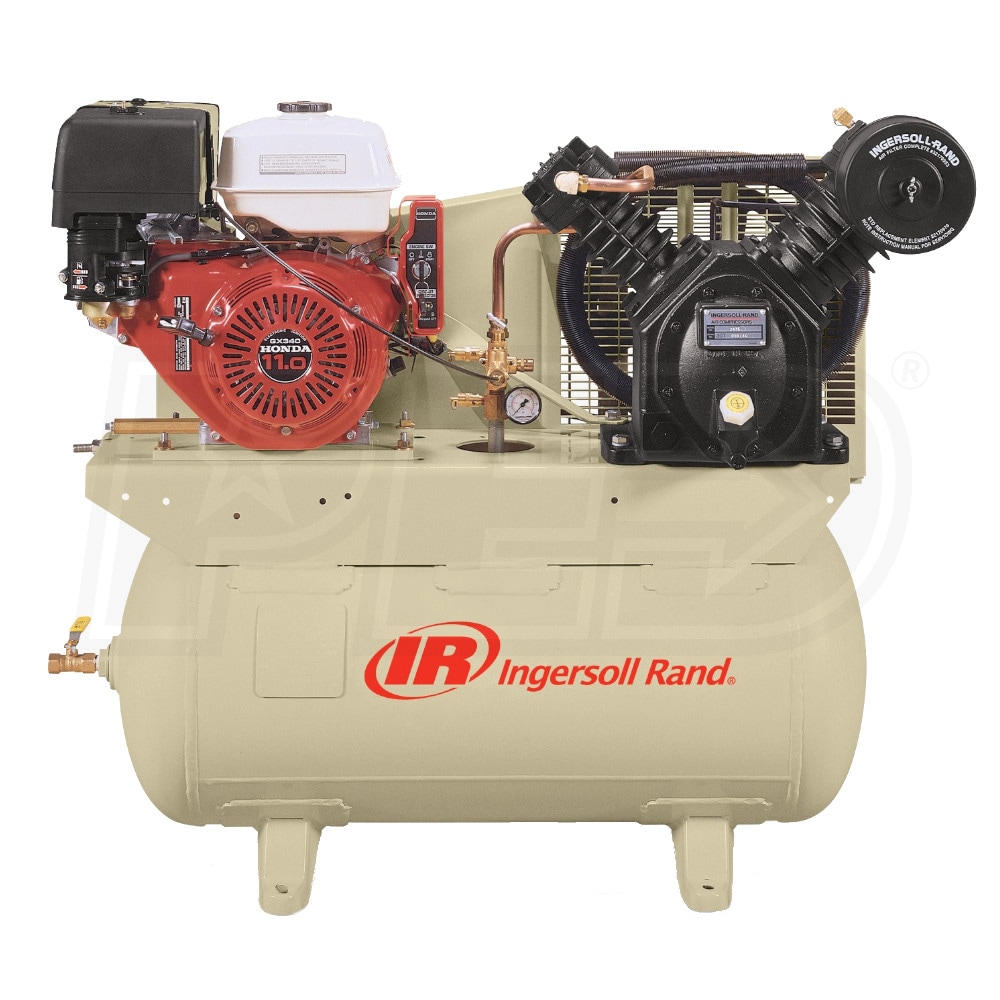

Ingersoll Rand 13-HP 30-Gallon Two-Stage Truck Mount Air Compressor w/ Honda Engine

Model:

2475F13GH

Write A Review
$3,959.99
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships Friday, May 2nd
Shipping to60601

Ingersoll Rand 13-HP 30-Gallon Two-Stage Truck Mount Air Compressor w/ Honda Engine
Ingersoll Rand 13-HP 30-Gallon Two-Stage Truck Mount Air Compressor w/ Honda Engine
Model: 2475F13GH
$3,959.99
Accessories
Specifications
Reviews
Product Q&A
How-To Articles
Manuals

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 1
These accessories are required to properly setup/install this product.
$229.99
Only 1 In-Stock
Optional Accessories 6
$65.00
Factory-Direct
$95.00
Factory-Direct
$395.00
Factory-Direct
$1,763.00
Factory-Direct
Learn More
Subscribe to Save
Increase kit quantity to receive better savings per kit.
Frequency Learn More
Frequency
Select how often you will receive your air filters, we offer many options to meet your air quality standards.
Quantity Learn More
Quantity
This will be how many filters you receive per delivery.
Quantity
$372.00
Factory-Direct

Features

Grade

Contractor

Style

Truck Mount

Engine Brand

Honda GX

CFM

24

Tank Size

30

Ingersoll Rand 13-HP 30-Gallon Two-Stage Truck Mount Air Compressor w/ Honda Engine


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
    California residents see
    WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
    For more information go to: www.p65Warnings.ca.gov

    Specifications

    2475F13GH
    specs product image PID-692
    General Information
    Product Category
    Air Compressor - Portable
    Engine
    HP
    13
    Auto Idle
    Yes
    Engine Brand
    Honda GX
    Starting System
    12-Volt Key Start w/ Recoil
    Engine Low Oil Shut-off
    No
    Pump
    CFM Learn More
    CFM
    Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
    24
    CFM Rated @
    175 PSI
    Pump Material
    Solid Cast Iron
    Max PSI Learn More
    Max PSI
    PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
    175 PSI
    Oil Sight Glass
    No
    Pump Type
    Two-Stage
    After Cooler Learn More
    After Cooler
    An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
    No
    Pump Drive
    Belt Drive
    Oil Type
    Oil Lubricated
    Oil System
    Splash Lubricated
    Pump Low Oil Shut-off Learn More
    Pump Low Oil Shut-off
    Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
    No
    Tank
    Tank Size
    30 Gallons
    Tank Outlet
    1/2 Inch
    Electronic Drain Valve Learn More
    Electronic Drain Valve
    The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
    No
    Tank Orientation
    Horizontal
    Accessories
    Pressure Gauge
    Yes
    Air Dryer
    No
    Overview
    Product Category
    Air Compressor - Portable
    Weight
    430 Pounds
    Certification
    ASME
    Consumer Warranty
    1 Year
    Product Length
    44 Inches
    Product Width
    22 Inches
    Product Height
    41 Inches
    Power Type
    Gas
    UPC
    738964563025
