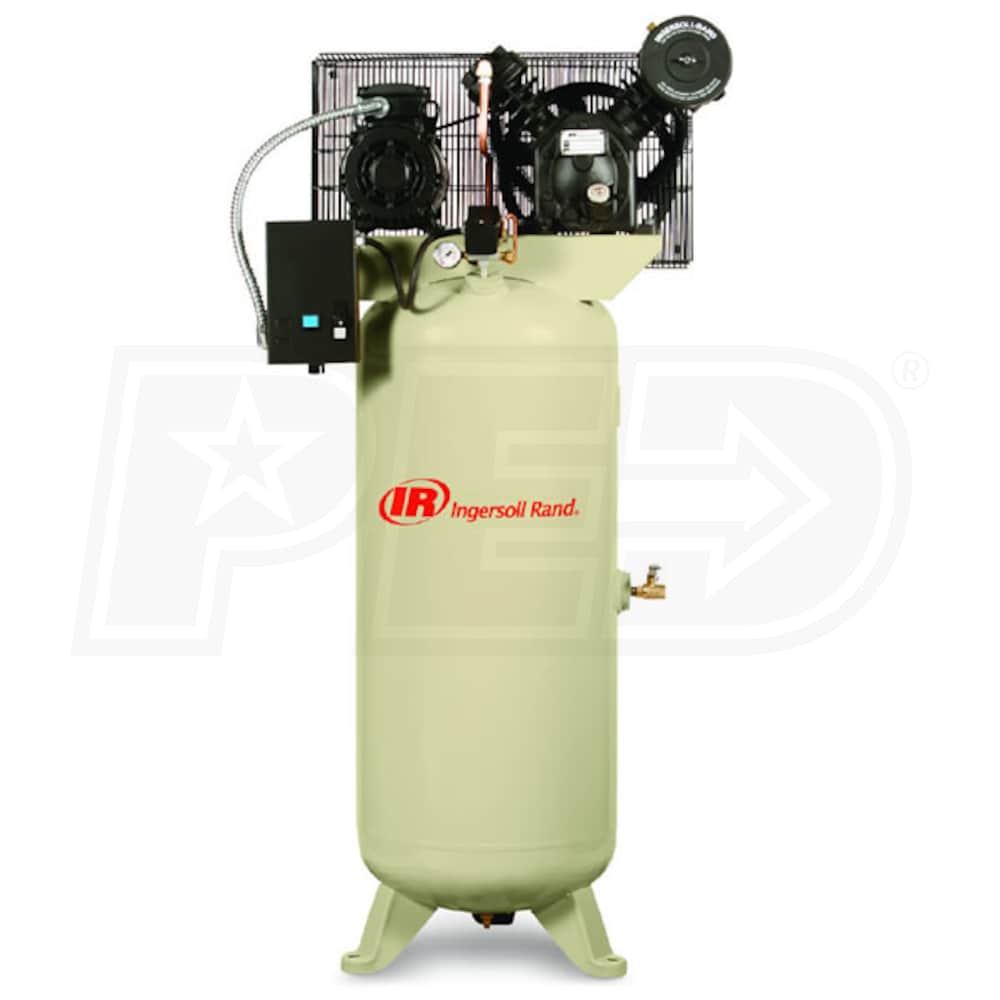

Ingersoll Rand Type 30 5-HP 60-Gallon Two-Stage Air Compressor (208V 3-Phase)
Model:
2340L5.200-3
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Joshua, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Commercial
Voltage
208 Volt AC
Phase
3-Phase
CFM
14
Tank Size
60
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
- Continuous-Duty Operation Two-Stage Air Compressor
- Provides the reliability and performance
- Perfect solution for commercial, automotive, and light industrial applications with intermittent load demand
- 100% Cast-Iron Cylinders & Pump
- Oversized cast-iron balanced belt wheel and industrial grade bearing
- Long-lasting extended pump life designed for over 15,000 hours of trouble-free use
- Heavy-Duty Pump Comp
- 1-piece connection rod for less moving parts increases reliability
- Precision-balanced overhung crankshaft runs smoothly and quietly
- Easy to repair removable cylinders with 360° radial fins eliminate hot s
- High Efficiency Parts:
- High-efficiency stainless steel valves for increased volumetric efficiency
- High-efficiency inlet air filters with sound attenuation baffles
- High-efficiency intercooler lowers compressed air temperature & reduces condensation
- 60-Gallon ASME Receive
- Manual drain valve simplifies servicing
- Ideal for most applications including machine shops, production lines, car washes & repair shops
- OSHA Compliant
- Fully enclosed flywheel, belt and motor sheave
- All units are prewired and fully tested prior to shipment
- Ingersoll Rand Reciprocating Compressors Ship Dry
- Use of the Ingersoll Rand Maintenance Kit extends the Factory Warranty by 1 year
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
2340L5.200-3
General Information
Product Category
Air Compressor - Stationary
Motor
Voltage
208 Volt AC
Phase
3-Phase
Magnetic Starter
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
Yes
Amp Draw
17.5
Recommended Breaker
Consult Certified Electrician
Engine
HP
5
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
14
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Oil Sight Glass
No
Pump Type
Two-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
60 Gallons
Tank Outlet
1/2 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Vertical
Overview
Product Category
Air Compressor - Stationary
Weight
435 Pounds
Certification
UL/CSA/ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
24 Inches
Product Width
33 Inches
Product Height
69 Inches
Power Type
Electric
UPC
678384379335
