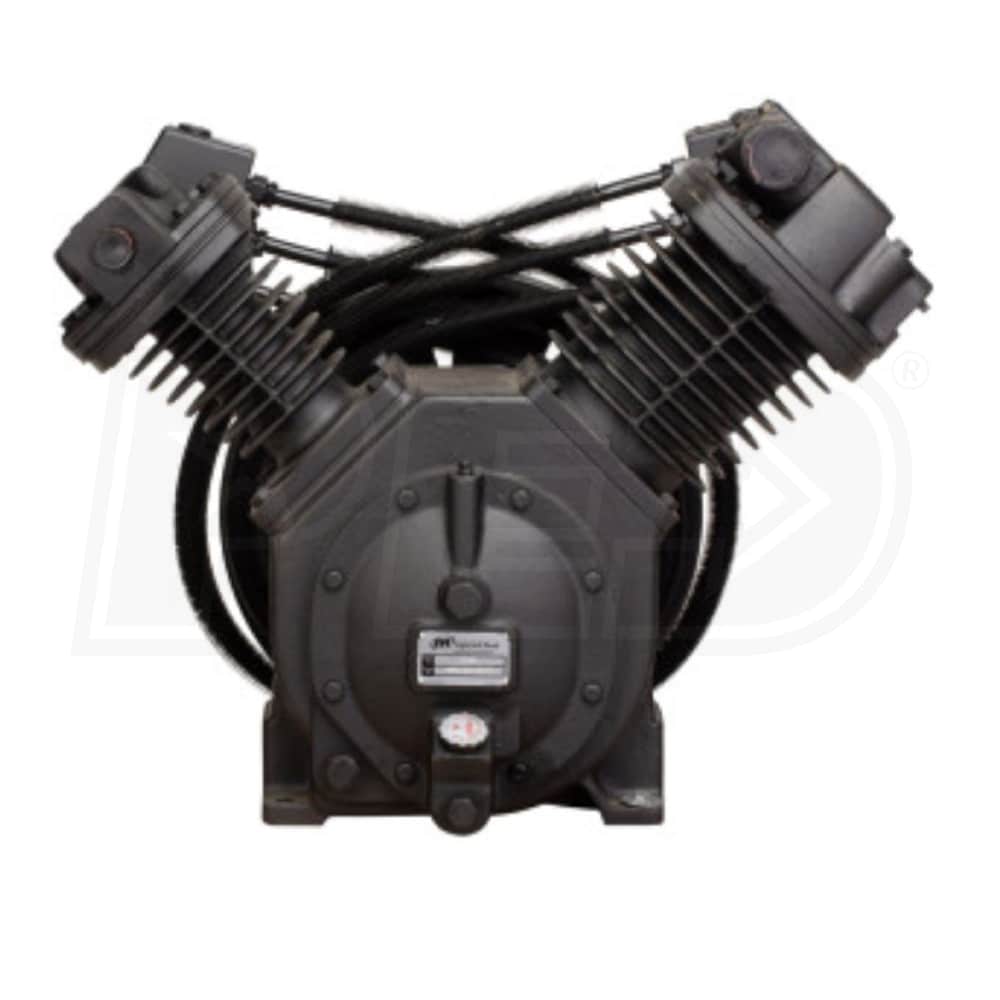

Ingersoll Rand 15-HP Two-Stage Bare V-Twin Air Compressor Pump for 7100V AS&S Compressor (50 CFM @ 175 PSI)

Model:

18002451

Write A Review
$3,495.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days

Ingersoll Rand 15-HP Two-Stage Bare V-Twin Air Compressor Pump for 7100V AS&S Compressor (50 CFM @ 175 PSI)
Ingersoll Rand 15-HP Two-Stage Bare V-Twin Air Compressor Pump for 7100V AS&S Compressor (50 CFM @ 175 PSI)
Model: 18002451
$3,495.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    The AS&S version (auto start and stop) is the Value and Value Plus version. It uses the pressure switch to turn the unit on and off by the tank pressure.  This unit uses the check valve in the tank and an unloader tube to unload.
  • 15-HP Ingersoll Rand 7100V AS&S Electric OEM Replacement Pump
  • Provides maximum performance and efficiency
  • Two-stage splash lubricated belt-driven pump; 175 PSI max
  • Cast iron construction and precision-engineered quality components
  • Durable 2 Cylinder Cast Iron Pump
  • Produces 50.5 CFM @ 125 PSI; 50 CFM @ 175 PSI
  • Easy to repair removable cylinders with 360 degree radial fins to eliminate hot spots
  • Separately cast individually bolted, V-type configuration & precision honed for low oil carryover
  • 1100 Maximum RPM
  • Delivers high performance; 750 minimum RPM
  • 100 deg.F maximum operating temperature
  • Rugged Cast Iron Flywheel
  • Balanced to keep vibration to a minimum
  • Fan type flywheel forces a "cyclone" air blast to provide cooling cylinders and intercooler
  • Continuous-Duty Operation
  • Precision-balanced overhung crankshaft runs smoothly and quietly
  • Oversized cast-iron balanced belt wheel and industrial-grade bearings
  • Durable canister inlet filter, one-piece connecting rod, and reliable stainless steel valves
  • Finned copper intercooler lowers operating temperature, extends pump life & improves efficiency
  • Specifications:
  • Bore: 5.5" & 3"
  • Stroke: 4"
  • Sheave OD: 18"
  • Sheave PD: 17.5"
  • Inlet size: 1.5" NPT
  • Discharge size: 1" NPT
  • Belt Type / Quantity: B/2
  • 80 oz. capacity oil reservoir (Pump oil not included)
  • Compatibility:
  • Only fits Ingersoll Rand 7100V AS&S electric-driven reciprocating compressors
  • 1-Year Limited Manufacturer Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

18002451
specs product image PID-153399
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
50
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off Learn More
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Overview
Product Category
Air Compressor Parts
Weight
460 Pounds
Consumer Warranty
1 Year
Product Length
44 Inches
Product Width
32 Inches
Product Height
32 Inches
UPC
678384024518
