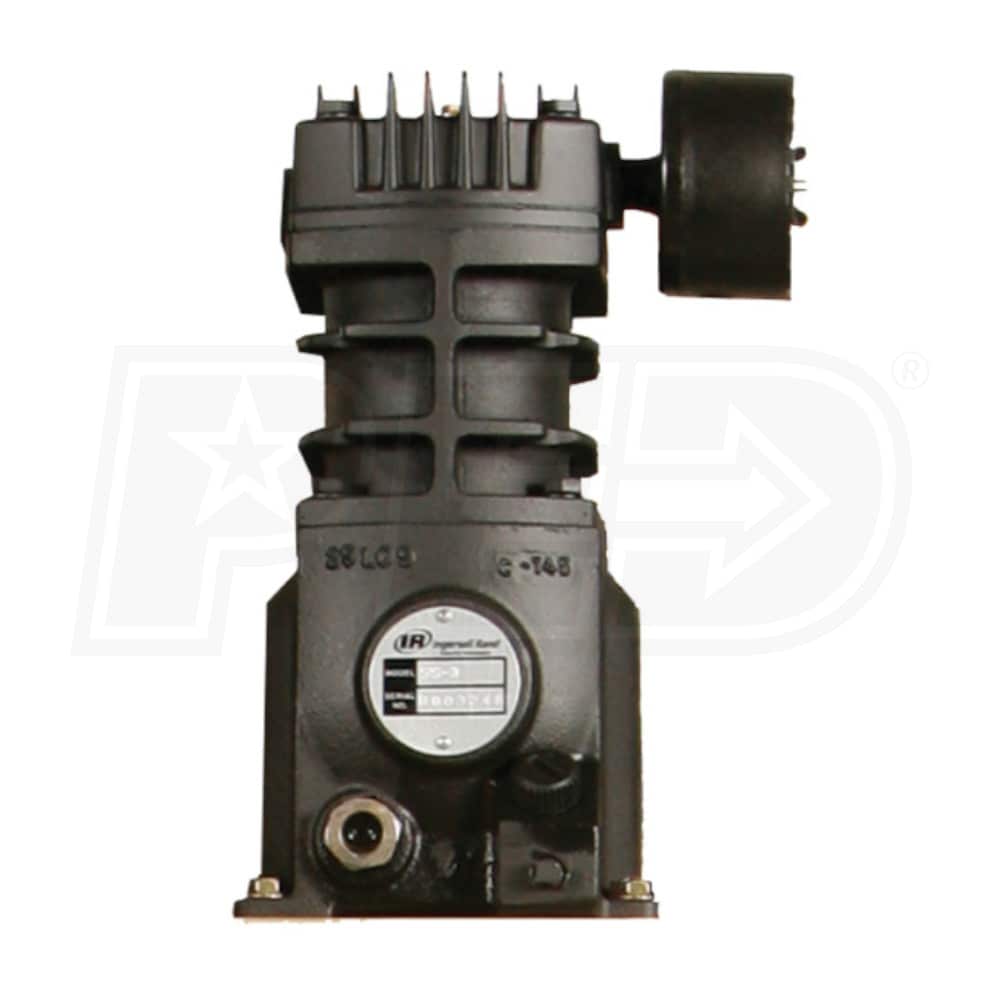

Ingersoll Rand 5-HP Single-Stage Bare In-line Twin Air Compressor Pump for IR SS5 Compressor (15.5 CFM @ 135 PSI)

Model:

18002386

Write A Review
$1,075.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days

Ingersoll Rand 5-HP Single-Stage Bare In-line Twin Air Compressor Pump for IR SS5 Compressor (15.5 CFM @ 135 PSI)
Ingersoll Rand 5-HP Single-Stage Bare In-line Twin Air Compressor Pump for IR SS5 Compressor (15.5 CFM @ 135 PSI)
Model: 18002386
$1,075.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

  • 5-HP Ingersoll Rand SS5 OEM Replacement Pump
  • Continuous-duty operation provides maximum performance
  • Cast iron construction and precision-engineered quality components
  • Durable 2 Cylinder Cast Iron Pump
  • Produces 18.1 CFM @ 90 PSI; 15.5 CFM @ 135 PSI
  • Single-stage splash lubricated belt-driven pump; 135 PSI max
  • 1000 Maximum RPM
  • Delivers high performance; 500 minimum RPM
  • 104 deg.F maximum operating temperature
  • Rugged Cast Iron Flywheel
  • Balanced to keep vibration to a minimum and smoothes out delivery of power
  • Easy-To-Read Oil Level Sight Gauge
  • Monitor pump oil level at a glance
  • 33.8 oz. capacity oil reservoir (Pump oil not included)
  • Specifications:
  • Bore: 3.5" & 3.5"
  • Stroke: 2.5"
  • Sheave OD: 14.8"
  • Sheave PD: 14.5"
  • Inlet size: 3/4" NPT
  • Discharge size: 1/2" NPT (Gas-3/8")
  • Belt Type / Quantity: 1/A (Gas-BX)
  • Compatibility:
  • Only fits Ingersoll Rand SS5 compressor
  • 1-Year Limited Manufacturer Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

18002386
specs product image PID-153393
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
15.5
CFM Rated @
135 PSI
CFM @ 90 PSI
18.1
Pump Material
Solid Cast Iron
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
135 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off Learn More
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Overview
Product Category
Air Compressor Parts
Weight
106 Pounds
Consumer Warranty
1 Year
Product Length
19 Inches
Product Width
14 Inches
Product Height
21 Inches
UPC
678384023863
