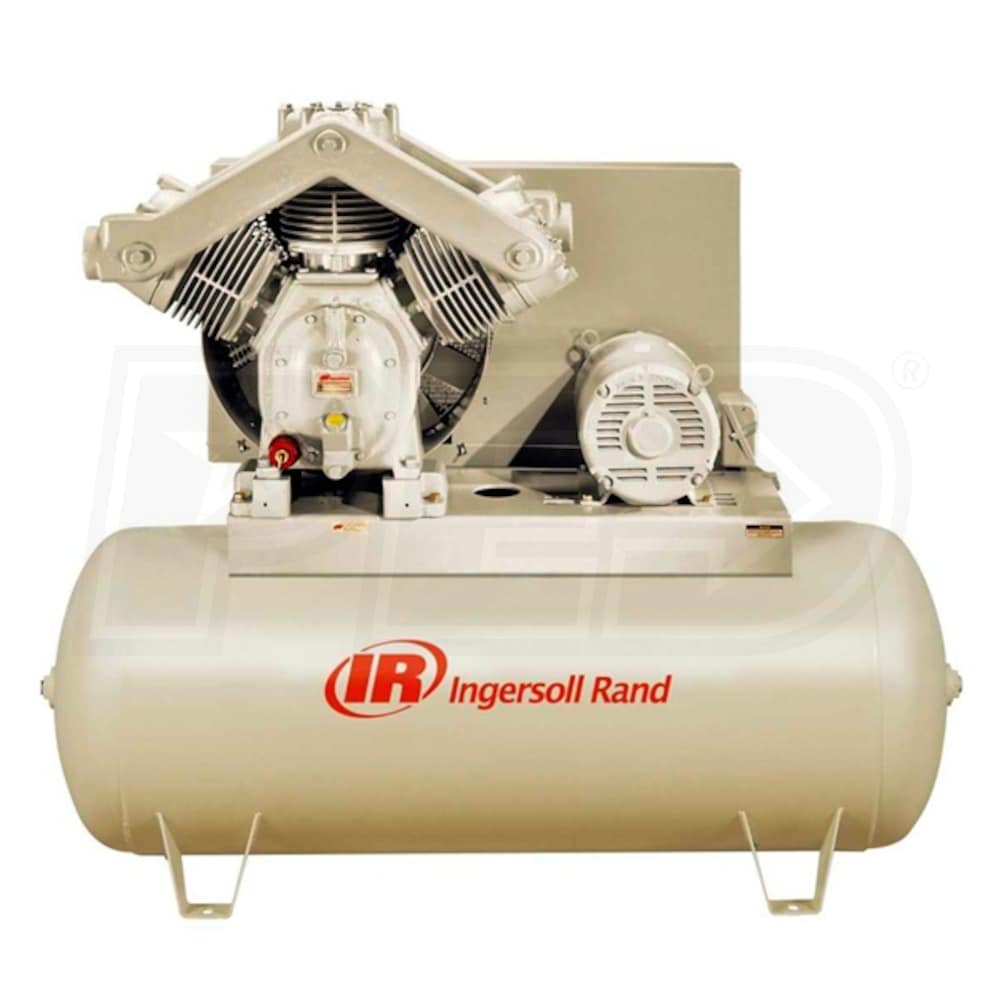

Ingersoll Rand 20-HP 120-Gallon Two-Stage Air Compressor (230V 3-Phase) Fully Packaged
Model:
15TE20-P-230
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Joshua, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Commercial
Voltage
230 Volt AC
Phase
3-Phase
CFM
72
Tank Size
120
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
- Unit Is Too Large For Liftgate Service, Must Have A Shipping Dock Or Forklift
- Full Package 2 Stage Air Compressor
- 20 horsepower, 3 cylinder pump for continuous duty applications
- Compressor may differ from picture
- Air Cooled Aftercooler & Finned Copper Intercooler
- Pump runs cooler & lasts longer
- Automatic Tank Drain
- Less maintainance, reduces air moisture, prevents rust
- Low Oil Cut-Off Switch
- Protects pump if oil level falls too low
- Sturdy And Reliable
- 100% cast iron cylinders meet the demands of commercial use
- One piece connecting rods & centrifugal unloader
- Magnetic Starter
- No need to purchase separately, already mounted & wired
- Ingersoll Rand Reciprocating Compressors Ship Dry
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
15TE20-P-230
General Information
Product Category
Air Compressor - Stationary
Motor
Voltage
230 Volt AC
Phase
3-Phase
Magnetic Starter
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
Yes
Amp Draw
54
Recommended Breaker
Consult Certified Electrician
Engine
HP
20
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
72
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Oil Sight Glass
No
Pump Type
Two-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
Yes
Tank
Tank Size
120 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
Yes
Tank Orientation
Horizontal
Overview
Product Category
Air Compressor - Stationary
Weight
1597 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
88 Inches
Product Width
46 Inches
Product Height
65 Inches
Power Type
Electric
Reviews
(1)
Ingersoll Rand 15TE20-P-230 Reviews & Ratings
Product Q&A
(2)
Product Questions
Answered by Joshua, the Air Compressor Expert
What is the DBA rating for the this model compressor?
MIkey D.
from California
June 06, 2018
I'm looking at the IR 15TE20-P-230 Unit.
The Spec's indicate it is rated at 72CFM @ 175 PSI. Is That Correct? if so... what would it's CFM rating be at 100 psi?
Thank you for your response.
Rusty Bang
from Mississippi
June 30, 2016
