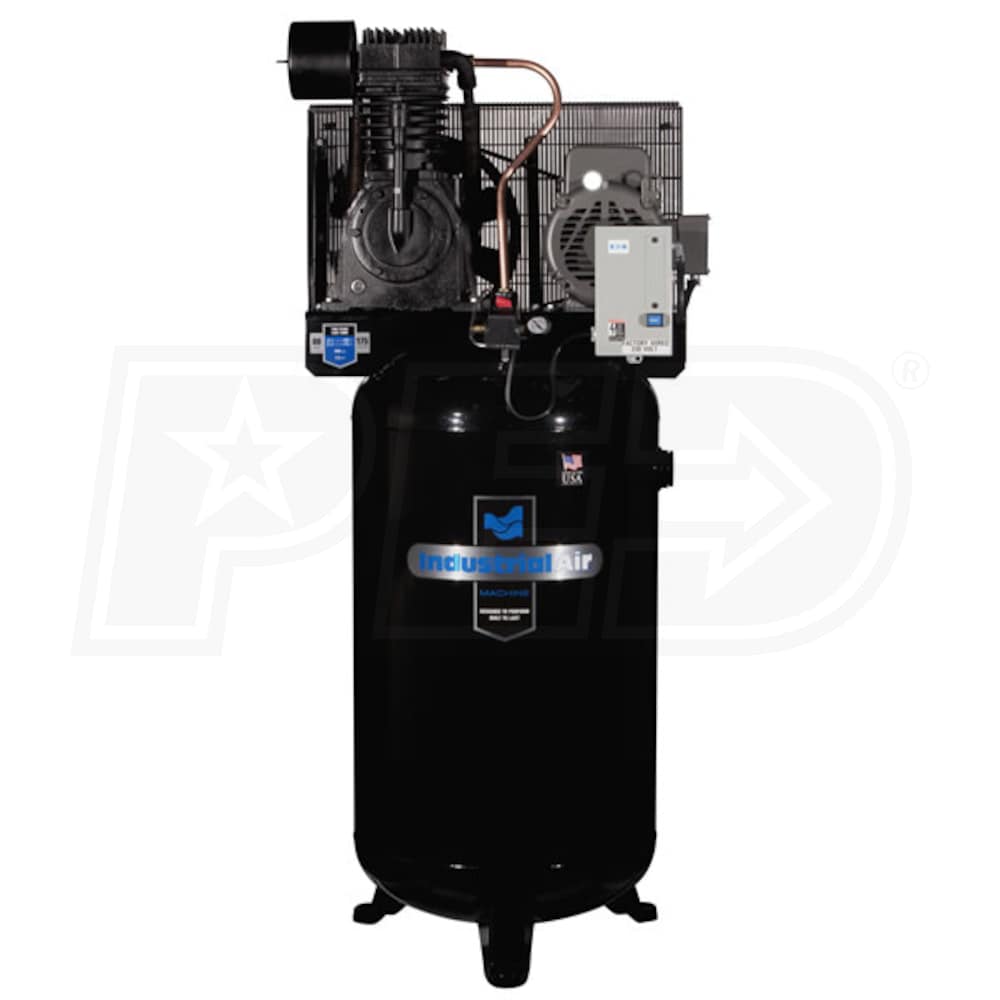

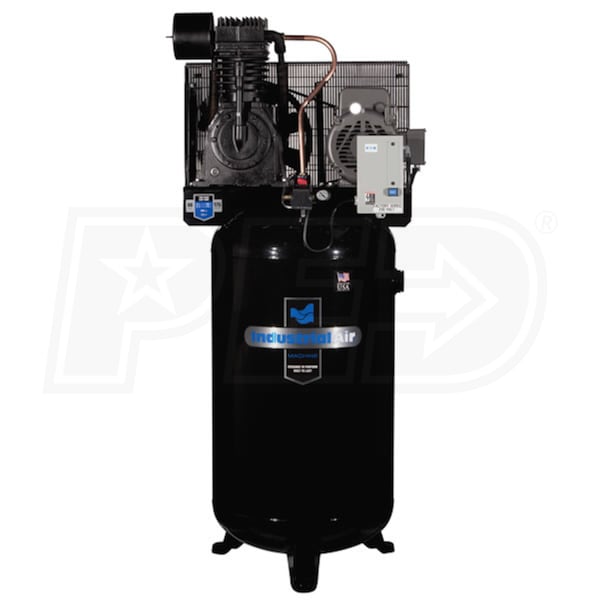

Industrial Air 7.5-HP 80-Gallon Two-Stage Air Compressor (230V 1-Phase) w/ Starter
Model: IV7518075
+
Share This Product
-
Product Description
-
7Reviews
-
2Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Grade
Style
CFM
22.1
CFM Rated @ 100 PSI
Tank Size
80
Gallons
Grade
Commercial
CFM
22.1 CFM Rated @ 100 PSI
Tank Size
80 Gallons
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- Industrial Performance Delivers Maximum CFM @ 175 PSI
- The power to operate more than one air tool or device at one time
- Patented 2 Stage Pump Design
- Improved compression efficiency
- Runs cooler, lasts longer
- Patented Cast Iron Flywheel
- Large, extended fins improve pump cooling & lower RPMs
- Baldor Industrial Class Electric Motor
- High quality 4 pole, 1725 RPM, NEMA rated
- Pre-Wired & Mounted Magnetic Starter
- Saves time and money
- Uniquely Designed Metal Belt Guard
- Improves cooling by as much as 60°F
- Large 80-Gallon Vertical ASME Air Receiver
- Provides more air for longer run times on air tools
- 22.1 CFM at 100 PSI; 21.2 CFM at 175 PSI; 3/4" air outlet
- Optimizes shop space compared to a horizontal tank
- 2 Year Limited Factory Warranty
- Protects your investment
- Purchase & use of maintenance kit doubles the pump warranty
Specifications
Motor
Voltage
230 Volt AC
Phase
1-Phase
Magnetic Starter
Yes
Amp Draw
31
Recommended Breaker
40 Amp Breaker
Engine
HP
7.5
Pump
CFM
22.1
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Overview
Weight
623 Pounds
Certification
ASME
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
37 Inches
Product Width
29 Inches
Product Height
79 Inches
Power Type
Electric
UPC
846212008379
Grade
Style
CFM
22.1
CFM Rated @ 100 PSI
Tank Size
80
Gallons
Grade
Commercial
CFM
22.1 CFM Rated @ 100 PSI
Tank Size
80 Gallons
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- Industrial Performance Delivers Maximum CFM @ 175 PSI
- The power to operate more than one air tool or device at one time
- Patented 2 Stage Pump Design
- Improved compression efficiency
- Runs cooler, lasts longer
- Patented Cast Iron Flywheel
- Large, extended fins improve pump cooling & lower RPMs
- Baldor Industrial Class Electric Motor
- High quality 4 pole, 1725 RPM, NEMA rated
- Pre-Wired & Mounted Magnetic Starter
- Saves time and money
- Uniquely Designed Metal Belt Guard
- Improves cooling by as much as 60°F
- Large 80-Gallon Vertical ASME Air Receiver
- Provides more air for longer run times on air tools
- 22.1 CFM at 100 PSI; 21.2 CFM at 175 PSI; 3/4" air outlet
- Optimizes shop space compared to a horizontal tank
- 2 Year Limited Factory Warranty
- Protects your investment
- Purchase & use of maintenance kit doubles the pump warranty
Specifications
Motor
Voltage
230 Volt AC
Phase
1-Phase
Magnetic Starter
Yes
Amp Draw
31
Recommended Breaker
40 Amp Breaker
Engine
HP
7.5
Pump
CFM
22.1
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Overview
Weight
623 Pounds
Certification
ASME
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
37 Inches
Product Width
29 Inches
Product Height
79 Inches
Power Type
Electric
UPC
846212008379
Product Specs
+−
Specifications
Motor
Voltage
230 Volt AC
Phase
1-Phase
Magnetic Starter
Yes
Amp Draw
31
Recommended Breaker
40 Amp Breaker
Engine
HP
7.5
Pump
CFM
22.1
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Overview
Weight
623 Pounds
Certification
ASME
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
37 Inches
Product Width
29 Inches
Product Height
79 Inches
Power Type
Electric
UPC
846212008379
Product Q&A
(2)
+−
Search Product Q&A's
Answered by Joshua. the Air Compressor Expert
+−
What is the pump life rating? What is the duty cycle of the motor?
Dan
from New Jersey
February 19, 2020
Answer
The pump is expected to last 4000 operating hours. The motor is an 80% duty cycle.
Was this answer helpful?
Yes
1
No
0
+−
What type of valves are used in the pump?
Donald B.
from Washington
August 31, 2019
Answer
Reed valves.
Was this answer helpful?
Yes
0
No
0
