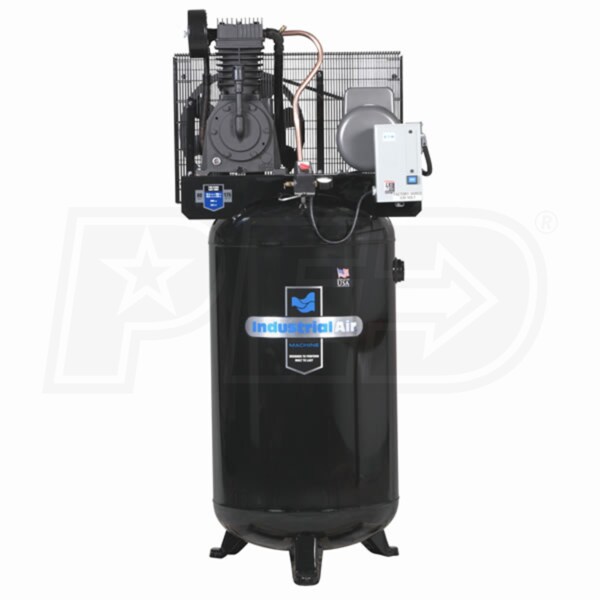

Industrial Air 5-HP 80-Gallon Two-Stage Air Compressor With Starter (230V 1-Phase)

Industrial Air 5-HP 80-Gallon Two-Stage Air Compressor With Starter (230V 1-Phase)
Our Price
Compare Prices
Shipping Info
Model: IV5018055
(Based on expert analysis, manufacturer ratings and customer reviews)
5.0 out of 55.0 out of 55.0 out of 55.0 out of 55.0 out of 5
Number of Reviews (2)
Write A Review
$1,892.99
$1,609.04

In-Stock
Ships from Industrial Air
Factory items ship direct from the manufacturer
Shipping times vary
Shipping Crate Icon
Free Shipping
Add-Ons
+$75.00
Free Shipping$1,892.99$1,609.04Buy Now
Free Freight$1,609.04Visit Site
In-Stock
Ships from Industrial Air
Ships in 2-5 Business Days
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Share
  • Product Description
  • 2
    Reviews
  • 1
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Consumer
Style
Two Stage 1-Phase
CFM
17
CFM Rated @ 100 PSI
Tank Size
80
Gallons
Grade
Consumer
CFM
17 CFM Rated @ 100 PSI
Tank Size
80 Gallons


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • Patented 2-Stage Pump Design
  • Runs cooler, lasts longer
  • Patented Piston Design
  • Improved compression efficiency
  • Patented Asymmetrical Cooling Fins
  • Draws heat away from the precision bored cylinders
  • Patented Cast Iron Flywheel
  • Large, extended fins improve pump cooling & lower RPMs
  • Baldor Industrial Class Electric Motor
  • High quality 4 pole, 1725 RPM, NEMA rated
  • Wires easily into your 240 volt, single phase system
  • Pre-Wired Magnetic Starter
  • Saves time and money
  • 80 Gallon ASME Tank
  • Enough power to operate more than 1 tool at a time
  • 17 CFM at 100 PSI; 16.2 CFM at 175 PSI; 3/4" air outlet
  • Unique Metal Belt Guard Design
  • Improves pump cooling by as much as 60% over other designs
  • 2 Year Factory Warranty
  • Purchase & use of maintenance kit doubles the pump warranty
Specifications
Motor
Voltage
230 Volt AC
Phase
1-Phase
Magnetic Starter
Yes
Amp Draw
22
Recommended Breaker
30 Amp Breaker
Engine
HP
5
Pump
CFM
17
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Overview
Weight
570 Pounds
Certification
ASME
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
37 Inches
Product Width
29 Inches
Product Height
77.25 Inches
Power Type
Electric
UPC
846212008102
Grade
Consumer
Style
Two Stage 1-Phase
CFM
17
CFM Rated @ 100 PSI
Tank Size
80
Gallons
Grade
Consumer
CFM
17 CFM Rated @ 100 PSI
Tank Size
80 Gallons


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • Patented 2-Stage Pump Design
  • Runs cooler, lasts longer
  • Patented Piston Design
  • Improved compression efficiency
  • Patented Asymmetrical Cooling Fins
  • Draws heat away from the precision bored cylinders
  • Patented Cast Iron Flywheel
  • Large, extended fins improve pump cooling & lower RPMs
  • Baldor Industrial Class Electric Motor
  • High quality 4 pole, 1725 RPM, NEMA rated
  • Wires easily into your 240 volt, single phase system
  • Pre-Wired Magnetic Starter
  • Saves time and money
  • 80 Gallon ASME Tank
  • Enough power to operate more than 1 tool at a time
  • 17 CFM at 100 PSI; 16.2 CFM at 175 PSI; 3/4" air outlet
  • Unique Metal Belt Guard Design
  • Improves pump cooling by as much as 60% over other designs
  • 2 Year Factory Warranty
  • Purchase & use of maintenance kit doubles the pump warranty
Specifications
Motor
Voltage
230 Volt AC
Phase
1-Phase
Magnetic Starter
Yes
Amp Draw
22
Recommended Breaker
30 Amp Breaker
Engine
HP
5
Pump
CFM
17
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Overview
Weight
570 Pounds
Certification
ASME
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
37 Inches
Product Width
29 Inches
Product Height
77.25 Inches
Power Type
Electric
UPC
846212008102
Product Specs
+
Specifications
Motor
Voltage
230 Volt AC
Phase
1-Phase
Magnetic Starter
Yes
Amp Draw
22
Recommended Breaker
30 Amp Breaker
Engine
HP
5
Pump
CFM
17
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Overview
Weight
570 Pounds
Certification
ASME
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
37 Inches
Product Width
29 Inches
Product Height
77.25 Inches
Power Type
Electric
UPC
846212008102
Reviews
(2)
+
Industrial Air IV5018055 Reviews & Ratings
Product Q&A
(1)
+
Search Product Q&A's Answered by Gabrielle, the Air Compressor Expert
icon-social-fb1
+
What brand are the compressors used in these units, and are all the 5 hp motors Baldor brand?
Matt
from Missouri
December 13, 2018
Answer
The pump on the unit listed is imported from overseas. The motor on the unit is a Baldor.
