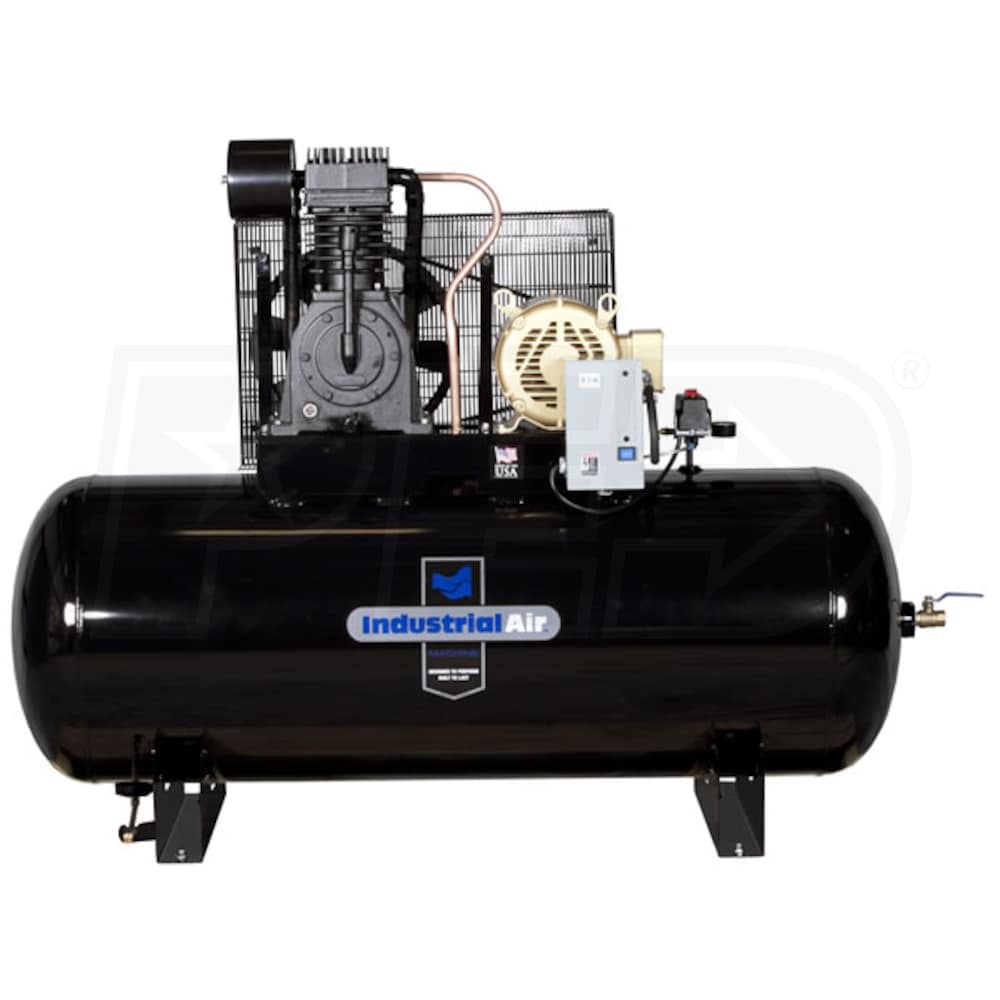

Industrial Air 7.5-HP 120 Gallon Two-Stage Air Compressor (460V 3-Phase)

Industrial Air 7.5-HP 120 Gallon Two-Stage Air Compressor (460V 3-Phase)
Our Price
Compare Prices
Shipping Info
Model: IH7569975
$2,446.99

Factory-Direct
Ships in 4-7 Business Days
Factory items ship direct from the manufacturer.
Shipping times vary.
Shipping Crate Icon
Free Shipping
Holiday Shipping Schedule
Holiday Schedule -
Add-Ons
+$75.00
Free Shipping$2,446.99Buy Now
Free Freight$2,446.99Visit Site
$2,521.99Visit Site
Factory-Direct
Ships in 4-7 Business Days
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Commercial
Style
Two Stage 3-Phase (460 Volts)
CFM
22.1
CFM Rated @ 100 PSI
Tank Size
120
Gallons
Grade
Commercial
CFM
22.1 CFM Rated @ 100 PSI
Tank Size
120 Gallons


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • Patented 2-Stage Pump Design
  • Runs cooler, lasts longer
  • Patented Piston Design
  • Improved compression efficiency
  • Patented Asymmetrical Cooling Fins
  • Draws heat away from the precision bored cylinders
  • Patented Cast Iron Flywheel
  • Large, extended fins improve pump cooling & lower RPMs
  • Baldor Industrial Class Electric Motor
  • High quality 4 pole, 1725 RPM, NEMA rated
  • Wires easily into your 460 volt, 3-phase system
  • Pre-Wired Magnetic Starter
  • Saves time and money
  • 120 Gallon Horizontal ASME Tank
  • Plenty of air reserve for medium shop & light industrial applications
  • 22.1 CFM at 100 PSI; 21.2 CFM at 175 PSI; 3/4" air outlet
  • Unique Metal Belt Guard Design
  • Improves pump cooling by as much as 60% over other designs
  • 2 Year Limited Factory Warranty
  • Purchase & use of maintenance kit doubles the pump warranty
Specifications
Motor
Voltage
460 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
14
Recommended Breaker
Consult Certified Electrician
Engine
HP
7.5
Pump
CFM
22.1
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
120 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Overview
Weight
815 Pounds
Certification
ASME
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
75 Inches
Product Width
29 Inches
Product Height
60 Inches
Power Type
Electric
UPC
846212024072
Grade
Commercial
Style
Two Stage 3-Phase (460 Volts)
CFM
22.1
CFM Rated @ 100 PSI
Tank Size
120
Gallons
Grade
Commercial
CFM
22.1 CFM Rated @ 100 PSI
Tank Size
120 Gallons


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • Patented 2-Stage Pump Design
  • Runs cooler, lasts longer
  • Patented Piston Design
  • Improved compression efficiency
  • Patented Asymmetrical Cooling Fins
  • Draws heat away from the precision bored cylinders
  • Patented Cast Iron Flywheel
  • Large, extended fins improve pump cooling & lower RPMs
  • Baldor Industrial Class Electric Motor
  • High quality 4 pole, 1725 RPM, NEMA rated
  • Wires easily into your 460 volt, 3-phase system
  • Pre-Wired Magnetic Starter
  • Saves time and money
  • 120 Gallon Horizontal ASME Tank
  • Plenty of air reserve for medium shop & light industrial applications
  • 22.1 CFM at 100 PSI; 21.2 CFM at 175 PSI; 3/4" air outlet
  • Unique Metal Belt Guard Design
  • Improves pump cooling by as much as 60% over other designs
  • 2 Year Limited Factory Warranty
  • Purchase & use of maintenance kit doubles the pump warranty
Specifications
Motor
Voltage
460 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
14
Recommended Breaker
Consult Certified Electrician
Engine
HP
7.5
Pump
CFM
22.1
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
120 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Overview
Weight
815 Pounds
Certification
ASME
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
75 Inches
Product Width
29 Inches
Product Height
60 Inches
Power Type
Electric
UPC
846212024072
Product Specs
+
Specifications
Motor
Voltage
460 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
14
Recommended Breaker
Consult Certified Electrician
Engine
HP
7.5
Pump
CFM
22.1
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
120 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Overview
Weight
815 Pounds
Certification
ASME
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
75 Inches
Product Width
29 Inches
Product Height
60 Inches
Power Type
Electric
UPC
846212024072
