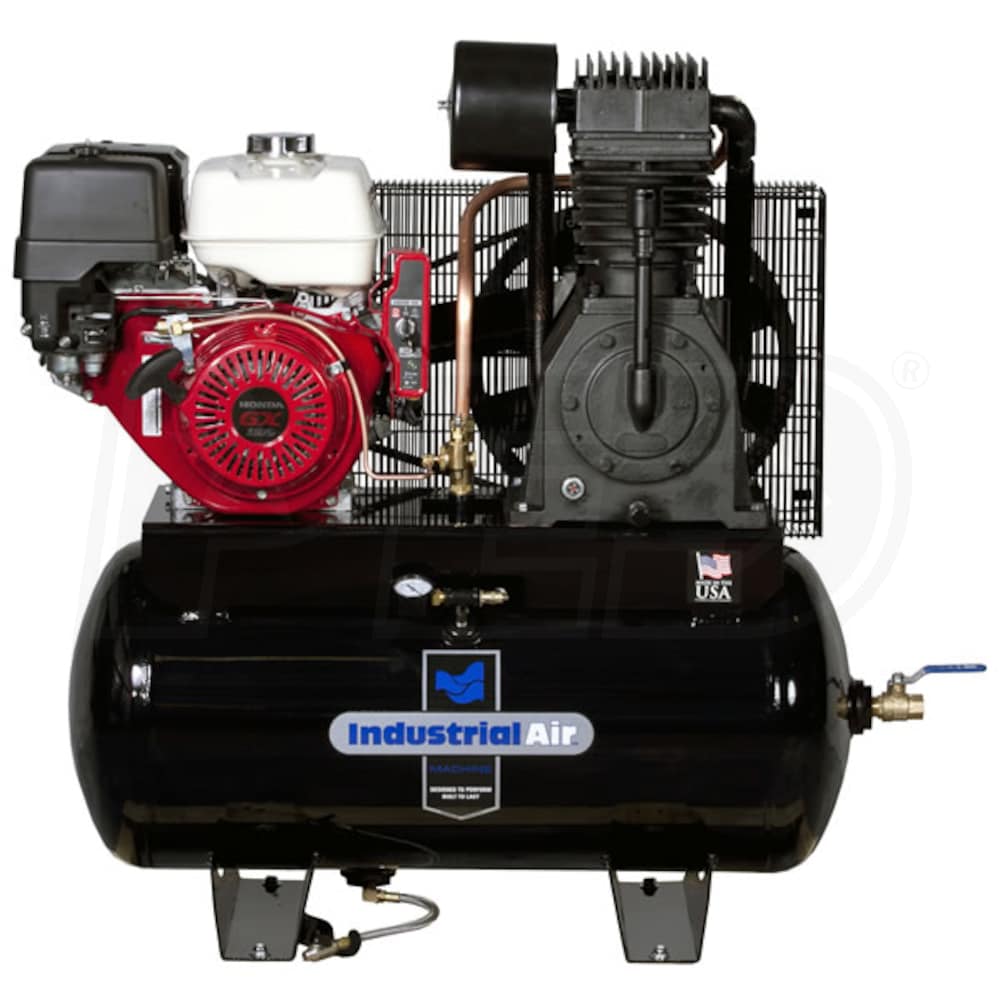

Industrial Air 13-HP 30-Gallon Two-Stage Truck Mount Air Compressor w/ Electric Start Honda Engine
Model: IH1393075
+
Share This Product
-
Product Description
-
10Reviews
-
2Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Grade
Style
Engine Brand
CFM
22
CFM Rated @ 175 PSI
Tank Size
30
Gallons
Grade
Contractor
Engine Brand
Honda GX
CFM
22 CFM Rated @ 175 PSI
Tank Size
30 Gallons
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- Honda GX390 389cc Commercial Grade Engine
- Powerful, quiet & dependable
- Electric and manual start for ease of operation (Battery & Cables Not Included)
- Automatic Low Oil Shutdown
- Protects the engine
- Cast Iron 2-Stage Pump
- Produces 24 CFM at 100 PSI; 22 CFM at 175 PSI
- Ideal for service trucks & contractors running multiple tools
- Patented Pump Design
- Cast iron cylinder head & flywheel run cooler, last longer
- Oversized Industrial Grade Bearings
- Increases durability & pump life
- Patented Cast Iron Flywheel
- Large extended fins improve pump cooling; lowers RPM
- High Efficiency Finned Copper Intercooler
- Increases performance & valve life
- Extra Capacity Oil Reservoir
- Lower oil tempertures & easier maintenance
- 30 Gallon Tank With Truck Mounts
- 175 PSI maximum; ASME certified for safety
Specifications
Engine
HP
13
Engine Brand
Honda GX
Starting System
12-Volt Key Start w/ Recoil
Engine Low Oil Shut-off
Yes
Pump
CFM
22
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Tank
Tank Size
30 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Overview
Weight
497 Pounds
Certification
ASME
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
46 Inches
Product Width
23.5 Inches
Product Height
48 Inches
Power Type
Gas
UPC
846212024126
Grade
Style
Engine Brand
CFM
22
CFM Rated @ 175 PSI
Tank Size
30
Gallons
Grade
Contractor
Engine Brand
Honda GX
CFM
22 CFM Rated @ 175 PSI
Tank Size
30 Gallons
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- Honda GX390 389cc Commercial Grade Engine
- Powerful, quiet & dependable
- Electric and manual start for ease of operation (Battery & Cables Not Included)
- Automatic Low Oil Shutdown
- Protects the engine
- Cast Iron 2-Stage Pump
- Produces 24 CFM at 100 PSI; 22 CFM at 175 PSI
- Ideal for service trucks & contractors running multiple tools
- Patented Pump Design
- Cast iron cylinder head & flywheel run cooler, last longer
- Oversized Industrial Grade Bearings
- Increases durability & pump life
- Patented Cast Iron Flywheel
- Large extended fins improve pump cooling; lowers RPM
- High Efficiency Finned Copper Intercooler
- Increases performance & valve life
- Extra Capacity Oil Reservoir
- Lower oil tempertures & easier maintenance
- 30 Gallon Tank With Truck Mounts
- 175 PSI maximum; ASME certified for safety
Specifications
Engine
HP
13
Engine Brand
Honda GX
Starting System
12-Volt Key Start w/ Recoil
Engine Low Oil Shut-off
Yes
Pump
CFM
22
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Tank
Tank Size
30 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Overview
Weight
497 Pounds
Certification
ASME
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
46 Inches
Product Width
23.5 Inches
Product Height
48 Inches
Power Type
Gas
UPC
846212024126
Product Specs
+−
Specifications
Engine
HP
13
Engine Brand
Honda GX
Starting System
12-Volt Key Start w/ Recoil
Engine Low Oil Shut-off
Yes
Pump
CFM
22
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Tank
Tank Size
30 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Overview
Weight
497 Pounds
Certification
ASME
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
46 Inches
Product Width
23.5 Inches
Product Height
48 Inches
Power Type
Gas
UPC
846212024126
Product Q&A
(2)
+−
Search Product Q&A's
Answered by Joshua. the Air Compressor Expert
+−
The description says it has an electric start motor, so that means it comes with a battery already installed, correct?
Mike H.
from California
August 20, 2019
Answer
The battery is not included with this product.
Was this answer helpful?
Yes
0
No
0
+−
What is the total weight of the compressor and motor?
Mike H.
from California
August 20, 2019
Answer
I have the weight of the entire product, which is 497lbs.
Was this answer helpful?
Yes
0
No
0
