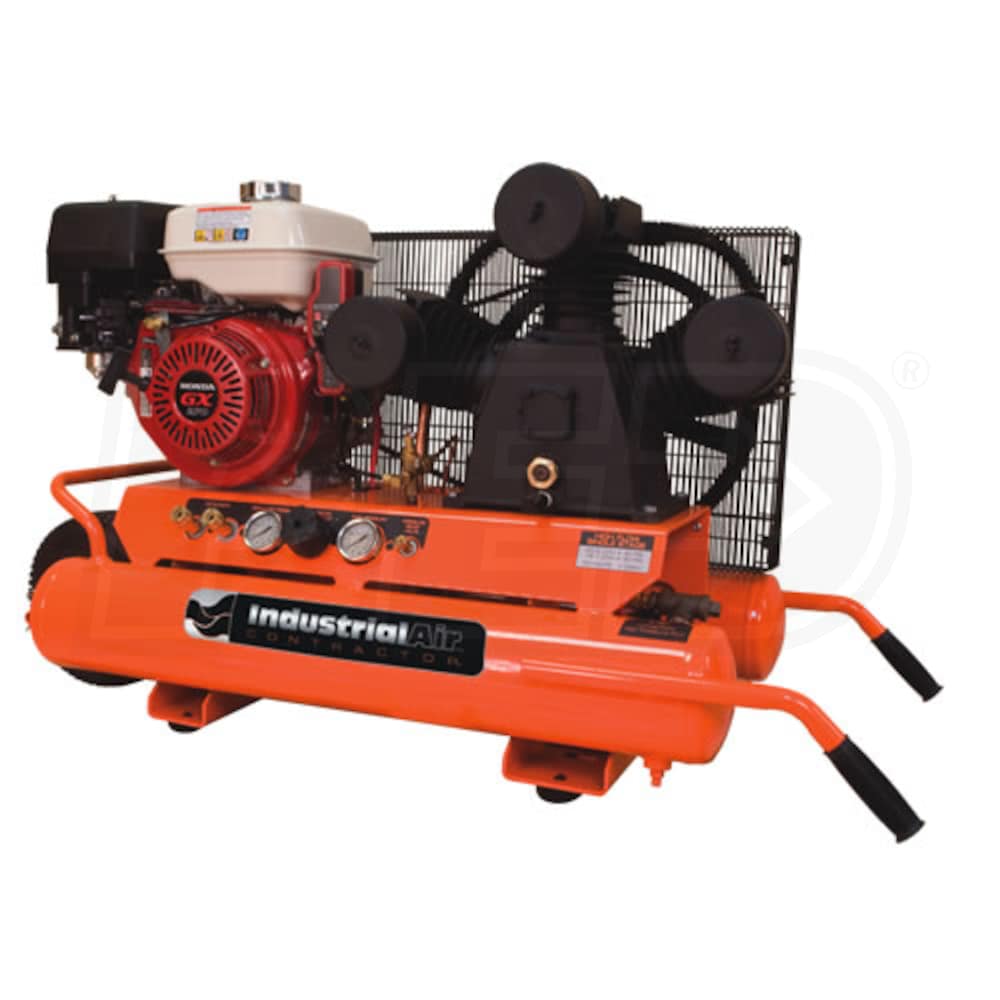

Industrial Air Contractor 9-HP 9-Gallon Gas Wheelbarrow Air Compressor w/ Electric Start Honda Engine
Model:
CTA9090980.ES
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Optional Accessories
9
Model: TRI-GD-1100P-GL
$65.00
Factory-Direct
Model: MP284701AV
$25.00
Factory-Direct
Model: TRI-GD-2100P-GL
$95.00
Factory-Direct
Model: EATIWH5S1P
$170.16
Factory-Direct
Model: EATIW05S1P
$141.09
Factory-Direct
Model: EATBS10S1P
$106.26
Factory-Direct
Model: DXCM012-0200
$30.99
Factory-Direct
Model: IH-BN2
$92.00
Factory-Direct
Model: IH-AFN34
$216.00
Factory-Direct
Features
Grade
Contractor
Style
Wheel Barrow
Engine Brand
Honda
CFM
18
Tank Size
9
Industrial Air Contractor 9-HP 9-Gallon Gas Wheelbarrow Air Compressor w/ Electric Start Honda Engine
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
- Super High Air Flow
- Portable power produces 18 CFM at 90 PSI
- 155 PSI maximum pressure for optimum tool performance
- 9 HP Honda OHV Engine With Electric Start
- Reliable & easy to start; meets CARB emissions requirements
- Integrated battery compartment (battery & cables not included)
- Automotive-syle air cleaner & automatic low-oil shutdown
- High Performance 3 Cylinder Pump
- One-piece cast iron crankcase handles tough jobs
- Shipped with synthetic oil for optimum performance
- Center Mounted Tires For Jobsite Mobility
- 2 wheels side-by-side fit a common 12" plank
- Balanced structural support transfers vibration to the ground
- Integrated Control Panel
- Oversized regulator knob is easy to grasp with work gloves
- Two 1/4" quick connect hose ports lets 2 people work at once
- Liquid filled tool & pressure gauges are easy to read
- Compatible With H4X Remote Air Hub (Sold Separately)
- 1/2" unregulated high pressure port on compressor connects to hub
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
CTA9090980.ES
General Information
Product Category
Air Compressor - Portable
Engine
HP
9
Auto Idle
Yes
Engine Brand
Honda
Starting System
12-Volt Button Start w/ Recoil
Engine Low Oil Shut-off
No
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
18
CFM Rated @
90 PSI
Pump Material
Solid Cast Iron
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
155 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
9 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Portable
Weight
360 Pounds
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
48.5 Inches
Product Width
20 Inches
Product Height
33 Inches
Power Type
Gas
UPC
846212004074
Additional Model Numbers
CTA9090980ES, CTA9090980.ES
Reviews
(4)
Industrial Air Contractor CTA9090980.ES Reviews & Ratings
Great Compressor
By David H.
Lynchburg, Virginia
Purchased 03/01/2020 |
Review Posted 03/26/2020
Great working with this company. This is our third one of these compressors.
David H. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Durable, Easy To Use, Price, Exceeded Expectations
2 Compressors With Trouble Out Of The Box
By Justin K.
Grady, Arkansas
Review Posted 03/04/2019
Ordered 2 of these compressors. Got them in today unboxed them and everything looked good. Cranked them up and one the motor kills itself when it is supposed to go to idle and the other won’t run above idle without holding the throttle over. Had to take it to authorized repairman an hour away. Seems to be high priced for it not to work out of the box and poor first impression. Hopefully, they get fixed fast and can turn out to be a good compressor.
Justin K. Does Not Recommend This
Was this review helpful?
Expert Response
First and foremost thank you for your purchase of the Industrial Air Contractor 9-HP 9-Gallon Gas Wheelbarrow Air Compressor. We are sorry to hear you are having issues with your air compressors You are doing the right thing by contacting an independent authorized service provider in your local area, as these trained professionals are able to not only diagnose the cause of your units.
Please call us if you would like to discuss or need any additional assistance. Please accept our apologies for your disappointment and inconvenience!
Please call us if you would like to discuss or need any additional assistance. Please accept our apologies for your disappointment and inconvenience!
Dale V.
Power Equipment Expert
Rating Breakdown
4/5
2/5
2/5
3/5
Cons:
Low Quality, Heavy, Expensive
Great Air Compressors
By Todd I.
Glasgow, Montana
Purchased 03/07/2018 |
Review Posted 03/31/2018
The air compressor is very heavy (350 lb) is the biggest compliment. It is not a two-stage like I was told, but it will keep up with all sanders/ sandblasted etc.
Todd I. Recommends This
Was this review helpful?
Rating Breakdown
4/5
5/5
5/5
5/5
Pros:
Easy To Use, Price, Fast, I'd Buy It Again
Cons:
Heavy
Big Air Maker!
By Lee E.
summerfield, Florida
Purchased 08/10/2016 |
Review Posted 09/26/2016
I use this unit for operating an air diaphragm pump for roof cleaning. It is a beast and makes way more air than I have ever had before!
Not cheap but worth the investment without a doubt. Put a battery to it and never have to pull a cord again. I just can't tell everyone just how well this investment has worked out!
The company was super easy to deal with and the whole transaction went without a hitch.
Not cheap but worth the investment without a doubt. Put a battery to it and never have to pull a cord again. I just can't tell everyone just how well this investment has worked out!
The company was super easy to deal with and the whole transaction went without a hitch.
Lee E. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Product Q&A
(1)
Product Questions
Answered by Melissa, the Air Compressor Expert
I m looking for an air compressor that have enough power to drain my sprinklers system without stopping to recover& allso I like to be with gas motor & wheelbarrow
Paulin Vuktilaj
from Michigan
October 22, 2013
