Industrial Air 10-HP 2-Stage V-Twin Replacement Air Compressor Pump (35 CFM @ 100 PSI)
Industrial Air 10-HP 2-Stage V-Twin Replacement Air Compressor Pump (35 CFM @ 100 PSI)
+
Share This Product
-
Product Description
-
Reviews
-
1Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Features
Features

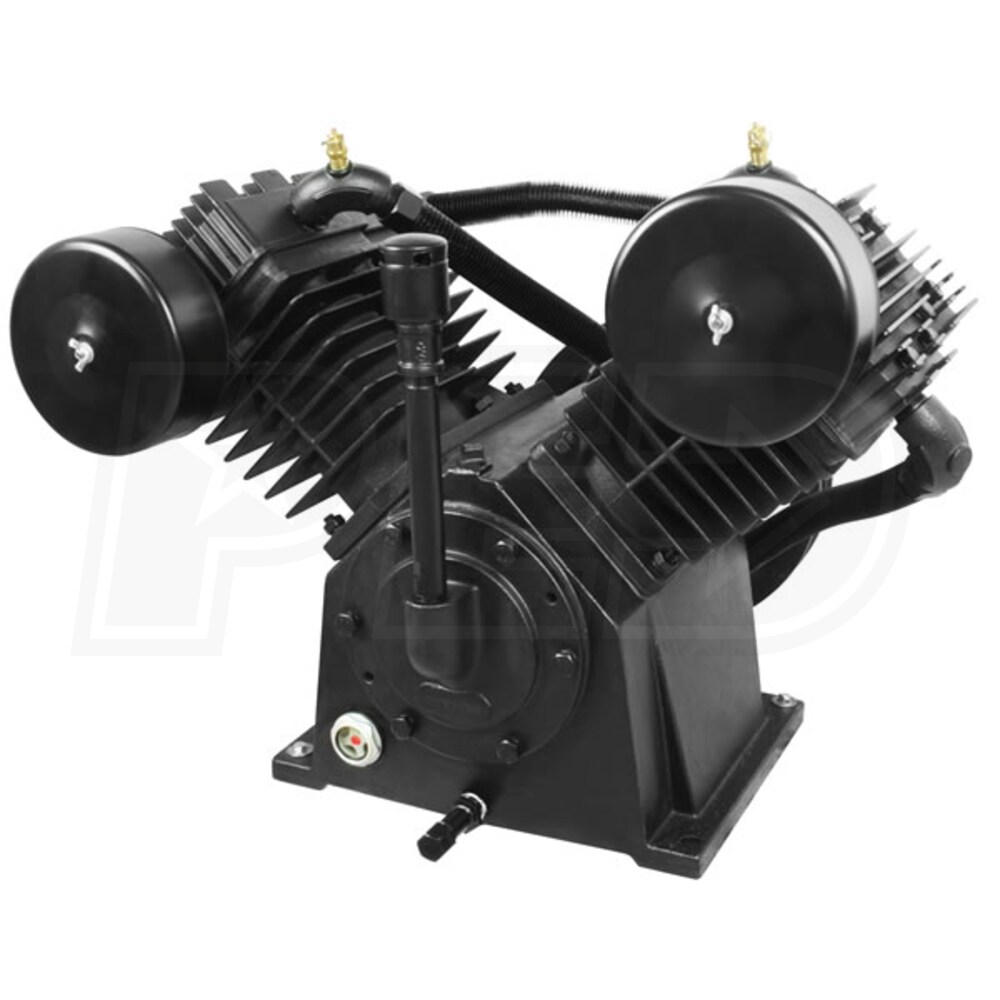

- Cast Iron 2-Stage Inline V-Twin Replacement Pump
- Produces 10 running horsepower
- Mounting patterns 12.9" W x 9.4" D (Depth)
- 4 bolting holes; 0.55 diameter per hole
- Provides maximum performance and efficiency
- Impressive 4 Cylinder Pump
- Develops 35 CFM at 100 PSI & 33.6 CFM @ 175 PSI
- 175 maximum PSI
- 2 large canister style air filters
- 800 Maximum RPM
- Delivers high performance & longevity
- "B" (width) double v-belt
- Automotive-Style Ball Bearings
- Provide optimum performance & extended pump life
- Offers reliable stainless steel reed valves
- Rugged Cast Iron Flywheel & Crankcase
- Balanced for best performance & durability
- 12" Flywheel diameter (23" with fan)

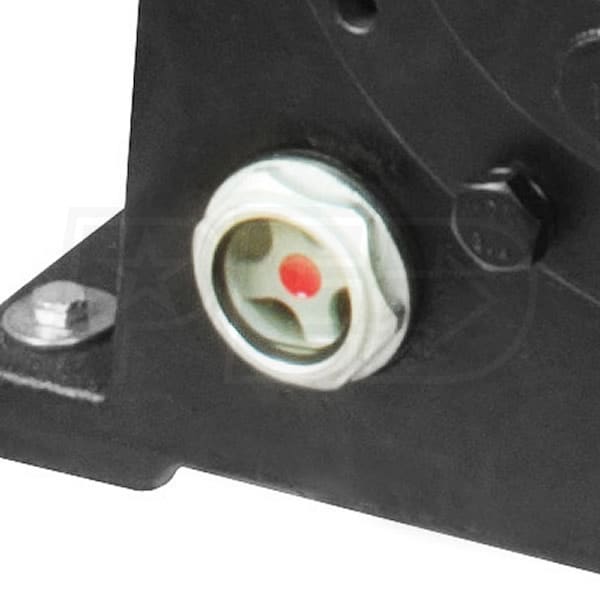

- Easy-To-Read Oil Level Sight Gauge
- Monitor pump oil level at a glance
- 104 oz. capacity oil reservoir (Pump oil not included)
- Factory Warranty
- Protects your investment
- Works with many brands of air compressor
Specifications
Pump
CFM
35
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Pump Type
Two-Stage
Max PSI
175 PSI
Oil Sight Glass
Yes
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Overview
Weight
215 Pounds
Product Length
24.8 Inches
Product Width
22.6 Inches
Product Height
18.9 Inches
Consumer Warranty
1 Year
UPC
846212023716
Features
Features
- Cast Iron 2-Stage Inline V-Twin Replacement Pump
- Produces 10 running horsepower
- Mounting patterns 12.9" W x 9.4" D (Depth)
- 4 bolting holes; 0.55 diameter per hole
- Provides maximum performance and efficiency
- Impressive 4 Cylinder Pump
- Develops 35 CFM at 100 PSI & 33.6 CFM @ 175 PSI
- 175 maximum PSI
- 2 large canister style air filters
- 800 Maximum RPM
- Delivers high performance & longevity
- "B" (width) double v-belt
- Automotive-Style Ball Bearings
- Provide optimum performance & extended pump life
- Offers reliable stainless steel reed valves
- Rugged Cast Iron Flywheel & Crankcase
- Balanced for best performance & durability
- 12" Flywheel diameter (23" with fan)
- Easy-To-Read Oil Level Sight Gauge
- Monitor pump oil level at a glance
- 104 oz. capacity oil reservoir (Pump oil not included)
- Factory Warranty
- Protects your investment
- Works with many brands of air compressor
Specifications
Pump
CFM
35
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Pump Type
Two-Stage
Max PSI
175 PSI
Oil Sight Glass
Yes
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Overview
Weight
215 Pounds
Product Length
24.8 Inches
Product Width
22.6 Inches
Product Height
18.9 Inches
Consumer Warranty
1 Year
UPC
846212023716
Product Specs
+−
Specifications
Pump
CFM
35
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Pump Type
Two-Stage
Max PSI
175 PSI
Oil Sight Glass
Yes
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Overview
Weight
215 Pounds
Product Length
24.8 Inches
Product Width
22.6 Inches
Product Height
18.9 Inches
Consumer Warranty
1 Year
UPC
846212023716
Reviews
+−
Be the First to Write a Review
Do you own this product?
Please share your insights with fellow shoppers.
Please share your insights with fellow shoppers.
Product Q&A
(1)
+−
Search Product Q&A's
Answered by Gabrielle, the Air Compressor Expert
+−
What size tank capacity can it handle, and what HP and RPM do you recommend for the electric motor?
Bill
from Ohio
March 22, 2019
Answer
I recommend a 120 gallon tank, but I would not go any lower than an 80 gallon. A 10-HP motor is with an RPM of 1770 is best.
