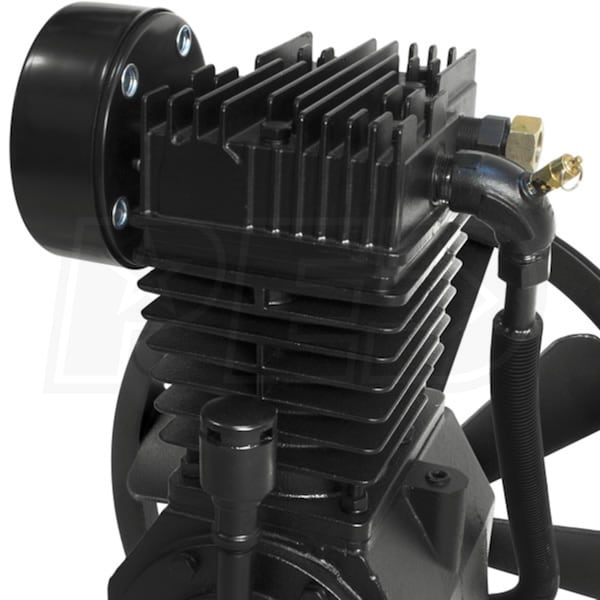

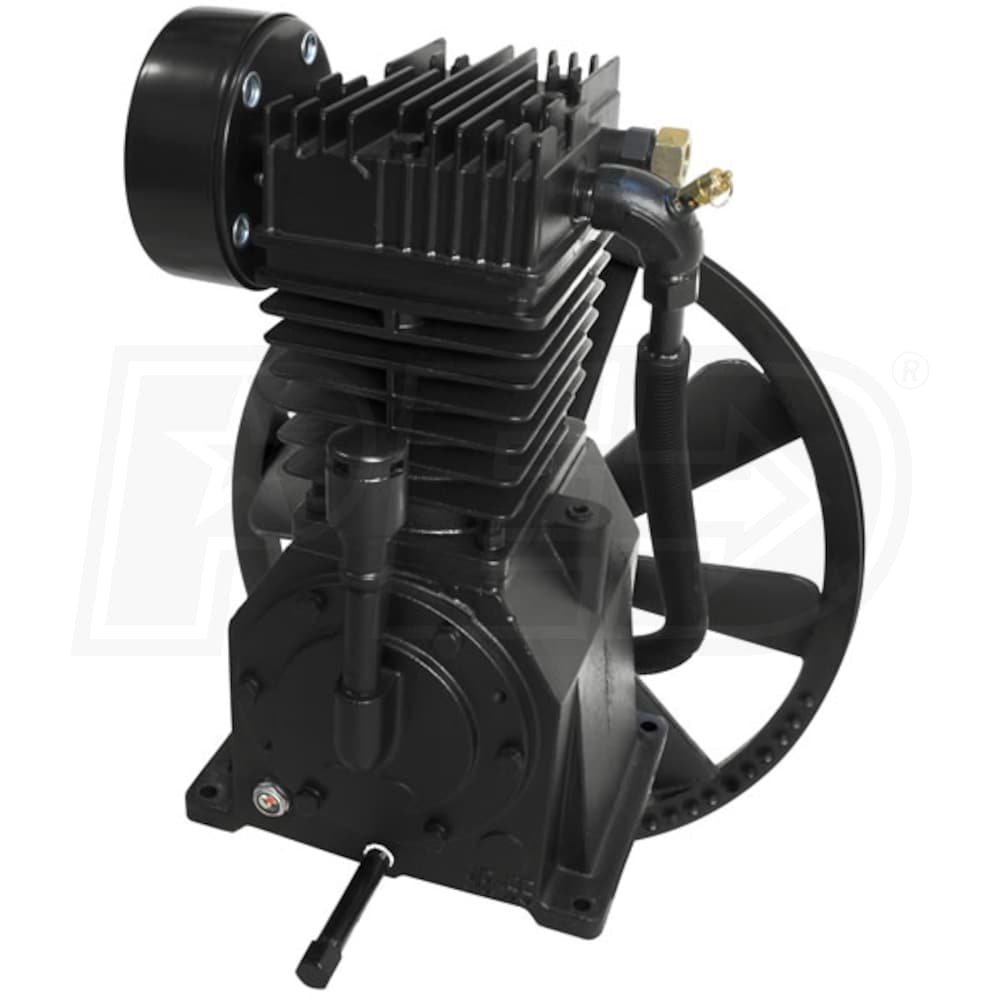

Industrial Air 5-HP 2-Stage Inline-Twin Replacement Air Compressor Pump (17 CFM @ 100 PSI)

Industrial Air 5-HP 2-Stage Inline-Twin Replacement Air Compressor Pump (17 CFM @ 100 PSI)
Our Price
Compare Prices
Shipping Info
Model: 040-0444RP
$624.99

In-Stock
Ships from Industrial Air
Factory items ship direct from the manufacturer
Shipping times vary
Shipping Crate Icon
Free Shipping
Add-Ons
+$75.00
Free Shipping$624.99Buy Now
Free Freight$624.99Visit Site
$699.99Visit Site
In-Stock
Ships from Industrial Air
Ships in 2-5 Business Days
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Features
Features
  • Cast Iron 2-Stage Inline V-Twin Replacement Pump
  • Produces 5 running horsepower
  • Mounting pattern 10.55" W x 7.80 D (Depth)
  • 4 bolting holes; 0.49 diameter per hole
  • Provides maximum performance and efficiency
  • Durable 2 Cylinder Pump
  • Develops 17 CFM at 100 PSI & 16.2 CFM @ 175 PSI
  • 175 maximum PSI
  • Large canister style air filter
  • 850 Maximum RPM
  • Delivers high performance & longevity
  • "B" (width) single v-belt
  • Rugged Cast Iron Flywheel & Crankcase
  • Balanced for best performance & durability
  • 16.5" Flywheel diameter
  • Automotive-Style Ball Bearings
  • Provide optimum performance & extended pump life
  • Offers reliable stainless steel reed valves

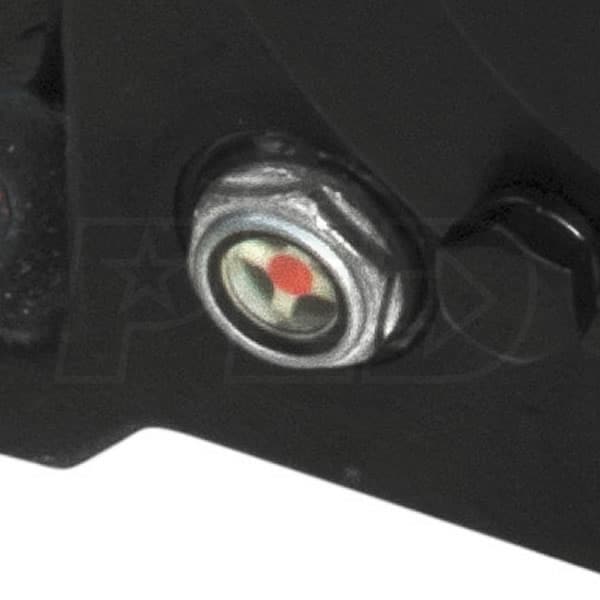

  • Easy-To-Read Oil Level Sight Gauge
  • Monitor pump oil level at a glance
  • 49 oz. capacity oil reservoir (Pump oil not included)
  • Factory Warranty
  • Protects your investment
  • Works with many brands of air compressor
Specifications
Pump
CFM
17
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Overview
Weight
134 Pounds
Product Length
11.72 Inches
Product Width
15.78 Inches
Product Height
21.07 Inches
Consumer Warranty
1 Year
UPC
846212023693
