Industrial Air 4.7-HP Single-Stage Hi-Flo 3-Cylinder Replacement Air Compressor Pump (16.1 CFM @ 40 PSI)

Industrial Air 4.7-HP Single-Stage Hi-Flo 3-Cylinder Replacement Air Compressor Pump (16.1 CFM @ 40 PSI)
Our Price
Compare Prices
Shipping Info
Model: 040-0348RP
(Based on expert analysis, manufacturer ratings and customer reviews)
3.8 out of 53.8 out of 53.8 out of 53.8 out of 53.8 out of 5
Number of Reviews (5)
Write A Review
$249.99
In-Stock
Ships from Industrial Air
Factory items ship direct from the manufacturer
Shipping times vary
Free Shipping
Holiday Shipping Schedule
Holiday Schedule -
Free Shipping$249.99Buy Now
Free Shipping$249.99Visit Site
$249.99Visit Site
In-Stock
Ships from Industrial Air
Ships in 2-5 Business Days
Free Shipping
Free Shipping
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • 5
    Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Features
Features

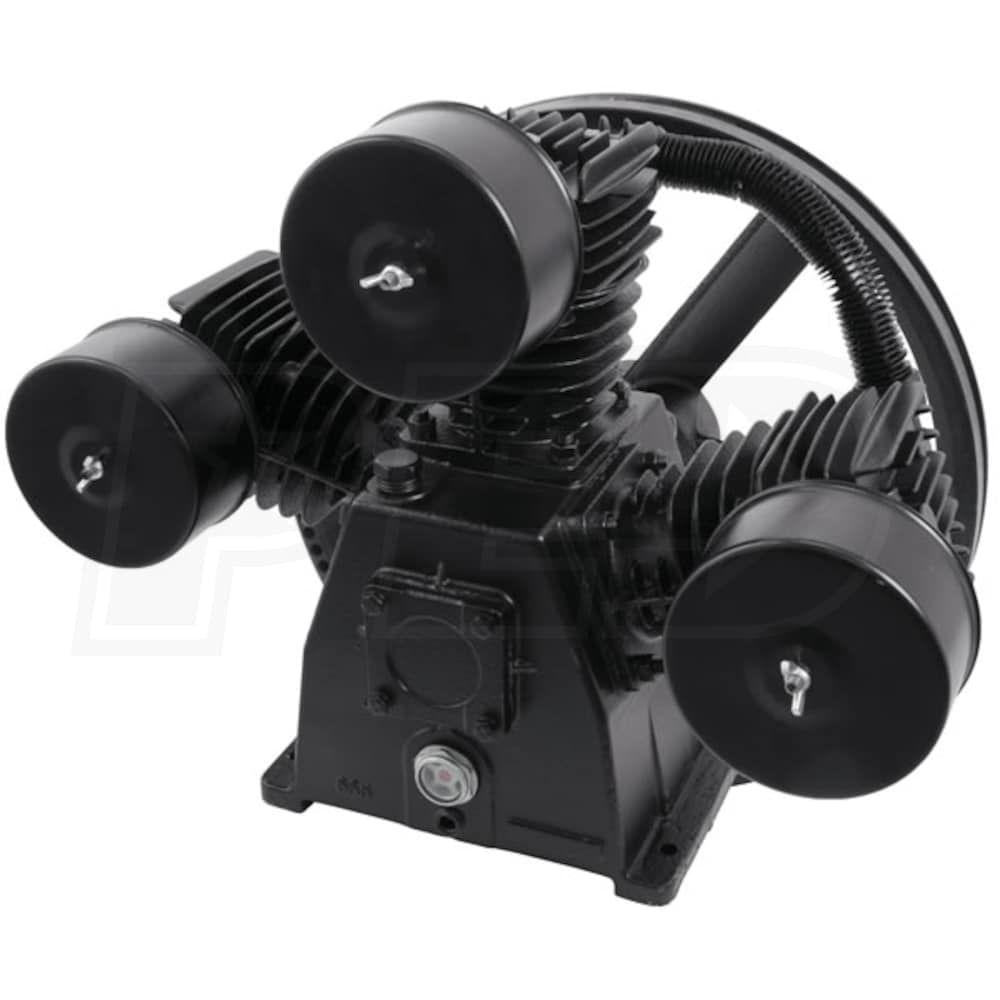

  • Cast Iron Single Stage Hi-Flo 3-Cylinder Replacement Pump
  • Produces 4.7 running horsepower
  • Mounting pattern 8.43" W x 5.19" D (Depth)
  • 4 bolting holes; 0.354 diameter per hole
  • Provides maximum performance and efficiency
  • High Performance 3 Cylinder Hi-Flo Pump
  • Develops 16.1 CFM at 40 PSI & 14 CFM @ 90 PSI
  • 3 large canister style air filters
  • 1250 Maximum RPM
  • Delivers high performance & longevity
  • "A" (width) single v-belt
  • Automotive-Style Ball Bearings
  • Provide optimum performance & extended pump life
  • Offers reliable stainless steel reed valves
  • Rugged Cast Iron Flywheel & Crankcase
  • Balanced for best performance & durability
  • 12" Flywheel diameter
  • Easy-To-Read Oil Level Sight Gauge
  • Monitor pump oil level at a glance
  • 33 oz. capacity oil reservoir (Pump oil not included)
  • Factory Warranty
  • Protects your investment
  • Works with many brands of air compressor
Specifications
Pump
CFM
14
CFM Rated @
90 PSI
Pump Material
Solid Cast Iron
Pump Type
Single-Stage
Max PSI
155 PSI
Oil Sight Glass
Yes
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Overview
Weight
68 Pounds
Product Length
19 Inches
Product Width
11.18 Inches
Product Height
14.9 Inches
Consumer Warranty
1 Year
UPC
846212023679
Features
Features
  • Cast Iron Single Stage Hi-Flo 3-Cylinder Replacement Pump
  • Produces 4.7 running horsepower
  • Mounting pattern 8.43" W x 5.19" D (Depth)
  • 4 bolting holes; 0.354 diameter per hole
  • Provides maximum performance and efficiency
  • High Performance 3 Cylinder Hi-Flo Pump
  • Develops 16.1 CFM at 40 PSI & 14 CFM @ 90 PSI
  • 3 large canister style air filters
  • 1250 Maximum RPM
  • Delivers high performance & longevity
  • "A" (width) single v-belt
  • Automotive-Style Ball Bearings
  • Provide optimum performance & extended pump life
  • Offers reliable stainless steel reed valves
  • Rugged Cast Iron Flywheel & Crankcase
  • Balanced for best performance & durability
  • 12" Flywheel diameter
  • Easy-To-Read Oil Level Sight Gauge
  • Monitor pump oil level at a glance
  • 33 oz. capacity oil reservoir (Pump oil not included)
  • Factory Warranty
  • Protects your investment
  • Works with many brands of air compressor
Specifications
Pump
CFM
14
CFM Rated @
90 PSI
Pump Material
Solid Cast Iron
Pump Type
Single-Stage
Max PSI
155 PSI
Oil Sight Glass
Yes
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Overview
Weight
68 Pounds
Product Length
19 Inches
Product Width
11.18 Inches
Product Height
14.9 Inches
Consumer Warranty
1 Year
UPC
846212023679
Product Specs
+
Specifications
Pump
CFM
14
CFM Rated @
90 PSI
Pump Material
Solid Cast Iron
Pump Type
Single-Stage
Max PSI
155 PSI
Oil Sight Glass
Yes
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Overview
Weight
68 Pounds
Product Length
19 Inches
Product Width
11.18 Inches
Product Height
14.9 Inches
Consumer Warranty
1 Year
UPC
846212023679
