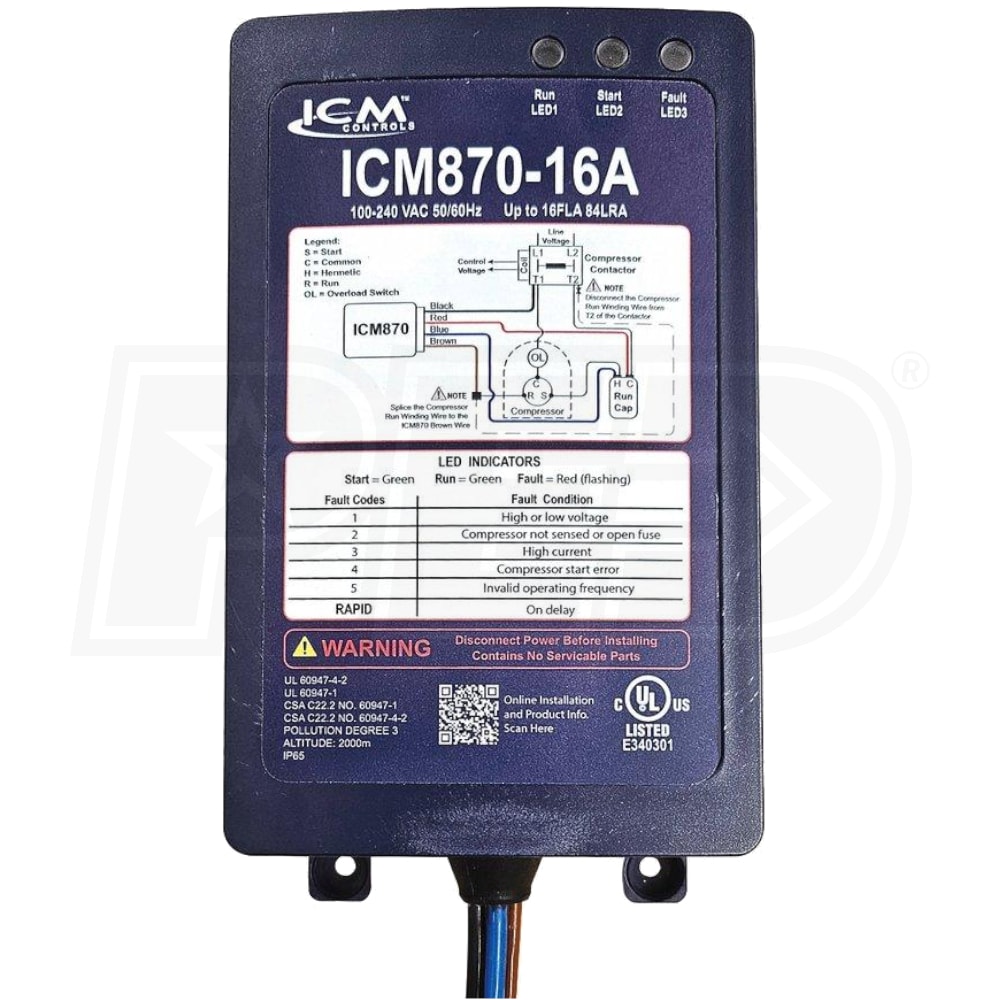

ICM Controls Single Phase Soft Starter 240V For Compressor Load Amp Rating (RLA) of 9.1-16A Max

Model:

ICM870-16A

Write A Review
$298.44
In-Stock
Ships Monday, Dec 8th
Shipping to60601
ICM Controls Single Phase Soft Starter 240V For Compressor Load Amp Rating (RLA) of 9.1-16A Max
ICM Controls Single Phase Soft Starter 240V For Compressor Load Amp Rating (RLA) of 9.1-16A Max
Model: ICM870-16A
$298.44
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Alberto, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    The ICM870 is intended for Marine, Recreational Vehicle, and commercial applications. The ICM870 integrates compressor in-rush current over startup time, thus reducing peak current demand on a power supply source (generator or other). The ICM870 will monitor system health including voltage, current, compressor startup and self integrity. Upon a fault condition, the ICM870 will halt operation and initiate a 4-minute anti-short cycle routine while providing diagnostic fault information by means of an LED indicator.
  • ICM 230V Single-Phase (9.1-16 RLA)
  • Developed to soft start large single phase compressors & motors
  • Reduces the starting current but still provides full torque
  • For use with a Compressor Load Amp Rating (RLA) of 9.1-16A Maximum
  • Reduces in-rush current/draw necessary at startup by up to 70%
  • Prolong the life of the A/C by reducing excessive torque, wear and tear
  • Built-in dynamic start delay
  • Reduce loud noises, light flickering, and breaker trips
  • Built-in self-learning algorithm
  • Over-current protection
  • Over/under voltage monitoring
  • Built-in start capacitor
  • LED fault indicators
  • Ultrasonic sealed tamper-proof enclosure
  • Installation hardware is included
  • 1-Year Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

ICM870-16A
specs product image PID-175643
General Information
Product Category
Generator Accessories
Overview
Product Category
Generator Accessories
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
7.6 Inches
Product Width
3.2 Inches
Product Height
2.1 Inches
UPC
800442123387
Product Specs
Voltage
240 Single-Phase
Frequency
60 Hertz
