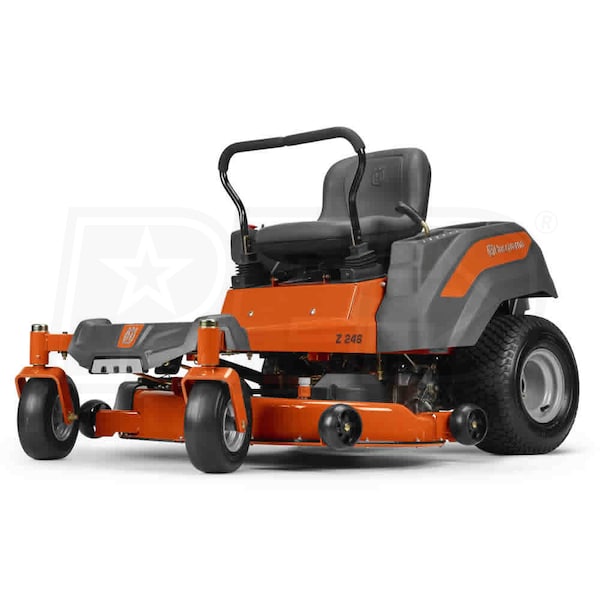

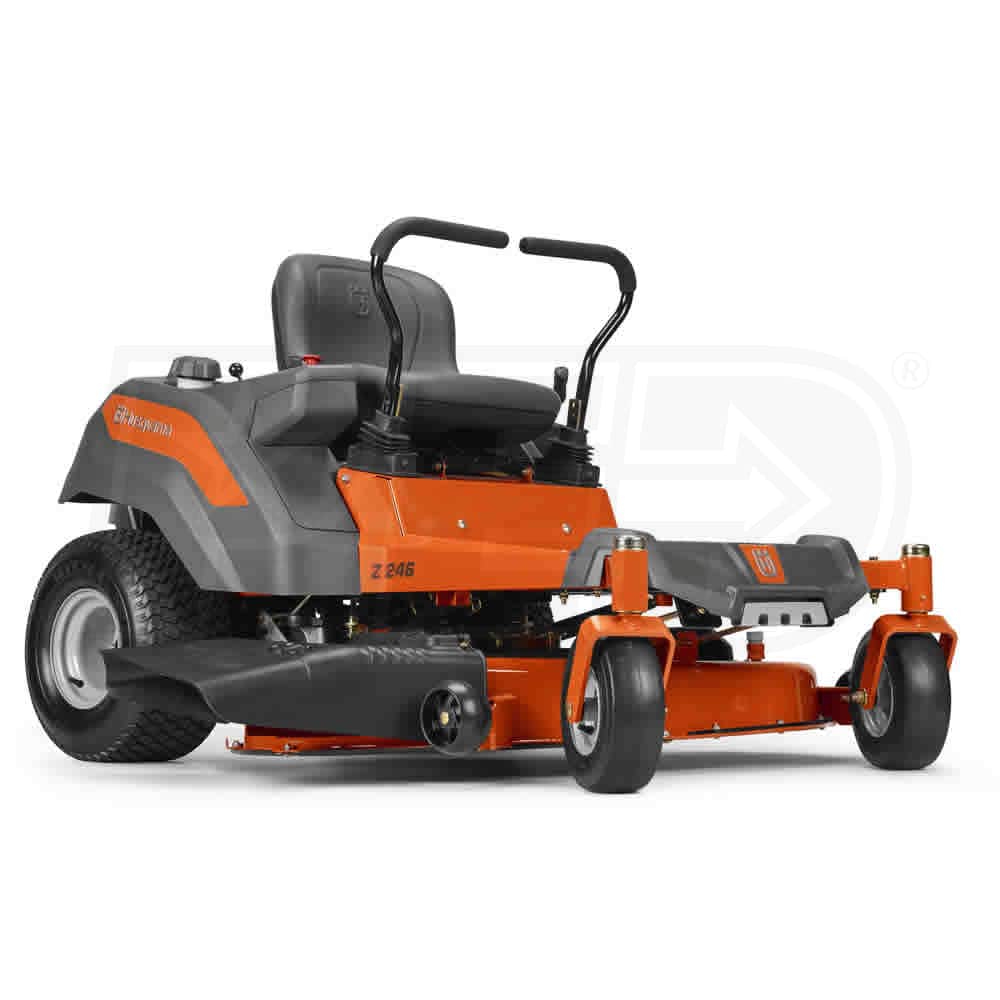

Husqvarna Z246 (46") 20HP Zero Turn Lawn Mower

Model:

970 46 74-01

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Husqvarna Z246 (46
Husqvarna Z246 (46") 20HP Zero Turn Lawn Mower
Model: 970 46 74-01
Product Discontinued
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Features

Grade

Entry Level

Style

Zero Turn

Surface Area

Office Building, Farm, or Parks

Terrain

Hilly

Width

46 Cutting Inches

Engine

Briggs & Stratton

  • 20HP/656cc Briggs & Stratton Endurance V-Twin OHV Engine
  • OHV design for increased efficiency and optimal power transfer
  • Full pressure lubrication system with spin-on oil filter
  • Hydro Gear EZT Hydrostatic Transmission
  • Fan cooled 10cc pumps and wheel motors on each drive wheel

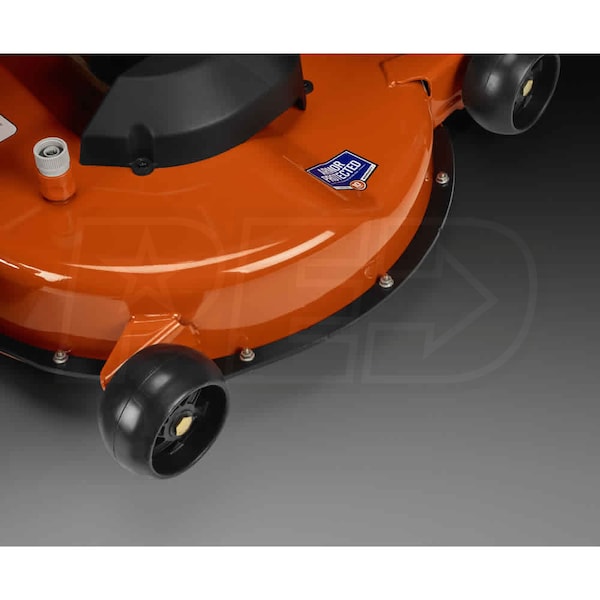

  • 46-Inch Reinforced Stamped Steel Mower Deck
  • Reinforced with 13-gauge welded steel tubing for added durability
  • Mower deck has a 10-year warranty
  • 2 mower blades with greaseable cast aluminum spindles
  • 3 anti-scalp wheels
  • Electric Clutch Deck Engagement
  • Super light deck lift from seated position
  • Comfortable Operation
  • Convenient seat slide with spring suspension
  • Choke, throttle, and ignition in one location for easy access
  • Cup holder, hour meter and deck washout port all included
  • Removable Foot Pan
  • Allows easy access to deck belts, pulleys and spindles
  • Model 970 46 74-01 Is The Same As 967 27 15-01 - Different Crates
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm..
For more information go to: www.p65Warnings.ca.gov

Specifications

970 46 74-01
specs product image PID-73137
Engine
Engine Brand
Briggs & Stratton
Starting System
12-Volt Key Start
Engine Cycle
4-Cycle
HP
20 HP
CC
656 CCs
Fuel Tank Size
3.5 Gallons
Engine Cylinders
2 Cylinders
Oil Filter
Yes
Consumer Engine Warranty
3 Years
Motor
Battery Voltage
12 Volts
Battery Type
Lead Acid
Battery Included
Included
Overview
Weight
580 Pounds
Consumer Warranty
3 Years
Product Length
75.0 Inches
Product Width
56.5 Inches
Product Height
40.0 Inches
Power Type
Gas
UPC
085388592316
Additional Model Numbers

967 27 15-01, 970 46 74-01

Deck
Cutting Options
3-in-1 (Side-Discharge/Bag/Mulch)
Deck Material
13-Gauge
Spindle Material
Aluminum
Blades
2 Blades
Deck Construction
Reinforced Stamped
Deck Positions
6 Positions
Cutting Width
46 Inches
Cutting Height
1.5-4.0 Inches
Deck Lift System
Manual Hand Operated
Engagement
PTO Electric
Deck Drive
Belt
Number of Wheels
3 Wheels
Drive
Speeds
Variable
Maximum Speed
6.5 MPH
Maximum Reverse Speed
3.5 MPH
Drive Wheels
Rear Wheels
Transmission Type
Hydrostatic
Drive System
Hydro-Gear EZT
Accessories
Rear Bagger
Sold Separately
Seat Type
Mid Back w/ Seat Springs
Hour Meter
Included
Arm Rests
Sold Separately
Trailer Hitch
Sold Separately
Mulcher Kit
Sold Separately
Headlights
Sold Separately
Washout Port
Yes
Wheels
Front Tire Size
11 x 4 Inch
Front Axle
Cast-Iron
Rear Tire Size
18 x 9.5 Inch
Tire Type
Pneumatic Wheels
