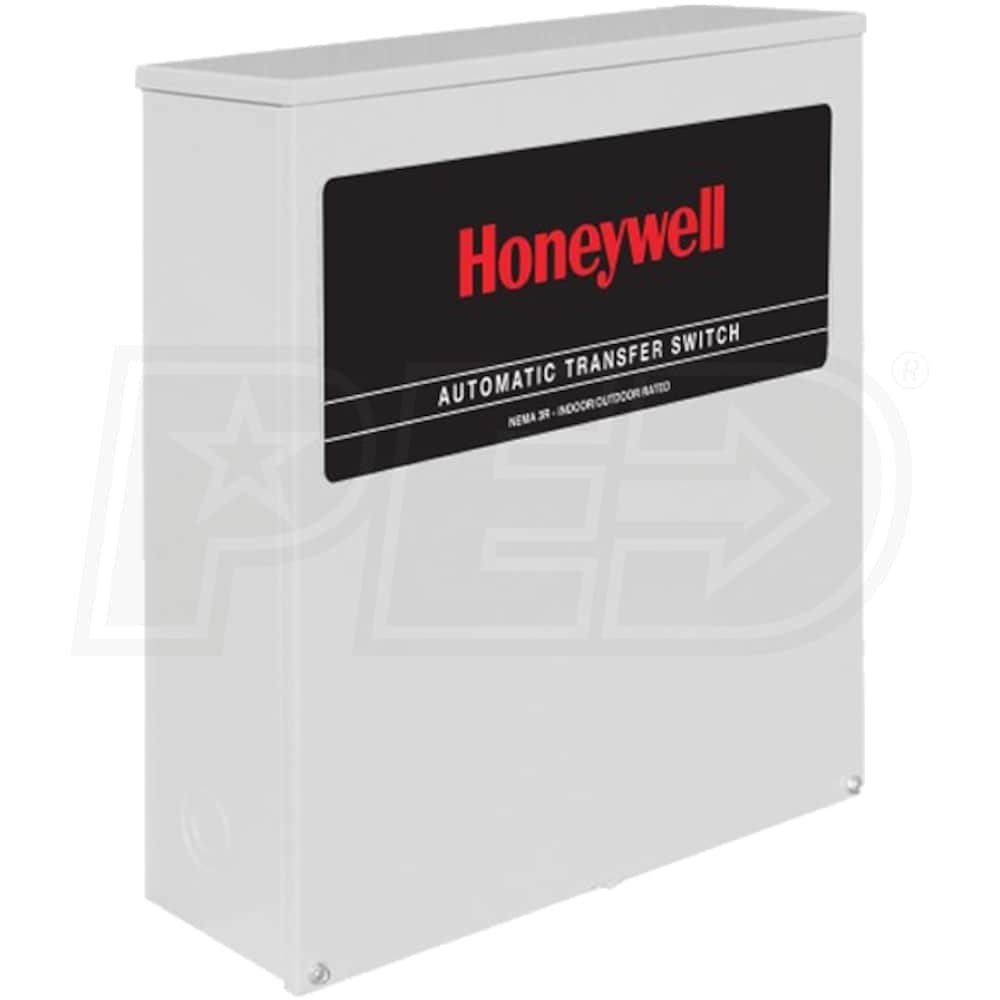

Honeywell™ Commercial 100-Amp Automatic Transfer Switch (120/240V 3-Phase)
Model: RTSZ100J3
No RatingNo RatingNo RatingNo RatingNo Rating
Number of Reviews(0)
Write a Review
$739.00
Holiday Shipping Schedule
Holiday Schedule -
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 4-6 Weeks
Factory items ship direct from the manufacturer. Shipping times vary.
Shipping to60601
Shipping Details
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Available Add-Ons
Learn More Installation
Free Shipping$739.00Buy Now
Free Shipping$739.00Visit Site
Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Type
Standard
Amp Rating
100
Load Mgmt.
Not Compatible
Enclosure
NEMA 3R
Type
Standard
Load Mgmt.
Not Compatible
Enclosure
NEMA 3R
Features
Features
  • 100-Amp Automatic Transfer Switch (120/240V 3-Phase)
  • For 120/208V 3-Phase Honeywell™ Commercial Generators
  • Aluminum, NEMA Type 3R Enclosure
  • Weather-resistant design for indoor & outdoor installation
  • Electrostatically applied and baked powder coating paint (Gray)
  • Designed For Standard Installation*
  • May require a sub-panel for overload protection
  • Work's With Honeywell's Sync 1.0™ Generator Controller
  • Generator's controller handles all the timing, sensing & exercising
  • Electrically Operated, Mechanically-Held Contacts
  • For fast, positive connections that you can depend on
  • Tech Spec Summary: (See Spec Sheet For More Info)
  • Rated 100-Amps @ 240V 3-Phase
  • Transition Type: Open
  • Withstand Rating: 14,000 Amps --- Lug Range: 2/0 - #14
  • 2-Year Limited Warranty
Specifications
Product Specs
Voltage
120/240 Three-Phase
Frequency
60 Hertz
Rated Amps
100 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Standard Installation
ATS Load Prioritizing
Not Compatible
ATS Load Shedding
Not Compatible
ATS Poles
3 Poles
ATS Service Disconnect
No
Max Utility Input
100 Amps
Max Generator Input
100 Amps
UL Listed
Yes
Overview
Weight
20 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Product Length
24.1 Inches
Product Width
20.2 Inches
Product Height
7.1 Inches
UPC
696471612929
Type
Standard
Amp Rating
100
Load Mgmt.
Not Compatible
Enclosure
NEMA 3R
Type
Standard
Load Mgmt.
Not Compatible
Enclosure
NEMA 3R
Features
Features
  • 100-Amp Automatic Transfer Switch (120/240V 3-Phase)
  • For 120/208V 3-Phase Honeywell™ Commercial Generators
  • Aluminum, NEMA Type 3R Enclosure
  • Weather-resistant design for indoor & outdoor installation
  • Electrostatically applied and baked powder coating paint (Gray)
  • Designed For Standard Installation*
  • May require a sub-panel for overload protection
  • Work's With Honeywell's Sync 1.0™ Generator Controller
  • Generator's controller handles all the timing, sensing & exercising
  • Electrically Operated, Mechanically-Held Contacts
  • For fast, positive connections that you can depend on
  • Tech Spec Summary: (See Spec Sheet For More Info)
  • Rated 100-Amps @ 240V 3-Phase
  • Transition Type: Open
  • Withstand Rating: 14,000 Amps --- Lug Range: 2/0 - #14
  • 2-Year Limited Warranty
