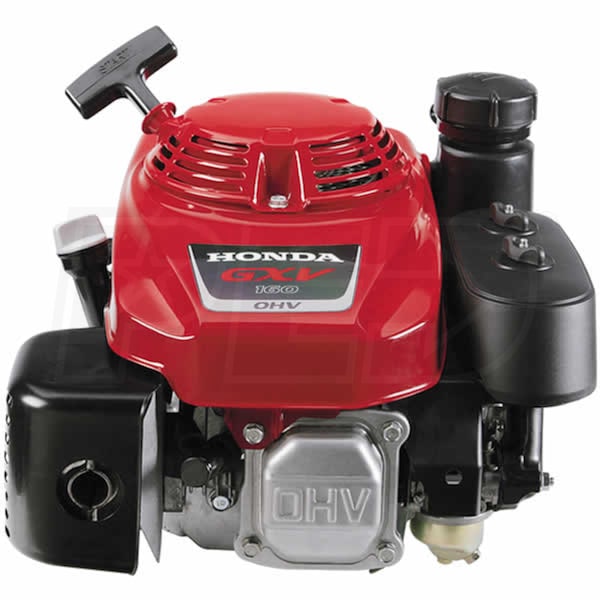

Honda GXV160™ 163cc OHV Vertical Engine w/ Heavy-Duty Flywheel, 7/8" x 3.14" Crankshaft, Tapped 3/8"-24
Model: GXV160UH2N1MH
+
Share This Product
-
Product Description
-
1Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Features
Features
- Model# GXV160UH2N1MH - Heavy-Duty Flywheel, 7/8" Multi-Stepped Crankshaft
- Vertical Crankshaft for walk behind lawn mowers with a blade brake clutch only
- Honda GX160™ Series Single Cylinder Air-Cooled 4-Cycle Gas Engine
- Produces 7.1 ft-lbs of torque @ 2500 RPM - Power levels are stated Net torque
- Overhead Valve (OHV) Technology
- Maximizes fuel efficiency while reducing noise and emissions
- Ball Bearing Supported Precision Camshaft Design
- Optimized valve timing / overlap for smooth & fuel efficient power
- Splash Lubrication System
- Combined with a cast iron cylinder sleeve for increased wear resistance & long life
- Float-Type Carburetor & Fuel Shut-Off Valve
- Allows for more reliable starting, safety and longevity
- Heavy-Duty Recoil Starter w/ Automatic Mechanical De-Compression System
- Requires less pulling force, for easier and quicker starting
- Quieter Operation
- Lightweight noise-reducing materials plus intake/exhaust improvements
- Maintenance-Friendly
- Quicker oil changes with dual oil drains/fill and operator-friendly spark plug location
- Manual Throttle Control & Remoted (Wire) Choke Control
- Easily set the right amount of power for yoru applications
- Also Includes:
- .475-Gallon Plastic Fuel Tank & Muffler
- EPA & CARB Compliant
- 3-Year Consumer & 3-Year Commercial Warranty
Specifications
Engine
Engine Series
Honda GX
Engine Style
Vertical
Engine Type
4-Cycle OHV
Cylinders
1
Cooling System
Air
Dry Weight
32 Lbs
CC
163 CCs
HP
4.3 HP
Net Torque
7.1 Lbs
Cylinder Bore Type
Cast Iron
Bore
2.7 Inches
Stroke
1.8 Inches
Compression Ratio
8:1
Systems
Starting System
Recoil Only
Ignition System
Transistorized Magneto
Lubrication
Lubrication
Splash
Oil Filter
No
Oil Capacity
22 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Float
Muffler
Included
Air Cleaner
Dual Element
Fuel Tank Size
.5 Gallons
Fuel Tank
Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
7/8 x 3-5/32 Inches
Crankshaft Type
Straight
Crankshaft Diameter
7/8"
Crankshaft Length
3-5/32"
Crankshaft End Tapped Size
3/8"-24
Crankshaft Keyway Width
3/16 Inches
Overview
Weight
38 Pounds
Made in USA
No
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
16.3 Inches
Product Width
14.8 Inches
Product Height
13.6" Inches
Features
Features
- Model# GXV160UH2N1MH - Heavy-Duty Flywheel, 7/8" Multi-Stepped Crankshaft
- Vertical Crankshaft for walk behind lawn mowers with a blade brake clutch only
- Honda GX160™ Series Single Cylinder Air-Cooled 4-Cycle Gas Engine
- Produces 7.1 ft-lbs of torque @ 2500 RPM - Power levels are stated Net torque
- Overhead Valve (OHV) Technology
- Maximizes fuel efficiency while reducing noise and emissions
- Ball Bearing Supported Precision Camshaft Design
- Optimized valve timing / overlap for smooth & fuel efficient power
- Splash Lubrication System
- Combined with a cast iron cylinder sleeve for increased wear resistance & long life
- Float-Type Carburetor & Fuel Shut-Off Valve
- Allows for more reliable starting, safety and longevity
- Heavy-Duty Recoil Starter w/ Automatic Mechanical De-Compression System
- Requires less pulling force, for easier and quicker starting
- Quieter Operation
- Lightweight noise-reducing materials plus intake/exhaust improvements
- Maintenance-Friendly
- Quicker oil changes with dual oil drains/fill and operator-friendly spark plug location
- Manual Throttle Control & Remoted (Wire) Choke Control
- Easily set the right amount of power for yoru applications
- Also Includes:
- .475-Gallon Plastic Fuel Tank & Muffler
- EPA & CARB Compliant
- 3-Year Consumer & 3-Year Commercial Warranty
Specifications
Engine
Engine Series
Honda GX
Engine Style
Vertical
Engine Type
4-Cycle OHV
Cylinders
1
Cooling System
Air
Dry Weight
32 Lbs
CC
163 CCs
HP
4.3 HP
Net Torque
7.1 Lbs
Cylinder Bore Type
Cast Iron
Bore
2.7 Inches
Stroke
1.8 Inches
Compression Ratio
8:1
Systems
Starting System
Recoil Only
Ignition System
Transistorized Magneto
Lubrication
Lubrication
Splash
Oil Filter
No
Oil Capacity
22 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Float
Muffler
Included
Air Cleaner
Dual Element
Fuel Tank Size
.5 Gallons
Fuel Tank
Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
7/8 x 3-5/32 Inches
Crankshaft Type
Straight
Crankshaft Diameter
7/8"
Crankshaft Length
3-5/32"
Crankshaft End Tapped Size
3/8"-24
Crankshaft Keyway Width
3/16 Inches
Overview
Weight
38 Pounds
Made in USA
No
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
16.3 Inches
Product Width
14.8 Inches
Product Height
13.6" Inches
Product Specs
+−
Specifications
Engine
Engine Series
Honda GX
Engine Style
Vertical
Engine Type
4-Cycle OHV
Cylinders
1
Cooling System
Air
Dry Weight
32 Lbs
CC
163 CCs
HP
4.3 HP
Net Torque
7.1 Lbs
Cylinder Bore Type
Cast Iron
Bore
2.7 Inches
Stroke
1.8 Inches
Compression Ratio
8:1
Systems
Starting System
Recoil Only
Ignition System
Transistorized Magneto
Lubrication
Lubrication
Splash
Oil Filter
No
Oil Capacity
22 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Float
Muffler
Included
Air Cleaner
Dual Element
Fuel Tank Size
.5 Gallons
Fuel Tank
Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
7/8 x 3-5/32 Inches
Crankshaft Type
Straight
Crankshaft Diameter
7/8"
Crankshaft Length
3-5/32"
Crankshaft End Tapped Size
3/8"-24
Crankshaft Keyway Width
3/16 Inches
Overview
Weight
38 Pounds
Made in USA
No
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
16.3 Inches
Product Width
14.8 Inches
Product Height
13.6" Inches
