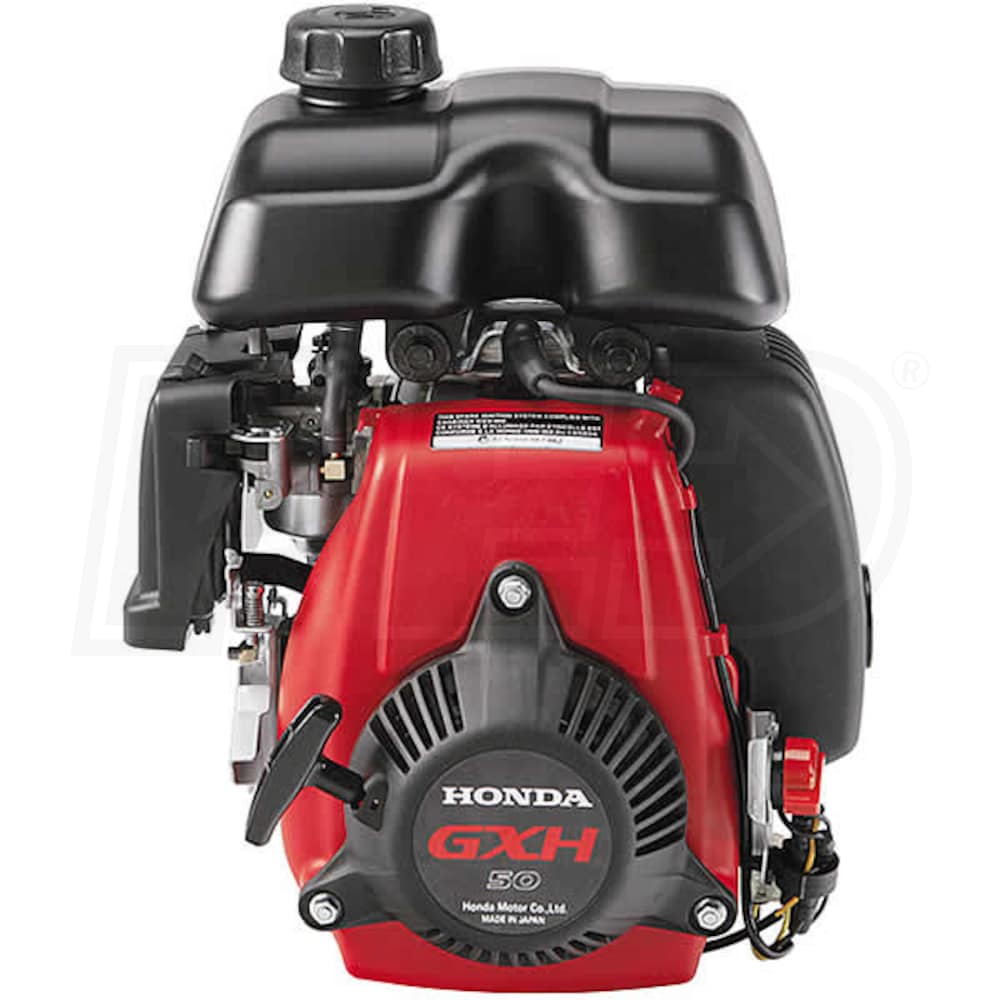

Honda GXH50™ 49cc OHV Horizontal Engine, 5/8" x 1-1/4" Crankshaft
Honda GXH50™ 49cc OHV Horizontal Engine, 5/8" x 1-1/4" Crankshaft
+
Share This Product
-
Product Description
-
Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Features
Features
- Model# GXH50UTQXA - 5/8" x 1-1/4" Crankshaft
- 2-Year Consumer & 2-Year Commercial Warranty
- Great for generators, pumps, small lawn/garden equipment
- Honda GXH50™ Series Single Cylinder Air-Cooled 4-Cycle Gas Engine
- Produces 2.0 ft-lbs of torque @ 4000 RPM - Power levels are stated Net torque
- Overhead Valve (OHV) Technology
- Maximizes fuel efficiency while reducing noise and vibrations
- Ball Bearing Supported Precision Camshaft Design
- Optimized valve timing / overlap for smooth & fuel efficient power
- Splash Lubrication System
- Combined with a cast iron cylinder sleeve for increased wear resistance & long life
- Heavy-Duty Recoil Starter w/ Automatic Mechanical De-Compression System
- Requires less pulling force, for easier and quicker starting
- Float-Type Carburetor & Fuel Shut-Off Valve
- Allows for more reliable starting, safety and longevity
- Advanced chamber coating & filter helps reduce gum and varnish
- Quieter Operation
- Noise-reducing materials, advanced air intake & multi-chamber exhaust
- Automotive-Type Fuel Cap
- Makes it easier and cleaner to fill up the tank
- Easy Maintenance
- Operator-friendly oil fill/drain & spark plug location
- Includes .2025-Gallon Fuel Tank
- EPA & CARB Compliant
Specifications
Engine
Engine Series
Honda GX
Engine Style
Vertical
Engine Type
4-Cycle OHV
Cylinders
1
Cooling System
Air
Dry Weight
12.1 Lbs
CC
49.4 CCs
HP
2.1 HP
Net Torque
2.0 Lbs
Cylinder Bore Type
Cast Iron
Bore
1.65 Inches
Stroke
1.42 Inches
Compression Ratio
8:1
Systems
Starting System
Recoil Only
Ignition System
Transistorized Magneto
Lubrication
Lubrication
Splash
Oil Filter
No
Oil Capacity
8.3 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Float
Muffler
Included
Air Cleaner
Dry (Paper)
Fuel Tank Size
0.2 Gallons
Fuel Tank
Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
5/8 x 1-1/4 Inches
Crankshaft Type
Straight
Crankshaft Diameter
5/8"
Crankshaft Length
1-1/4"
Crankshaft End Tapped Size
1/4"-28
Crankshaft Keyway Width
3/16 Inches
PTO Height
3-11/32 Inches
Overview
Made in USA
No
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
8.9" Inches
Product Width
10.8" Inches
Product Height
13.0" Inches
