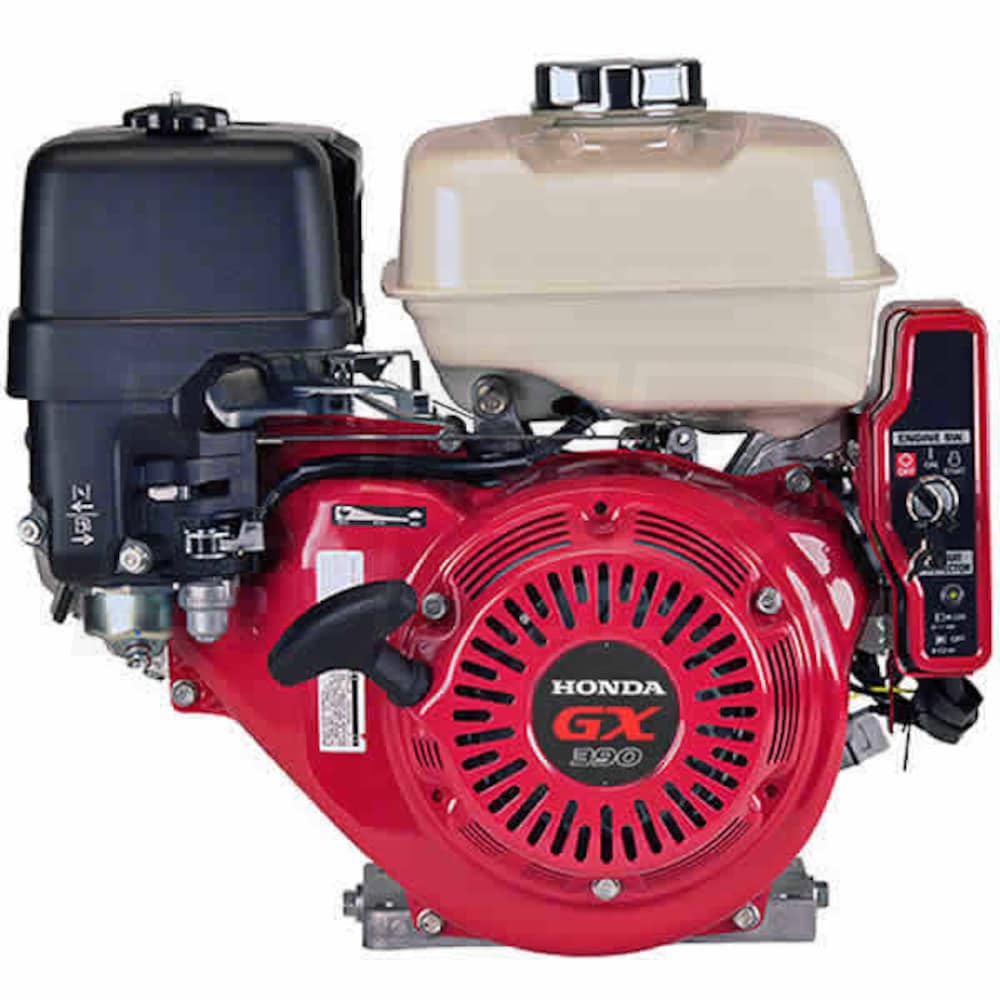

Honda GX390 389cc OHV 6:1 Gear Reduction (No Clutch) Electric Start Horizontal Engine, Oil Alert, 1" x 3-5/32" Crankshaft

Honda GX390 389cc OHV 6:1 Gear Reduction (No Clutch) Electric Start Horizontal Engine, Oil Alert, 1" x 3-5/32" Crankshaft
Our Price
Compare Prices
Shipping Info
Model: GX390HAE2
$1,169.99

Only 1 In-Stock
Ships Monday, Dec 16th
Shipping Crate Icon
Free Shipping
Holiday Shipping Schedule
Holiday Schedule -
Only 1 In-Stock
Ships Monday, Dec 16th
Free Shipping
Free Shipping
Expedited Shipping
Expedited Shipping
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+

Features
Features
  • Model# GX390HAE2 - Electric Start - 3-Amp Charging Oil Alert System, 1" x 3-5/32" Crankshaft
  • 3-Year Consumer & 3-Year Commercial Warranty
  • **NOTE** 6:1 Gear Reduction (No Clutch) Electric Start; For Cement Mixers & other equipment where gear reduction is required
  • Honda GX390™ Series Single Cylinder Air-Cooled 4-Cycle Gas Engine
  • Produces 19.5 ft-lbs of torque @ 2500 RPM - Power levels are stated Net torque
  • Overhead Valve (OHV) Technology
  • Maximizes fuel efficiency while reducing noise and emissions
  • Variable Timing Digital CDI Ignition
  • RPM based design, with built-in rev-limiter, optimizes ignition timing
  • Easier starting, more power, less fuel use and reduced emissions
  • Ball Bearing Supported Precision Camshaft Design
  • Optimized valve timing / overlap for smooth & fuel efficient power
  • Oil Alert® Warning System
  • Crankcase mounted sensor helps prevent a low oil condition
  • Provides a visual warning & stops the engine automatically
  • Splash Lubrication System
  • Combined with a cast iron cylinder sleeve for increased wear resistance & long life
  • Butterfly-Type Carburetor & Fuel Shut-Off Valve
  • Allows for more reliable starting, safety and longevity
  • Advanced chamber coating & filter helps reduce gum and varnish
  • Heavy-Duty Recoil Starter w/ Automatic Mechanical De-Compression System
  • Requires less pulling force, for easier and quicker starting
  • Quieter Operation
  • Re-designed camshaft & muffler reduce overall engine noise by up to 5 dB
  • Maintenance-Friendly
  • Quicker oil changes with dual oil drains/fill and operator-friendly spark plug location
  • Includes 1.4-Gallon Metal Fuel Tank w/ Sediment-Screen
  • 50-State Engine, EPA & CARB Compliant
Specifications
Engine
Engine Series
Honda GX
Engine Style
Horizontal
Engine Type
4-Cycle OHV
Cylinders
1
Cooling System
Air
Dry Weight
69 Lbs
CC
389 CCs
HP
11.7 HP
Net Torque
19.5 Lbs
Cylinder Bore Type
Cast Iron
Bore
3.5 Inches
Compression Ratio
8.5:1
Stroke
2.5 Inches
Systems
Charging System
3 Amps
Starting System
Recoil Only
Ignition System
Digital CDI w/ Variable Timing
Lubrication
Lubrication
Splash
Oil Filter
No
Oil Capacity
38 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Butterfly
Muffler
Included
Air Cleaner
Dual Element
Fuel Tank Size
1.4 Gallons
Fuel Tank
Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
1 x 3-5/32 Inch
Crankshaft Type
6:1 Gear Reduction
Crankshaft Diameter
1"
Crankshaft Length
3-5/32"
Crankshaft Keyway Width
1/4 Inch
PTO Height
5-1/4 Inches
Overview
Weight
69 Pounds
Made in USA
No
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Length
16" Inches
Product Width
19.1" Inches
Product Height
17.7" Inches

Features
Features
  • Model# GX390HAE2 - Electric Start - 3-Amp Charging Oil Alert System, 1" x 3-5/32" Crankshaft
  • 3-Year Consumer & 3-Year Commercial Warranty
  • **NOTE** 6:1 Gear Reduction (No Clutch) Electric Start; For Cement Mixers & other equipment where gear reduction is required
  • Honda GX390™ Series Single Cylinder Air-Cooled 4-Cycle Gas Engine
  • Produces 19.5 ft-lbs of torque @ 2500 RPM - Power levels are stated Net torque
  • Overhead Valve (OHV) Technology
  • Maximizes fuel efficiency while reducing noise and emissions
  • Variable Timing Digital CDI Ignition
  • RPM based design, with built-in rev-limiter, optimizes ignition timing
  • Easier starting, more power, less fuel use and reduced emissions
  • Ball Bearing Supported Precision Camshaft Design
  • Optimized valve timing / overlap for smooth & fuel efficient power
  • Oil Alert® Warning System
  • Crankcase mounted sensor helps prevent a low oil condition
  • Provides a visual warning & stops the engine automatically
  • Splash Lubrication System
  • Combined with a cast iron cylinder sleeve for increased wear resistance & long life
  • Butterfly-Type Carburetor & Fuel Shut-Off Valve
  • Allows for more reliable starting, safety and longevity
  • Advanced chamber coating & filter helps reduce gum and varnish
  • Heavy-Duty Recoil Starter w/ Automatic Mechanical De-Compression System
  • Requires less pulling force, for easier and quicker starting
  • Quieter Operation
  • Re-designed camshaft & muffler reduce overall engine noise by up to 5 dB
  • Maintenance-Friendly
  • Quicker oil changes with dual oil drains/fill and operator-friendly spark plug location
  • Includes 1.4-Gallon Metal Fuel Tank w/ Sediment-Screen
  • 50-State Engine, EPA & CARB Compliant
Specifications
Engine
Engine Series
Honda GX
Engine Style
Horizontal
Engine Type
4-Cycle OHV
Cylinders
1
Cooling System
Air
Dry Weight
69 Lbs
CC
389 CCs
HP
11.7 HP
Net Torque
19.5 Lbs
Cylinder Bore Type
Cast Iron
Bore
3.5 Inches
Compression Ratio
8.5:1
Stroke
2.5 Inches
Systems
Charging System
3 Amps
Starting System
Recoil Only
Ignition System
Digital CDI w/ Variable Timing
Lubrication
Lubrication
Splash
Oil Filter
No
Oil Capacity
38 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Butterfly
Muffler
Included
Air Cleaner
Dual Element
Fuel Tank Size
1.4 Gallons
Fuel Tank
Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
1 x 3-5/32 Inch
Crankshaft Type
6:1 Gear Reduction
Crankshaft Diameter
1"
Crankshaft Length
3-5/32"
Crankshaft Keyway Width
1/4 Inch
PTO Height
5-1/4 Inches
Overview
Weight
69 Pounds
Made in USA
No
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Length
16" Inches
Product Width
19.1" Inches
Product Height
17.7" Inches
Product Specs
+
Specifications
Engine
Engine Series
Honda GX
Engine Style
Horizontal
Engine Type
4-Cycle OHV
Cylinders
1
Cooling System
Air
Dry Weight
69 Lbs
CC
389 CCs
HP
11.7 HP
Net Torque
19.5 Lbs
Cylinder Bore Type
Cast Iron
Bore
3.5 Inches
Compression Ratio
8.5:1
Stroke
2.5 Inches
Systems
Charging System
3 Amps
Starting System
Recoil Only
Ignition System
Digital CDI w/ Variable Timing
Lubrication
Lubrication
Splash
Oil Filter
No
Oil Capacity
38 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Butterfly
Muffler
Included
Air Cleaner
Dual Element
Fuel Tank Size
1.4 Gallons
Fuel Tank
Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
1 x 3-5/32 Inch
Crankshaft Type
6:1 Gear Reduction
Crankshaft Diameter
1"
Crankshaft Length
3-5/32"
Crankshaft Keyway Width
1/4 Inch
PTO Height
5-1/4 Inches
Overview
Weight
69 Pounds
Made in USA
No
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Length
16" Inches
Product Width
19.1" Inches
Product Height
17.7" Inches
