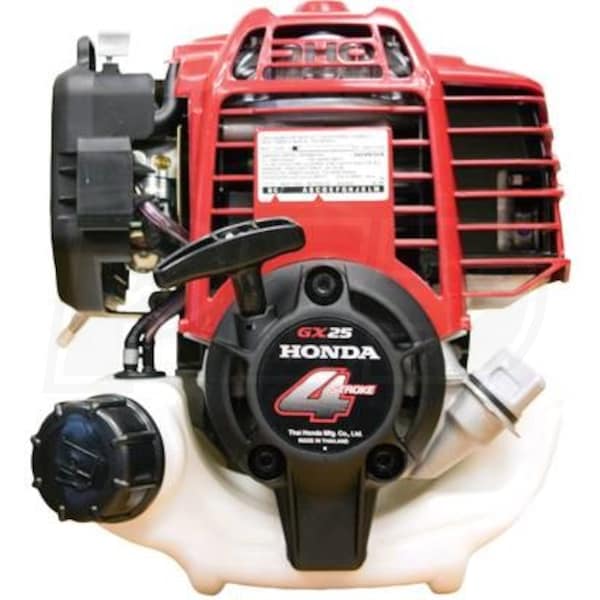

Honda GX25™ 25cc Mini 4-Stroke OHC Vertical Engine, Clutched PTO

Honda GX25™ 25cc Mini 4-Stroke OHC Vertical Engine, Clutched PTO
Model: GX25NTT3
(Based on expert analysis, manufacturer ratings and customer reviews)
4.5 out of 54.5 out of 54.5 out of 54.5 out of 54.5 out of 5
Number of Reviews (2)
Write A Review
$239.99
Only 1 In-Stock
Ships Tuesday, Sep 25th
Free Shipping
Only 1 In-Stock
Ships Tuesday, Sep 25th
Free Shipping
Free Shipping
Expedited Shipping
Expedited Shipping
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • 2
    Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+

Features
Features
  • Model# GX25NTT3 - Clutched PTO (Vertical)
  • 2-Year Consumer & 1-Year Commercial Warranty
  • Great for trimmers, augers, small lawn/garden equipment
  • Honda GX25 Mini 4-Stroke Single Cylinder Air-Cooled Gas Engine
  • Produces 0.74 ft-lbs of torque @ 5000 RPM - Power levels are stated Net torque
  • 4-Stroke - No Fuel/Oil Mixing
  • About half the operation cost compared to a 2-stroke engine
  • Full 360 "Any-Side-Up" Operation
  • Operate & store in any position you want without compromise
  • Honda's Exclusive Rotary-Slinger Lubrication System
  • Keeps oil in misted state and continusously circulates oil for total protection
  • Overhead Cam (OHC) Technology
  • Belt-driven design & lightweight piston reduces noise & vibrations
  • Larger valves & redesigned port configiration maximize ouput
  • Ball Bearing Supported Precision Camshaft Design
  • Combined with other percision components minimize vibrations
  • Diaphragm Carburetor w/ Accelerator Pump
  • Fast, easy acceleration, regardless of position of engine
  • Heavy-Duty Recoil Starter w/ Automatic Mechanical De-Compression System
  • Requires less pulling force, for easier and quicker starting
  • Easy Maintenance
  • Operator-friendly oil fill/drain & spark plug location
  • Includes: Clutch w/ Crank/Piston Assembly
  • EPA & CARB Compliant
Specifications
Engine
Engine Series
Honda GX
Engine Style
Vertical
Cylinders
1
Engine Type
4-Cycle OHV
Cooling System
Air
Dry Weight
6.8 Lbs
CC
25 CCs
HP
1.0 HP
Net Torque
0.74 Lbs
Cylinder Bore Type
Aluminum
Bore
1.4 Inches
Stroke
1.0 Inch
Compression Ratio
8:1
Systems
Starting System
Recoil Only
Ignition System
Transistorized Magneto
Lubrication
Lubrication
Splash
Oil Filter
No
Oil Capacity
2.7 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Diaphragm
Muffler
Included
Air Cleaner
Dry (Paper)
Fuel Tank Size
.14 Gallons
Fuel Tank
Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
Clutched PTO Inches
Crankshaft Type
Clutched
PTO Height
3.5 Inches
Overview
Made in USA
No
Product Length
7.6" Inches
Product Width
8.7" Inches
Product Height
9.1" Inches
Consumer Warranty
2 Years
Commercial Warranty
1 Year

Features
Features
  • Model# GX25NTT3 - Clutched PTO (Vertical)
  • 2-Year Consumer & 1-Year Commercial Warranty
  • Great for trimmers, augers, small lawn/garden equipment
  • Honda GX25 Mini 4-Stroke Single Cylinder Air-Cooled Gas Engine
  • Produces 0.74 ft-lbs of torque @ 5000 RPM - Power levels are stated Net torque
  • 4-Stroke - No Fuel/Oil Mixing
  • About half the operation cost compared to a 2-stroke engine
  • Full 360 "Any-Side-Up" Operation
  • Operate & store in any position you want without compromise
  • Honda's Exclusive Rotary-Slinger Lubrication System
  • Keeps oil in misted state and continusously circulates oil for total protection
  • Overhead Cam (OHC) Technology
  • Belt-driven design & lightweight piston reduces noise & vibrations
  • Larger valves & redesigned port configiration maximize ouput
  • Ball Bearing Supported Precision Camshaft Design
  • Combined with other percision components minimize vibrations
  • Diaphragm Carburetor w/ Accelerator Pump
  • Fast, easy acceleration, regardless of position of engine
  • Heavy-Duty Recoil Starter w/ Automatic Mechanical De-Compression System
  • Requires less pulling force, for easier and quicker starting
  • Easy Maintenance
  • Operator-friendly oil fill/drain & spark plug location
  • Includes: Clutch w/ Crank/Piston Assembly
  • EPA & CARB Compliant
Specifications
Engine
Engine Series
Honda GX
Engine Style
Vertical
Cylinders
1
Engine Type
4-Cycle OHV
Cooling System
Air
Dry Weight
6.8 Lbs
CC
25 CCs
HP
1.0 HP
Net Torque
0.74 Lbs
Cylinder Bore Type
Aluminum
Bore
1.4 Inches
Stroke
1.0 Inch
Compression Ratio
8:1
Systems
Starting System
Recoil Only
Ignition System
Transistorized Magneto
Lubrication
Lubrication
Splash
Oil Filter
No
Oil Capacity
2.7 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Diaphragm
Muffler
Included
Air Cleaner
Dry (Paper)
Fuel Tank Size
.14 Gallons
Fuel Tank
Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
Clutched PTO Inches
Crankshaft Type
Clutched
PTO Height
3.5 Inches
Overview
Made in USA
No
Product Length
7.6" Inches
Product Width
8.7" Inches
Product Height
9.1" Inches
Consumer Warranty
2 Years
Commercial Warranty
1 Year
Product Specs
+
Specifications
Engine
Engine Series
Honda GX
Engine Style
Vertical
Cylinders
1
Engine Type
4-Cycle OHV
Cooling System
Air
Dry Weight
6.8 Lbs
CC
25 CCs
HP
1.0 HP
Net Torque
0.74 Lbs
Cylinder Bore Type
Aluminum
Bore
1.4 Inches
Stroke
1.0 Inch
Compression Ratio
8:1
Systems
Starting System
Recoil Only
Ignition System
Transistorized Magneto
Lubrication
Lubrication
Splash
Oil Filter
No
Oil Capacity
2.7 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Diaphragm
Muffler
Included
Air Cleaner
Dry (Paper)
Fuel Tank Size
.14 Gallons
Fuel Tank
Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
Clutched PTO Inches
Crankshaft Type
Clutched
PTO Height
3.5 Inches
Overview
Made in USA
No
Product Length
7.6" Inches
Product Width
8.7" Inches
Product Height
9.1" Inches
Consumer Warranty
2 Years
Commercial Warranty
1 Year
