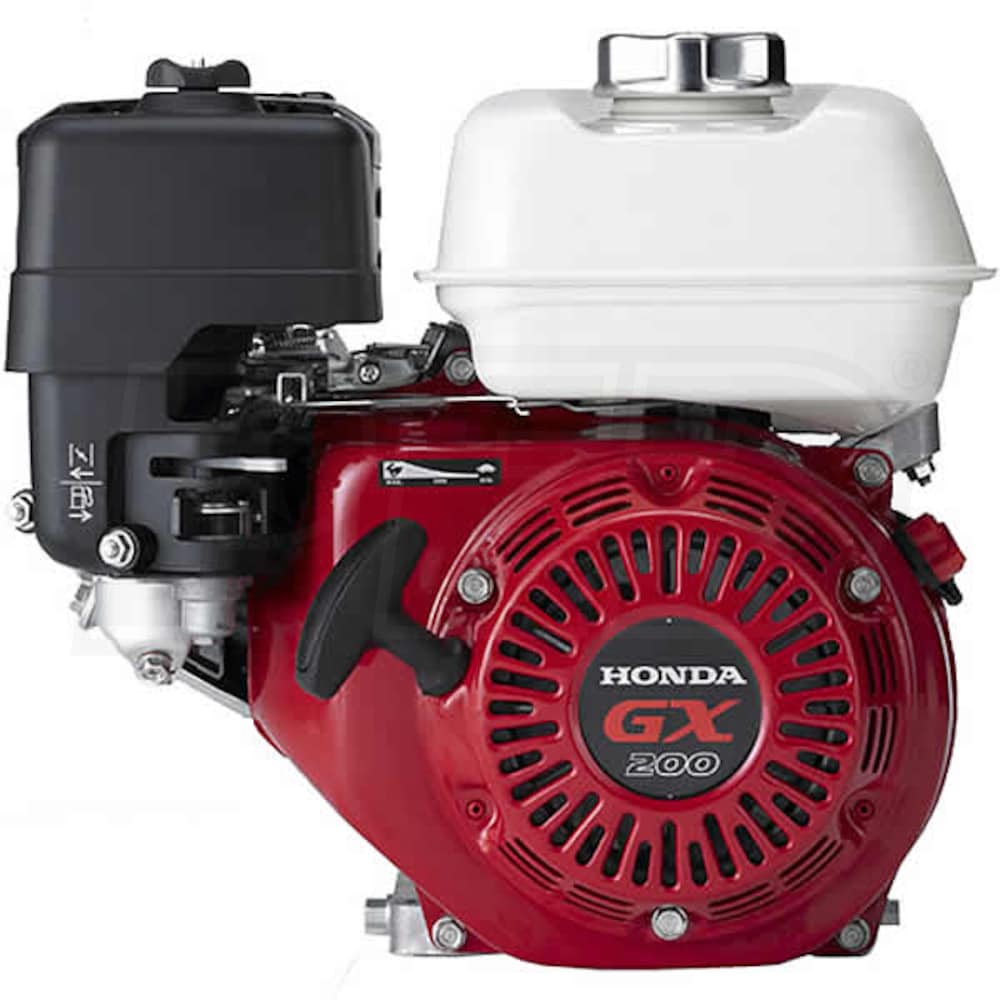

Honda GX200™ 196cc OHV 2:1 Gear Reduction Horizontal Engine, Oil Bath Clutch, 22mm x 2.05" Crankshaft

Honda GX200™ 196cc OHV 2:1 Gear Reduction Horizontal Engine, Oil Bath Clutch, 22mm x 2.05" Crankshaft
Our Price
Compare Prices
Shipping Info
Model: GX200UT2RH2
No RatingNo RatingNo RatingNo RatingNo Rating
Number of Reviews (0)
Write A Review
$649.99

Ships in 4-7 Business Days
Shipping Crate Icon
Free Shipping
Ships in 4-7 Business Days
Free Shipping
Free Shipping
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+

Features
Features
  • Model# GX200UT2RH2 - 22mm x 2.05" Crankshaft
  • 2:1 Gear Reduction w/ Oil Bath Clutch, For use in farm equiment
  • Honda GX200™ Series Single Cylinder Air-Cooled 4-Cycle Gas Engine
  • Produces 9.10 ft-lbs of torque @ 2500 RPM - Power levels are stated Net torque
  • Overhead Valve (OHV) Technology
  • Maximizes fuel efficiency while reducing noise and emissions
  • Ball Bearing Supported Precision Camshaft Design
  • Optimized valve timing / overlap for smooth & fuel efficient power
  • Splash Lubrication System
  • Combined with a cast iron cylinder sleeve for increased wear resistance & long life
  • Butterfly-Type Carburetor & Fuel Shut-Off Valve
  • Allows for more reliable starting, safety and longevity
  • Advanced chamber coating & filter helps reduce gum and varnish
  • Heavy-Duty Recoil Starter w/ Automatic Mechanical De-Compression System
  • Requires less pulling force, for easier and quicker starting
  • Quieter Operation
  • Lightweight noise-reducing materials plus intake/exhaust improvements
  • Maintenance-Friendly
  • Quicker oil changes with dual oil drains/fill and operator-friendly spark plug location
  • Manual Throttle Control
  • Easily set the right amount of power for yoru applications
  • Also Includes: 2:1 Gear Reduction w/ Wet Clutch
  • .825-Gallon Metal Fuel Tank w/ Sediment-Screen
  • EPA & CARB Compliant
  • 3-Year Consumer & 3-Year Commercial Warranty
Specifications
Engine
Engine Series
Honda GX
Engine Style
Horizontal
Engine Type
4-Cycle OHV
Cylinders
1
Cooling System
Air
Dry Weight
35 Lbs
CC
196 CCs
HP
5.5 HP
Net Torque
9.1 Lbs
Cylinder Bore Type
Cast Iron
Bore
2.7 Inches
Compression Ratio
8.5:1
Stroke
2.1 Inches
Systems
Starting System
Recoil Only
Ignition System
Transistorized Magneto
Lubrication
Lubrication
Splash
Oil Filter
No
Oil Capacity
20 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Butterfly
Muffler
Included
Air Cleaner
Dual Element
Fuel Tank Size
.825 Gallons
Fuel Tank
Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
7/8 (22mm) x 2-23/32 Inches
Crankshaft Type
2:1 Gear Reduction
Crankshaft Diameter
7/8"
Crankshaft Length
2-23/32"
Crankshaft End Tapped Size
M8 x 1.25
Crankshaft Keyway Width
7mm Inches
PTO Height
4-11/64 Inches
Overview
Weight
50 Pounds
Made in USA
No
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Length
12.6" Inches
Product Width
14.8" Inches
Product Height
13.6" Inches

Features
Features
  • Model# GX200UT2RH2 - 22mm x 2.05" Crankshaft
  • 2:1 Gear Reduction w/ Oil Bath Clutch, For use in farm equiment
  • Honda GX200™ Series Single Cylinder Air-Cooled 4-Cycle Gas Engine
  • Produces 9.10 ft-lbs of torque @ 2500 RPM - Power levels are stated Net torque
  • Overhead Valve (OHV) Technology
  • Maximizes fuel efficiency while reducing noise and emissions
  • Ball Bearing Supported Precision Camshaft Design
  • Optimized valve timing / overlap for smooth & fuel efficient power
  • Splash Lubrication System
  • Combined with a cast iron cylinder sleeve for increased wear resistance & long life
  • Butterfly-Type Carburetor & Fuel Shut-Off Valve
  • Allows for more reliable starting, safety and longevity
  • Advanced chamber coating & filter helps reduce gum and varnish
  • Heavy-Duty Recoil Starter w/ Automatic Mechanical De-Compression System
  • Requires less pulling force, for easier and quicker starting
  • Quieter Operation
  • Lightweight noise-reducing materials plus intake/exhaust improvements
  • Maintenance-Friendly
  • Quicker oil changes with dual oil drains/fill and operator-friendly spark plug location
  • Manual Throttle Control
  • Easily set the right amount of power for yoru applications
  • Also Includes: 2:1 Gear Reduction w/ Wet Clutch
  • .825-Gallon Metal Fuel Tank w/ Sediment-Screen
  • EPA & CARB Compliant
  • 3-Year Consumer & 3-Year Commercial Warranty
Specifications
Engine
Engine Series
Honda GX
Engine Style
Horizontal
Engine Type
4-Cycle OHV
Cylinders
1
Cooling System
Air
Dry Weight
35 Lbs
CC
196 CCs
HP
5.5 HP
Net Torque
9.1 Lbs
Cylinder Bore Type
Cast Iron
Bore
2.7 Inches
Compression Ratio
8.5:1
Stroke
2.1 Inches
Systems
Starting System
Recoil Only
Ignition System
Transistorized Magneto
Lubrication
Lubrication
Splash
Oil Filter
No
Oil Capacity
20 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Butterfly
Muffler
Included
Air Cleaner
Dual Element
Fuel Tank Size
.825 Gallons
Fuel Tank
Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
7/8 (22mm) x 2-23/32 Inches
Crankshaft Type
2:1 Gear Reduction
Crankshaft Diameter
7/8"
Crankshaft Length
2-23/32"
Crankshaft End Tapped Size
M8 x 1.25
Crankshaft Keyway Width
7mm Inches
PTO Height
4-11/64 Inches
Overview
Weight
50 Pounds
Made in USA
No
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Length
12.6" Inches
Product Width
14.8" Inches
Product Height
13.6" Inches
Product Specs
+
Specifications
Engine
Engine Series
Honda GX
Engine Style
Horizontal
Engine Type
4-Cycle OHV
Cylinders
1
Cooling System
Air
Dry Weight
35 Lbs
CC
196 CCs
HP
5.5 HP
Net Torque
9.1 Lbs
Cylinder Bore Type
Cast Iron
Bore
2.7 Inches
Compression Ratio
8.5:1
Stroke
2.1 Inches
Systems
Starting System
Recoil Only
Ignition System
Transistorized Magneto
Lubrication
Lubrication
Splash
Oil Filter
No
Oil Capacity
20 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Butterfly
Muffler
Included
Air Cleaner
Dual Element
Fuel Tank Size
.825 Gallons
Fuel Tank
Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
7/8 (22mm) x 2-23/32 Inches
Crankshaft Type
2:1 Gear Reduction
Crankshaft Diameter
7/8"
Crankshaft Length
2-23/32"
Crankshaft End Tapped Size
M8 x 1.25
Crankshaft Keyway Width
7mm Inches
PTO Height
4-11/64 Inches
Overview
Weight
50 Pounds
Made in USA
No
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Length
12.6" Inches
Product Width
14.8" Inches
Product Height
13.6" Inches
