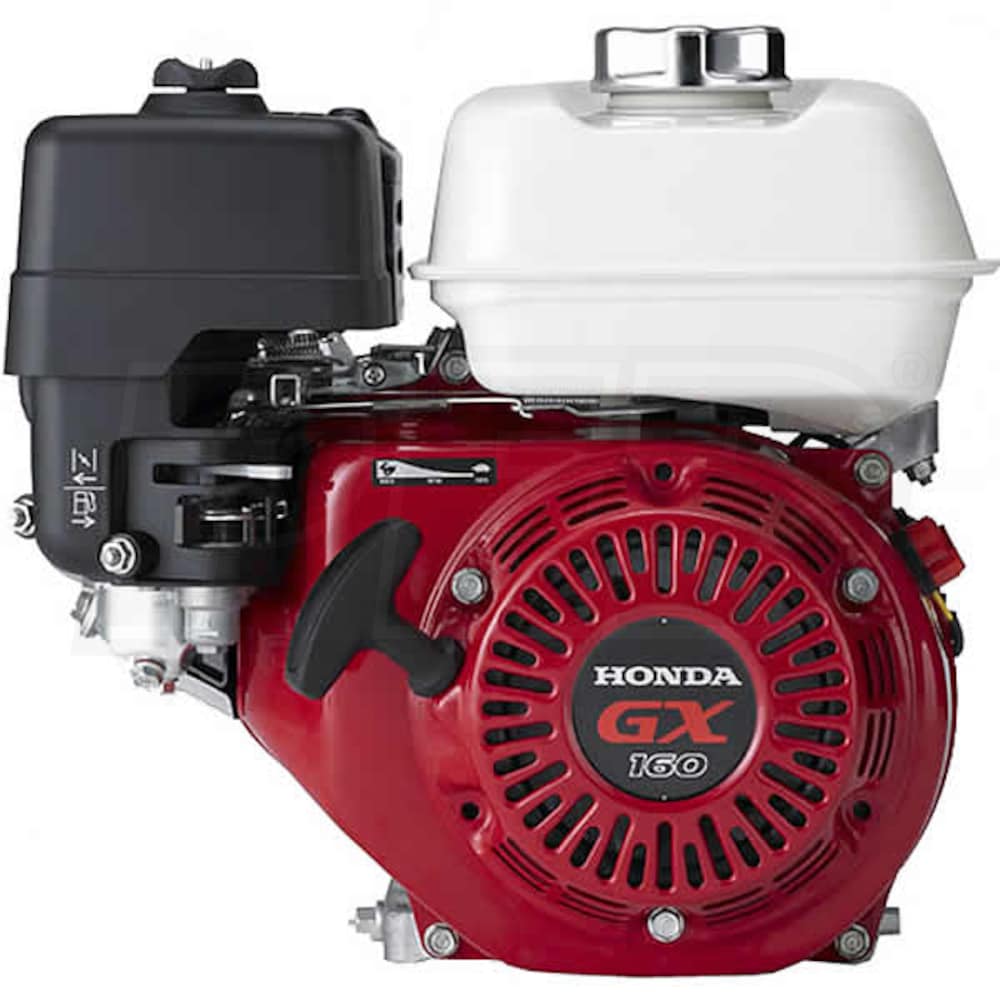

Honda GX160™ 163cc OHV Horizontal Engine, Oil Alert System, Tapered (Generators) 3/4" x 2-53/64" Crankshaft

Honda GX160™ 163cc OHV Horizontal Engine, Oil Alert System, Tapered (Generators) 3/4" x 2-53/64" Crankshaft
Model: GX160UT2VA2
$374.99
Factory-Direct
Ships in 4-7 Business Days
Factory items ship direct from the manufacturer.
Shipping times vary.
Free Shipping &
Tax-Free (Except IL)
Factory-Direct
Ships in 4-7 Business Days
Enter your ZIP Code below to see an estimated arrival time of delivery to your home or business.
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Free Shipping
Free Shipping
  • Product Description
  • Reviews
  • Product Q&A
  • How-To Articles
  • Manuals
Product Description
+

Features
Features
  • Model# GX160UT2VA2 - Oil Alert® System, Tapered 3/4" x 2-53/64" Crankshaft
  • 3-Year Consumer & 3-Year Commercial Warranty
  • For portable generators; Does not fit Honda generators w/ metric shaft
  • Honda GX160™ Series Single Cylinder Air-Cooled 4-Cycle Gas Engine
  • Produces 7.60 ft-lbs of torque @ 2500 RPM - Power levels are stated Net torque
  • Overhead Valve (OHV) Technology
  • Maximizes fuel efficiency while reducing noise and emissions
  • Ball Bearing Supported Precision Camshaft Design
  • Optimized valve timing / overlap for smooth & fuel efficient power
  • Oil Alert® Warning System
  • Crankcase mounted sensor helps prevent a low oil condition
  • Provides a visual warning & stops the engine automatically
  • Splash Lubrication System
  • Combined with a cast iron cylinder sleeve for increased wear resistance & long life
  • Butterfly-Type Carburetor & Fuel Shut-Off Valve
  • Allows for more reliable starting, safety and longevity
  • Advanced chamber coating & filter helps reduce gum and varnish
  • Heavy-Duty Recoil Starter w/ Automatic Mechanical De-Compression System
  • Requires less pulling force, for easier and quicker starting
  • Quieter Operation
  • Lightweight noise-reducing materials plus intake/exhaust improvements
  • Maintenance-Friendly
  • Quicker oil changes with dual oil drains/fill and operator-friendly spark plug location
  • Includes .825-Gallon Metal Fuel Tank w/ Sediment-Screen
  • EPA & CARB Compliant
Specifications
Engine
Engine Series
Honda GX
Engine Style
Horizontal
Cylinders
1
Engine Type
4-Cycle OHV
Cooling System
Air
Dry Weight
33 Lbs
CC
163 CCs
HP
4.8 HP
Net Torque
7.6 Lbs
Cylinder Bore Type
Cast Iron
Bore
2.7 Inches
Stroke
1.8 Inches
Compression Ratio
8.5:1
Systems
Starting System
Recoil Only
Ignition System
Transistorized Magneto
Lubrication
Lubrication
Splash
Oil Filter
No
Oil Capacity
19.5 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Butterfly
Muffler
Included
Air Cleaner
Dual Element
Fuel Tank Size
.825 Gallons
Fuel Tank
Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
3/4 (tapered) x 2-53/64 Inches
Crankshaft Type
Tapered
Crankshaft Diameter
3/4"
Crankshaft Length
2-53/64"
PTO Height
4-11/64 Inches
Overview
Made in USA
No
Product Length
12.2" Inches
Product Width
13.375" Inches
Product Height
12.5" Inches
Consumer Warranty
3 Years
Commercial Warranty
3 Years

Features
Features
  • Model# GX160UT2VA2 - Oil Alert® System, Tapered 3/4" x 2-53/64" Crankshaft
  • 3-Year Consumer & 3-Year Commercial Warranty
  • For portable generators; Does not fit Honda generators w/ metric shaft
  • Honda GX160™ Series Single Cylinder Air-Cooled 4-Cycle Gas Engine
  • Produces 7.60 ft-lbs of torque @ 2500 RPM - Power levels are stated Net torque
  • Overhead Valve (OHV) Technology
  • Maximizes fuel efficiency while reducing noise and emissions
  • Ball Bearing Supported Precision Camshaft Design
  • Optimized valve timing / overlap for smooth & fuel efficient power
  • Oil Alert® Warning System
  • Crankcase mounted sensor helps prevent a low oil condition
  • Provides a visual warning & stops the engine automatically
  • Splash Lubrication System
  • Combined with a cast iron cylinder sleeve for increased wear resistance & long life
  • Butterfly-Type Carburetor & Fuel Shut-Off Valve
  • Allows for more reliable starting, safety and longevity
  • Advanced chamber coating & filter helps reduce gum and varnish
  • Heavy-Duty Recoil Starter w/ Automatic Mechanical De-Compression System
  • Requires less pulling force, for easier and quicker starting
  • Quieter Operation
  • Lightweight noise-reducing materials plus intake/exhaust improvements
  • Maintenance-Friendly
  • Quicker oil changes with dual oil drains/fill and operator-friendly spark plug location
  • Includes .825-Gallon Metal Fuel Tank w/ Sediment-Screen
  • EPA & CARB Compliant
Specifications
Engine
Engine Series
Honda GX
Engine Style
Horizontal
Cylinders
1
Engine Type
4-Cycle OHV
Cooling System
Air
Dry Weight
33 Lbs
CC
163 CCs
HP
4.8 HP
Net Torque
7.6 Lbs
Cylinder Bore Type
Cast Iron
Bore
2.7 Inches
Stroke
1.8 Inches
Compression Ratio
8.5:1
Systems
Starting System
Recoil Only
Ignition System
Transistorized Magneto
Lubrication
Lubrication
Splash
Oil Filter
No
Oil Capacity
19.5 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Butterfly
Muffler
Included
Air Cleaner
Dual Element
Fuel Tank Size
.825 Gallons
Fuel Tank
Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
3/4 (tapered) x 2-53/64 Inches
Crankshaft Type
Tapered
Crankshaft Diameter
3/4"
Crankshaft Length
2-53/64"
PTO Height
4-11/64 Inches
Overview
Made in USA
No
Product Length
12.2" Inches
Product Width
13.375" Inches
Product Height
12.5" Inches
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Specs
+
Specifications
Engine
Engine Series
Honda GX
Engine Style
Horizontal
Cylinders
1
Engine Type
4-Cycle OHV
Cooling System
Air
Dry Weight
33 Lbs
CC
163 CCs
HP
4.8 HP
Net Torque
7.6 Lbs
Cylinder Bore Type
Cast Iron
Bore
2.7 Inches
Stroke
1.8 Inches
Compression Ratio
8.5:1
Systems
Starting System
Recoil Only
Ignition System
Transistorized Magneto
Lubrication
Lubrication
Splash
Oil Filter
No
Oil Capacity
19.5 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Butterfly
Muffler
Included
Air Cleaner
Dual Element
Fuel Tank Size
.825 Gallons
Fuel Tank
Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
3/4 (tapered) x 2-53/64 Inches
Crankshaft Type
Tapered
Crankshaft Diameter
3/4"
Crankshaft Length
2-53/64"
PTO Height
4-11/64 Inches
Overview
Made in USA
No
Product Length
12.2" Inches
Product Width
13.375" Inches
Product Height
12.5" Inches
Consumer Warranty
3 Years
Commercial Warranty
3 Years
