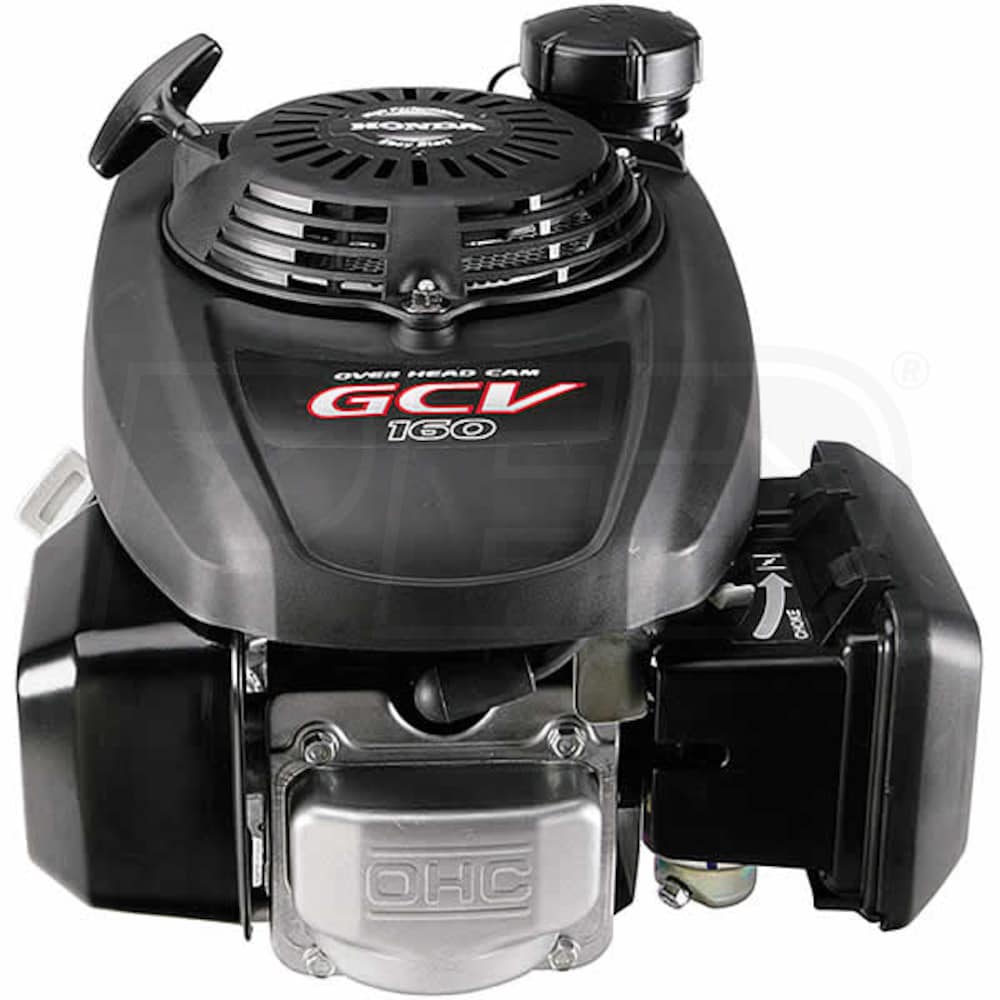

Honda GCV160™ 160cc OHC Vertical Engine, 25mm x 3-5/32" Crankshaft (N3 Type)
Honda GCV160™ 160cc OHC Vertical Engine, 25mm x 3-5/32" Crankshaft (N3 Type)
+
Share This Product
-
Product Description
-
1Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Features
Features
- Model# GCV160LA0S3B - 25mm x 3-5/32" Crankshaft (N3 Type)
- 2-Year Consumer & 90-Day Commercial Warranty
- Vertical crankshaft ideal for walk behind lawn mowers & chipper/vacs
- Honda GCV160™ Series Single Cylinder Air-Cooled 4-Cycle Gas Engine
- Produces 6.9 ft-lbs of torque @ 2500 RPM - Power levels are stated Net torque
- Overhead Cam (OHC) Technology
- Compact, lighter and stronger for efficient, proven performance
- DuaLube™ System & Lifetime Timing Belt Design
- Governor slinger paddles & oil-delivering timing belt for full engine lubrication
- Less weight, better lubrication and quieter operation
- Recoil Starter w/ Automatic Mechanical De-Compression System
- Requires less pulling force, your shoulder will thank you
- Single-Element Air Filter, Cross-Flow Intake Port & Electric Iginition
- Insures easier starting with a reliable spark and fuel flow
- Simple To Maintain & Service
- Easy access oil drain / fill ports & optimized spark plug location
- .25-Gallon Plastic Fuel Tank
- Built-in charcoal canister in gas cap for reduced emmisions
- EPA & CARB Compliant
Specifications
Engine
Engine Series
Honda GCV160
Engine Style
Vertical
Engine Type
4-Cycle OHC
Cylinders
1
Cooling System
Air
Dry Weight
22 Lbs
CC
160 CCs
HP
4.4 HP
Net Torque
6.9 Lbs
Cylinder Bore Type
Aluminum
Bore
2.5 Inches
Stroke
2.0 Inches
Compression Ratio
8.5:1
Systems
Starting System
Recoil Only
Ignition System
Transistorized Magneto
Lubrication
Lubrication
Splash
Oil Filter
No
Oil Capacity
18.5 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Butterfly
Muffler
Included
Air Cleaner
Dry (Paper)
Fuel Tank Size
.25 Gallons
Fuel Tank
Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
25mm x 3-5/32 Inches
Crankshaft Type
Straight
Crankshaft Diameter
25 mm
Crankshaft Length
3-5/32"
Crankshaft End Tapped Size
3/8"-24
Crankshaft Keyway Width
1/4 Inch
Overview
Made in USA
No
Weight
27 Pounds
Product Length
14.4" Inches
Product Width
13" Inches
Product Height
13.7" Inches
Consumer Warranty
2 Years
Commercial Warranty
90 Days
Features
Features
- Model# GCV160LA0S3B - 25mm x 3-5/32" Crankshaft (N3 Type)
- 2-Year Consumer & 90-Day Commercial Warranty
- Vertical crankshaft ideal for walk behind lawn mowers & chipper/vacs
- Honda GCV160™ Series Single Cylinder Air-Cooled 4-Cycle Gas Engine
- Produces 6.9 ft-lbs of torque @ 2500 RPM - Power levels are stated Net torque
- Overhead Cam (OHC) Technology
- Compact, lighter and stronger for efficient, proven performance
- DuaLube™ System & Lifetime Timing Belt Design
- Governor slinger paddles & oil-delivering timing belt for full engine lubrication
- Less weight, better lubrication and quieter operation
- Recoil Starter w/ Automatic Mechanical De-Compression System
- Requires less pulling force, your shoulder will thank you
- Single-Element Air Filter, Cross-Flow Intake Port & Electric Iginition
- Insures easier starting with a reliable spark and fuel flow
- Simple To Maintain & Service
- Easy access oil drain / fill ports & optimized spark plug location
- .25-Gallon Plastic Fuel Tank
- Built-in charcoal canister in gas cap for reduced emmisions
- EPA & CARB Compliant
Specifications
Engine
Engine Series
Honda GCV160
Engine Style
Vertical
Engine Type
4-Cycle OHC
Cylinders
1
Cooling System
Air
Dry Weight
22 Lbs
CC
160 CCs
HP
4.4 HP
Net Torque
6.9 Lbs
Cylinder Bore Type
Aluminum
Bore
2.5 Inches
Stroke
2.0 Inches
Compression Ratio
8.5:1
Systems
Starting System
Recoil Only
Ignition System
Transistorized Magneto
Lubrication
Lubrication
Splash
Oil Filter
No
Oil Capacity
18.5 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Butterfly
Muffler
Included
Air Cleaner
Dry (Paper)
Fuel Tank Size
.25 Gallons
Fuel Tank
Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
25mm x 3-5/32 Inches
Crankshaft Type
Straight
Crankshaft Diameter
25 mm
Crankshaft Length
3-5/32"
Crankshaft End Tapped Size
3/8"-24
Crankshaft Keyway Width
1/4 Inch
Overview
Made in USA
No
Weight
27 Pounds
Product Length
14.4" Inches
Product Width
13" Inches
Product Height
13.7" Inches
Consumer Warranty
2 Years
Commercial Warranty
90 Days
Product Specs
+−
Specifications
Engine
Engine Series
Honda GCV160
Engine Style
Vertical
Engine Type
4-Cycle OHC
Cylinders
1
Cooling System
Air
Dry Weight
22 Lbs
CC
160 CCs
HP
4.4 HP
Net Torque
6.9 Lbs
Cylinder Bore Type
Aluminum
Bore
2.5 Inches
Stroke
2.0 Inches
Compression Ratio
8.5:1
Systems
Starting System
Recoil Only
Ignition System
Transistorized Magneto
Lubrication
Lubrication
Splash
Oil Filter
No
Oil Capacity
18.5 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Butterfly
Muffler
Included
Air Cleaner
Dry (Paper)
Fuel Tank Size
.25 Gallons
Fuel Tank
Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
25mm x 3-5/32 Inches
Crankshaft Type
Straight
Crankshaft Diameter
25 mm
Crankshaft Length
3-5/32"
Crankshaft End Tapped Size
3/8"-24
Crankshaft Keyway Width
1/4 Inch
Overview
Made in USA
No
Weight
27 Pounds
Product Length
14.4" Inches
Product Width
13" Inches
Product Height
13.7" Inches
Consumer Warranty
2 Years
Commercial Warranty
90 Days
