Features
- Multi-Stage Operation
- Goodman electric heat kits are compatible with multi-stage heating controls. This makes it easy to ensure your home receives as much, or as little, heat as it needs.
- Durable Design
- Goodman uses rust-resistant nickel chromium for the HKS's heat elements, improving the unit's longevity and performance.
- Product Compatible With
- Goodman GPH14H Packaged Heat Pumps
- Goodman GPC15M Packaged Heat Pumps
- Goodman GPC14H Packaged Heat Pumps

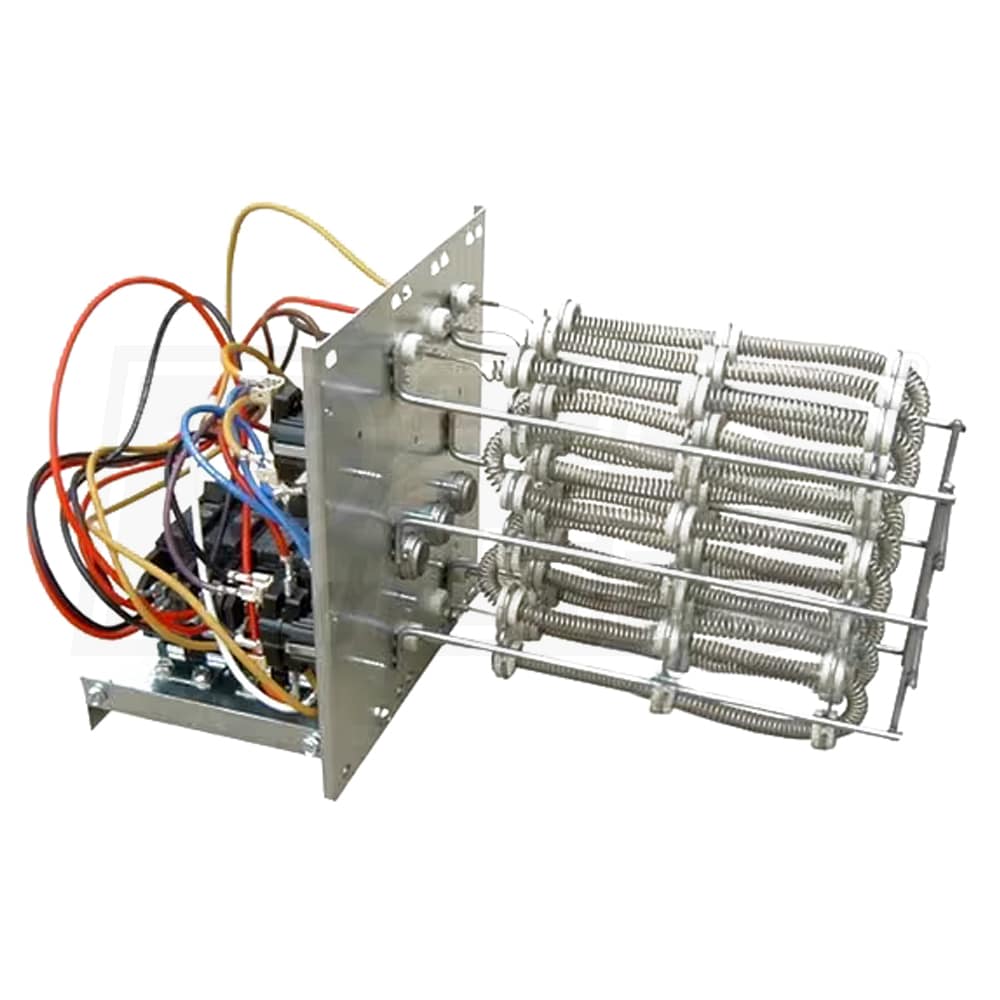

Adding electric heat to your Goodman system is easy with an electric heat kit. The HKR electric heat kit is perfect for homeowners looking to supplement their home's heating capabilities without making a major equipment purchase. The HKR-10 is a 9.6 kW heater capable of supplying 32,757 BTU of heating per hour. It is designed specifically to fit inside Goodman's modular blowers, and features a plug-in wiring harness to keep installation quick and simple. Whether you're in a warm climate and can't justify a furnace or you're just looking for a little extra heat from your heat pump, the HKR-10 electric heat kit has got you covered.
Product Note
Goodman may substitute this product with Tutco model 81-0301-01 Southern Florida building code requires heat kits to have factory-installed circuit breakers.
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
HKR-10
General Information
Type
Heat Strip
Product Line
HKR
Product Category
Forced Air Accessories
UPC
663051565272
Additional Model Numbers
HKR-10, HKR-10
Performance
Electric Heat Capacity
9.6 kW
Electrical Data
Voltage
208/240 Volts
Phase
1
Frequency
60 Hz
Current Draw
41.6 Amps
Factory Installed Circuit Breaker
No
Dimensions
Product Weight
8 Pounds
Shipping Width
15 5/48 Inches
Shipping Height
8 7/24 Inches
Shipping Length
9 17/24 Inches
Shipping Weight
13 Pounds
Certifications
ETL Listed
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Limited Years
Reviews
(13)
Goodman HKR-10 Reviews & Ratings
Customer Rating
4.69
(13 Ratings)
5
(9)
(9)4(4)
(4)3(0)
(0)2(0)
(0)1(0)
(0)
Great!
By William A
Indiana
Purchased 01/17/2024 |
Review Posted 02/08/2024
Great replacement part, easy to install!
William A Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Easy To Use, Price, I39d Buy It Again
Cons:
None
Easier than expected
By Paul C.
Muncie, Indiana
Purchased 02/18/2018 |
Review Posted 02/10/2020
Easy to install--15 minutes and done. Would be nice and a little more economical if it was available without the circuit breaker.
Paul C. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
4/5
Pros:
Easy To Use, Fast, Id Buy It Again
Cons:
Not available without the circuit breaker.
works as advertised
By Mark W.
Glendo, Wyoming
Purchased 11/01/2019 |
Review Posted 11/23/2019
easy install
Mark W. Recommends This
Was this review helpful?
Rating Breakdown
4/5
5/5
5/5
5/5
easy to install
By Thomas S.
Glennville, Georgia
Purchased 07/05/2019 |
Review Posted 08/07/2019
easy to install and works great
Thomas S. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Fairly simple to install.
By Kyla P
CUT BANK, Montana
Purchased 02/19/2019 |
Review Posted 03/14/2019
This is the replacement/updated version of the older HKR-20C that was in my 2007 Goodman furnace. There were a few changes so I had an electrician install this and within an hour I had my furnace running again. I looked at several online places and this was the least expensive as well as the quickest shipper. I am glad I ordered from eComfort.com!!!!
Kyla P Recommends This
Was this review helpful?
Rating Breakdown
4/5
4/5
4/5
5/5
HKR/HKA/HKP Electric Heat Kit
By Robert J
Julian, North Carolina
Purchased 01/14/2019 |
Review Posted 03/11/2019
The Heat Element Kit was well constructed great product
Robert J Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
4/5
5/5
IT's a heat strip. Works as expected
By John N.
Raleigh, North Carolina
Purchased 01/21/2018 |
Review Posted 02/14/2018
My only complaint is the burning smell for the first few weeks of use. I have only had it installed for about a month but it seems to be better now. Every time the defrost cycle would come on and the heat strip would kick in there was a burning smell.
John N. Recommends This
Was this review helpful?
Expert Response
Hi John,
Thanks for your review! The burning smell you are experiencing is mostly likely due to the heating element burning off the dust in your system. This typically goes away after several uses.
We appreciate your feedback and we hope you are enjoying the heat kit. Please don't hesitate to contact us if the problem persists.
Thanks for your review! The burning smell you are experiencing is mostly likely due to the heating element burning off the dust in your system. This typically goes away after several uses.
We appreciate your feedback and we hope you are enjoying the heat kit. Please don't hesitate to contact us if the problem persists.
Dale V.
Power Equipment Expert
Rating Breakdown
4/5
3/5
4/5
5/5
A good replacement
By Laurence H.
Vero Beach, Florida
Purchased 01/18/2018 |
Review Posted 02/08/2018
I ordered this to replace the existing, worn out piece in my Goodman package unit. Installation took 10 minutes, wiring was straightforward. The instructions are totally useless. The device works great, like a new unit should.
The breaker that is supplied is not up to the quality of the original and it was difficult to squeeze the two feeder lines into the single contact.
The breaker that is supplied is not up to the quality of the original and it was difficult to squeeze the two feeder lines into the single contact.
Laurence H. Recommends This
Was this review helpful?
Rating Breakdown
5/5
4/5
4/5
5/5
Heat and A/C unit purchased
By Orlando G.
Tampa, Florida
Purchased 12/23/2017 |
Review Posted 02/07/2018
Bought matching A/C unit and needed heat strip everything worked out as planned. Great customer service.
Orlando G. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Easy install and reasonably priced
By Rob B.
Mardela Springs, Maryland
Purchased 12/30/2017 |
Review Posted 01/23/2018
This product was very to install and retrofit into a 17 yr old air handler. After ordering it was fast shipping.
Rob B. Recommends This
Was this review helpful?
Rating Breakdown
4/5
4/5
4/5
4/5
Pros:
Easy To Use, Price, Fast, I'd Buy It Again
